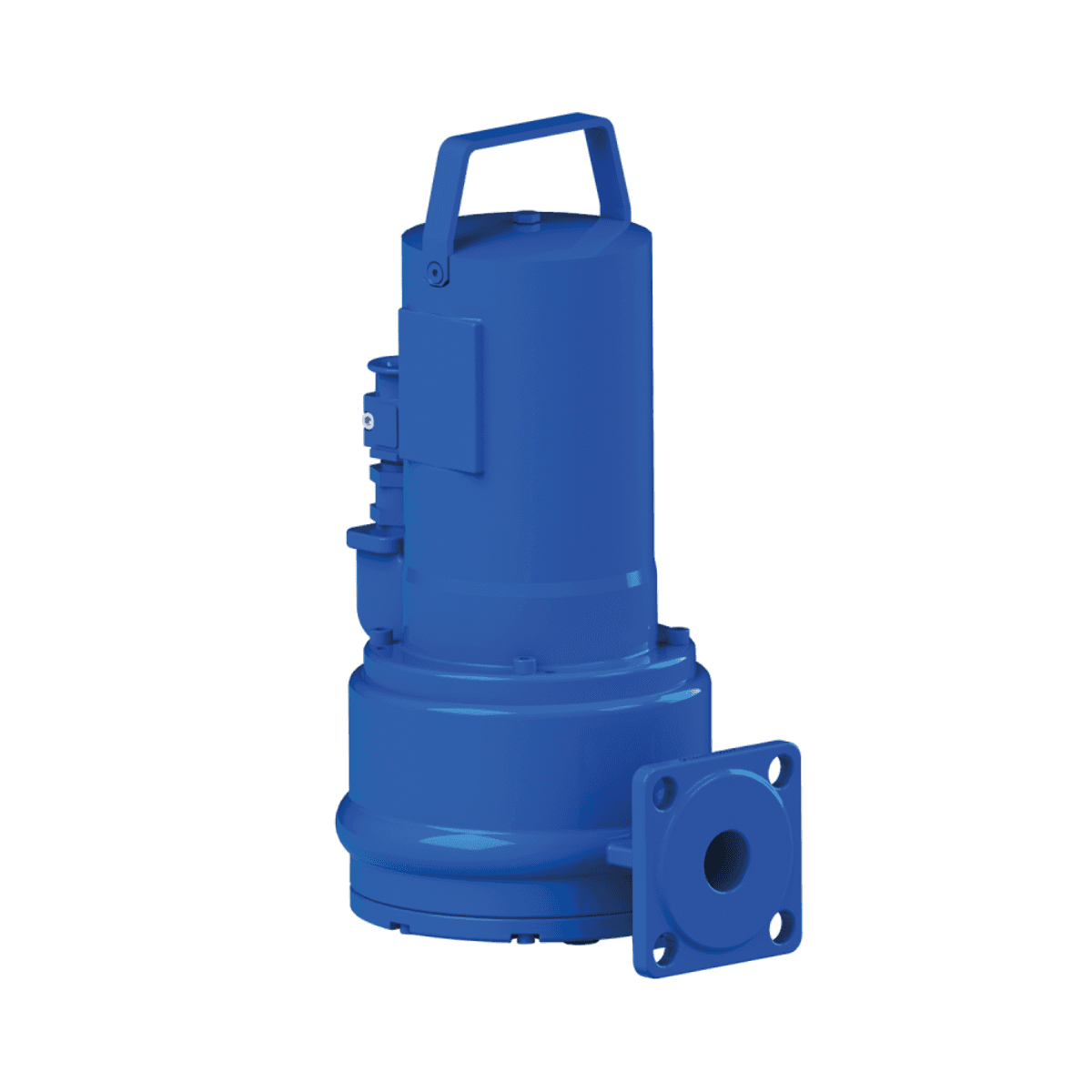

SFA Sanipump ZFS 71.3 EX T Three-Phase Submersible Pump

The SFA Sanipump ZFS 71.3 EX T submersible pump is designed for professional applications that require the evacuation of wastewater with a high solid load to significant heights. Thanks to its PRO X K3 blade impeller and ATEX certification, this pump offers safety, performance, and durability even in industrial or public environments with intensive use.

This three-phase version is equipped with a 3200 W (P2) motor, capable of reaching a maximum head height of 35 meters and a flow rate of up to 17 m³/h. It is especially suitable for long vertical evacuations, deep pumping stations, or technical installations that require maximum reliability in wastewater management.

The pump is entirely made of GG-20 cast iron and features a stainless steel shaft. The double mechanical seal in carbon/ceramic ensures optimal tightness even under continuous immersion conditions (S1 mode), as well as in intermittent operation (S3 40%). Its 2800 rpm design allows for efficient solid shredding without compromising the durability of the components.

The system is completed with a 10-meter power cable (S1BN8-F, 1.5 mm² section), suitable for immersion up to 5 meters deep. It is compatible with Sanifos 1600, 2100, and 3100 prefabricated pumping stations, allowing for direct integration into SFA's preconfigured evacuation solutions.

Components and Materials

• Pump body, motor, base, and impeller: GG-20 cast iron
• Shaft: Stainless steel
• Tightness: Double mechanical seal carbon/ceramic

Electrical Specifications

• Power supply voltage: 400 V (three-phase)
• Frequency: 50-60 Hz
• Absorbed power (P1): 3900 W
• Useful power (P2): 3200 W
• Speed: 2800 rpm
• Electrical class: I
• Motor insulation class: F
• Protection index: IP68
• Operating mode: S1 (continuous) / S3 40% (intermittent)

Hydraulic Data

• Maximum head height (HMT): 35 m
• Maximum flow rate: 17 m³/h
• Discharge diameter: DN 50
• Maximum pumped liquid temperature: 70 °C
• Maximum immersion depth: 5 m

Installation and Wiring

• Power cable: 10 m
• Cable type: S1BN8-F
• Cable section: 1.5 mm²
• Gross weight: 42 kg

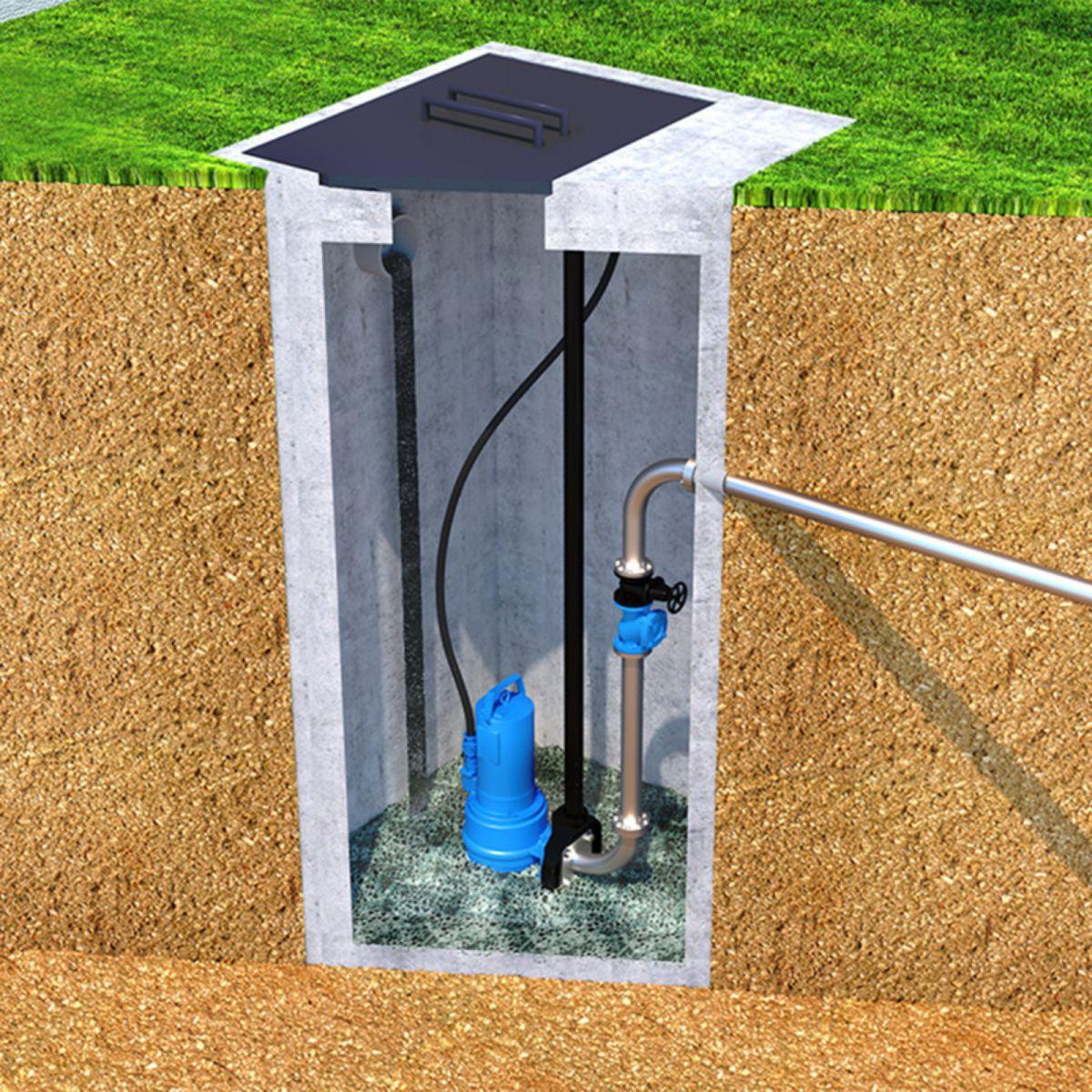

• Recommended installation: In sump, pit, or Sanifos station

Main Advantages

• High discharge height: up to 35 meters
• PRO X K3 blade impeller for solids-laden water
• ATEX certification for maximum safety
• Robust cast iron construction with stainless steel shaft
• Full compatibility with Sanifos pumping solutions

The SFA Sanipump ZFS 71.3 EX T pump combines power, reliability, and safety for professional wastewater evacuation applications. Ideal for public, industrial, and collective installations where continuous performance and high lift height are required.
