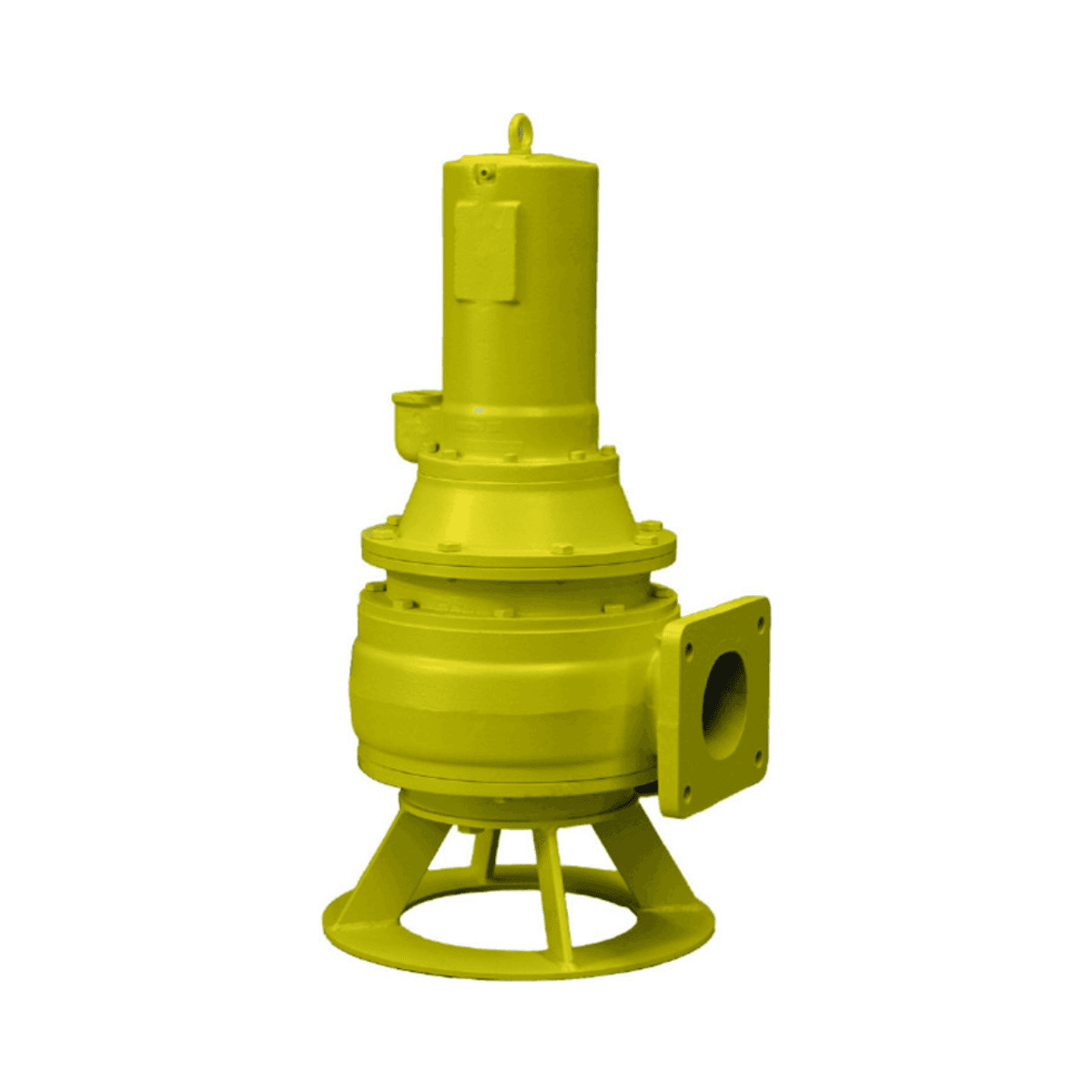

SFA Sanipump ZF 80.1 EX T Three-Phase Submersible Pump

The SFA Sanipump ZF 80.1 EX T three-phase submersible pump is a high-performance, robust, and safe solution for the evacuation of wastewater and rainwater with a high solid load. Made of GG-25 cast iron and equipped with a single-channel impeller, it allows for solid passage of up to 80 mm, making it an essential tool for industrial installations, urban collectors, or applications in complex environments with aggressive fluids.

This model is ATEX certified, ensuring its safe use in potentially explosive atmospheres. The presence of a double mechanical seal (carbon/ceramic) provides superior protection to the motor against water infiltration, even in demanding and continuous working conditions.

The Sanipump ZF 80.1 EX T can be installed in pits, tanks, or wells, offering great versatility for mounting in new or existing installations. This version offers a maximum flow rate of 80 m³/h and a head of up to 8 meters, ideal for sewage networks, pumping stations, or industrial infrastructures.

The three-phase motor of this pump operates at 400 V, with an absorbed power of 3200 W and a useful power output of 2500 W. It operates at a low speed (1450 rpm), which minimizes component wear and improves long-term reliability. The pump is prepared for continuous submerged service (S1) and is also suitable for intermittent operation (S3 40%), which expands its operational adaptability.

Includes a 10-meter long power cable, type S1BN8-F, with a section of 1.5 mm², and is designed for an immersion depth of up to 5 meters. Its compact and balanced design, with a gross weight of 84 kg, facilitates professional handling and installation in demanding pumping systems.

Components and Materials

• Pump and Motor Body: GG-25 Cast Iron
• Pump Foot: GG-25
• Impeller: Single-channel in GG-25
• Shaft: Stainless Steel
• Sealing: Double mechanical seal carbon/ceramic

Electrical Features

• Supply Voltage: 400 V (three-phase)
• Frequency: 50-60 Hz
• Absorbed Power (P1): 3200 W
• Output Power (P2): 2500 W
• Motor Speed: 1450 rpm
• Electrical Class: I
• Motor Insulation Class: F
• Service: S1 (continuous use), S3 40% (intermittent)

Hydraulic Data

• Maximum Head (HMT): 8 m
• Maximum Flow Rate: 80 m³/h
• Discharge Diameter: DN 100
• Solid Passage: up to 80 mm
• Maximum Pumped Liquid Temperature: 70 °C

Installation and Connection

• Cable Length: 10 m
• Cable Type: S1BN8-F
• Cable Section: 1.5 mm²
• Maximum Immersion Depth: 5 m
• Recommended Installation: in pit or well

Main Advantages

• ATEX certification for use in potentially explosive environments
• Double mechanical seal for maximum motor protection
• Single-channel impeller and free solid passage up to 80 mm
• Industrial design in cast iron for long durability
• Power and reliability for demanding evacuation applications

The SFA Sanipump ZF 80.1 EX T pump is designed to deliver maximum performance in demanding conditions, combining ATEX safety, high flow rate, and mechanical resistance. A professional and efficient solution for projects where reliability and safety are priorities.
