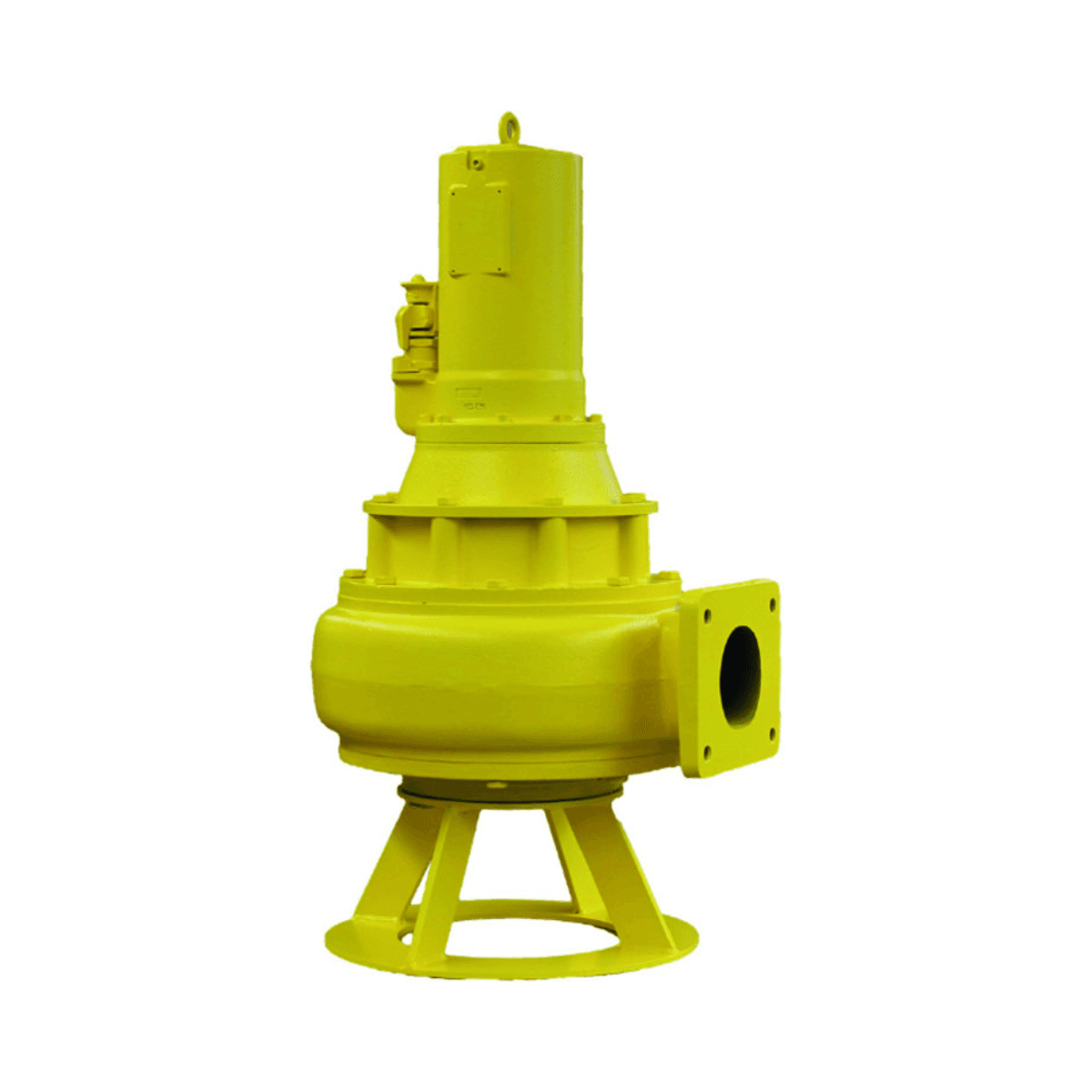

SFA Sanipump ZF 110 EX T Three-Phase Submersible Pump

The SFA Sanipump ZF 110 EX T submersible pump is the most powerful option within the ZF 100 EX series, designed for high-flow and high-head evacuations in extreme conditions. This model is especially suitable for industrial applications, municipal wastewater networks, treatment stations, or rainwater collection areas with suspended solids.

Thanks to its three-phase motor of 7500 W (P2), the Sanipump ZF 110 EX T reaches a maximum head of 22 meters and evacuates up to 165 m³/h, with a free passage of solids up to 100 mm thanks to its single-channel impeller in GG-25 cast iron. This combination of flow, pressure, and free passage makes it suitable for liquids with high solid content without the risk of blockages.

The pump features a double mechanical seal in carbon/ceramic to ensure motor tightness even under intensive use and is prepared for continuous (S1) and intermittent (S3 40%) operation. The motor runs at 1450 rpm and is fully protected by a GG-25 cast iron housing with an IP68 protection rating, suitable for submerged use up to 5 meters deep.

Like the rest of the range, this model is ATEX certified, allowing its use in areas with potentially explosive atmospheres. The combination of power, structural robustness, and advanced technical design makes this pump a reliable and durable solution for critical installations.

Components and Materials

• Pump body, motor, base, and impeller: GG-25 cast iron
• Shaft: Stainless steel
• Sealing: Double mechanical seal carbon/ceramic

Electrical Specifications

• Power supply voltage: 400 V (three-phase)
• Frequency: 50-60 Hz
• Absorbed power (P1): 8700 W
• Useful power (P2): 7500 W
• Speed: 1450 rpm
• Electrical class: I
• Motor insulation class: F
• Protection rating: IP68
• Operating mode: S1 (continuous) / S3 40% (intermittent)

Hydraulic Data

• Maximum head (HMT): 22 m
• Maximum flow rate: 165 m³/h
• Discharge diameter: DN 100
• Admitted solid passage: up to 100 mm
• Maximum pumped liquid temperature: 70 °C
• Maximum immersion depth: 5 m

Installation and Wiring

• Power cable: 10 m
• Cable type: S1BN8-F
• Cable section: 1.5 mm²
• Gross weight: 155 kg
• Recommended installation: In a chamber, well, or pumping station

Main Advantages

• Maximum flow and head within the Sanipump ZF 100 EX range
• Single-channel impeller with free passage of solids up to 100 mm
• ATEX certification for explosion-risk areas
• Full construction in GG-25 cast iron for maximum resistance
• Suitable for critical installations with high evacuation demand

The SFA Sanipump ZF 110 EX T pump is the ultimate solution for high-volume technical evacuations. Its reliability, power, and robustness make it the preferred choice for projects where safety and performance cannot be compromised.
