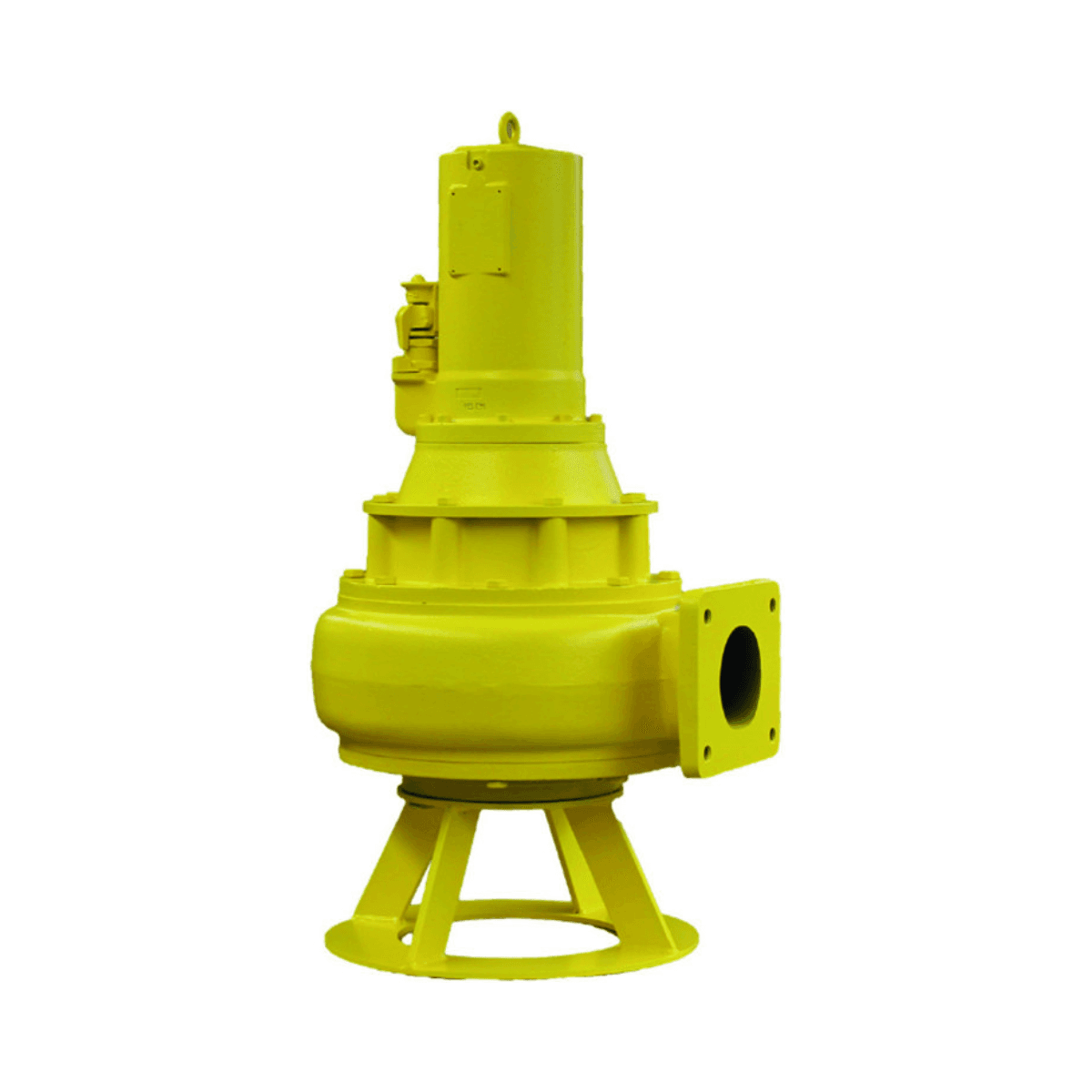

SFA Sanipump ZF 105 EX T Three-Phase Submersible Pump

The SFA Sanipump ZF 105 EX T submersible pump is designed for the evacuation of wastewater and rainwater in environments that demand high hydraulic capacity and robust construction. With a single-channel impeller, 100 mm solid passage, and ATEX certification, this pump is perfect for pumping stations, pits, or industrial sumps.

Thanks to its 5500 W (P2) three-phase motor, the ZF 105 EX T can reach a maximum head of 18 meters and a flow rate of up to 160 m³/h. This model is especially suitable for installations that require evacuating large volumes of water with large solids, such as sewage networks, industrial areas, treatment stations, or rainwater evacuations from large surfaces.

Its design includes a double mechanical seal in carbon/ceramic, which effectively protects the motor against water ingress, even in continuous operation conditions (S1) or intensive intermittent cycles (S3 40%). The pump operates at 1450 rpm, reducing component wear and ensuring a longer system lifespan.

Entirely made of GG-25 cast iron, both in the pump body and the impeller, motor, and base, this pump stands out for its mechanical resistance, stability, and reliability even in the most demanding conditions. The stainless steel shaft provides greater durability against corrosion. It includes a 10-meter power cable type S1BN8-F, prepared for submerged installations up to 5 meters.

Components and Materials

• Pump body, motor, base, and impeller: GG-25 Cast Iron
• Shaft: Stainless Steel
• Sealing: Double mechanical seal carbon/ceramic

Electrical Specifications

• Power supply voltage: 400 V (three-phase)
• Frequency: 50-60 Hz
• Absorbed power (P1): 6300 W
• Useful power (P2): 5500 W
• Speed: 1450 rpm
• Electrical class: I
• Motor insulation class: F
• Protection rating: IP68
• Operating mode: S1 (continuous) / S3 40% (intermittent)

Hydraulic Data

• Maximum head (HMT): 18 m
• Maximum flow rate: 160 m³/h
• Discharge diameter: DN 100
• Admitted solid passage: up to 100 mm
• Maximum pumped liquid temperature: 70 °C
• Maximum immersion depth: 5 m

Installation and Wiring

• Power cable: 10 m
• Cable type: S1BN8-F
• Cable section: 1.5 mm²
• Recommended installation: In pit or well
• Gross weight: 146 kg

Main Advantages

• High hydraulic capacity with a lift height up to 18 m
• ATEX certification for potentially explosive environments
• Robust design resistant to corrosion and abrasion
• Single-channel impeller with free solid passage up to 100 mm
• Ideal for wastewater and rainwater evacuation with high load

The SFA Sanipump ZF 105 EX T submersible pump offers an ideal combination of power, safety, and durability for applications requiring reliable and continuous evacuation of large volumes of loaded water. An essential tool for high-performance technical installations.
