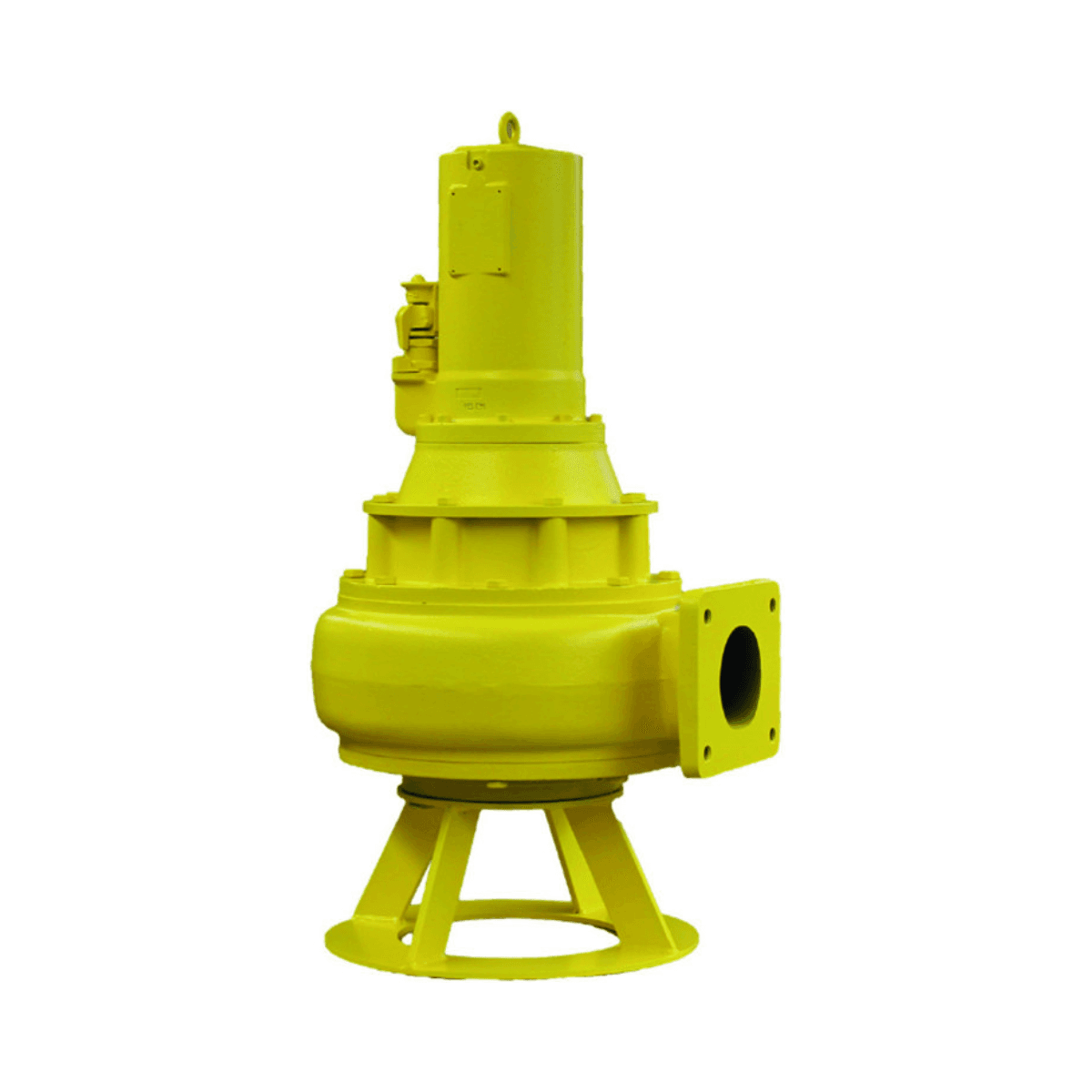

SFA Sanipump ZF 100 EX T Three-Phase Submersible Pump

The SFA Sanipump ZF 100 EX T submersible pump is a professional solution for the evacuation of wastewater and rainwater with large solids, specifically designed for use in pumping stations, sumps, or wells in industrial, municipal, or commercial installations. This three-phase version is part of SFA's ATEX range, ensuring safe operation in potentially explosive or demanding environments.

Equipped with a GG-25 cast iron single-channel impeller and a solid passage of up to 100 mm, the ZF 100 EX T can evacuate a flow rate of up to 120 m³/h and reach a maximum head height of 10 meters. This pump allows efficient handling of liquids with a high solid load without the risk of blockages, making it ideal for sewage or rainwater networks in urban or industrial installations.

The 3300 W three-phase motor operates at 1450 rpm and is protected by a double sealing system composed of a carbon/ceramic mechanical seal, preventing water infiltration into the motor. Additionally, it features IP68 protection and is designed for continuous immersion operation (S1 service) and intensive intermittent operation (S3 40%).

The pump can be installed directly at the bottom of the well or sump, thanks to its robust design and resistant materials. It includes a 10-meter power cable type S1BN8-F, with a section of 1.5 mm². The entire assembly has been developed to offer maximum operational reliability, long service life, and low maintenance in demanding conditions.

Components and Materials

• Pump body, motor, base, and impeller: GG-25 cast iron
• Shaft: Stainless steel
• Sealing: Double carbon/ceramic mechanical seal

Electrical Specifications

• Power supply voltage: 400 V (three-phase)
• Frequency: 50-60 Hz
• Absorbed power (P1): 4400 W
• Useful power (P2): 3300 W
• Speed: 1450 rpm
• Electrical class: I
• Motor insulation class: F
• Protection rating: IP68
• Operating mode: S1 (continuous) / S3 40% (intermittent)

Hydraulic Data

• Maximum head height (HMT): 10 m
• Maximum flow rate: 120 m³/h
• Discharge diameter: DN 100
• Admitted solid passage: up to 100 mm
• Maximum pumped liquid temperature: 70 °C
• Maximum immersion depth: 5 m

Installation and Wiring

• Power cable: 10 m
• Cable type: S1BN8-F
• Cable section: 1.5 mm²
• Recommended installation: in sump or well

Main Advantages

• ATEX certification for explosion-risk environments
• Single-channel impeller with large solid passage (100 mm)
• Double mechanical seal for maximum motor protection
• Robust cast iron construction, suitable for intensive work
• Ideal for wastewater, rainwater, or large solid content

The SFA Sanipump ZF 100 EX T pump offers power, reliability, and safety for complex evacuations in demanding technical infrastructures and sanitation networks. A high-performance professional solution for critical installations.
