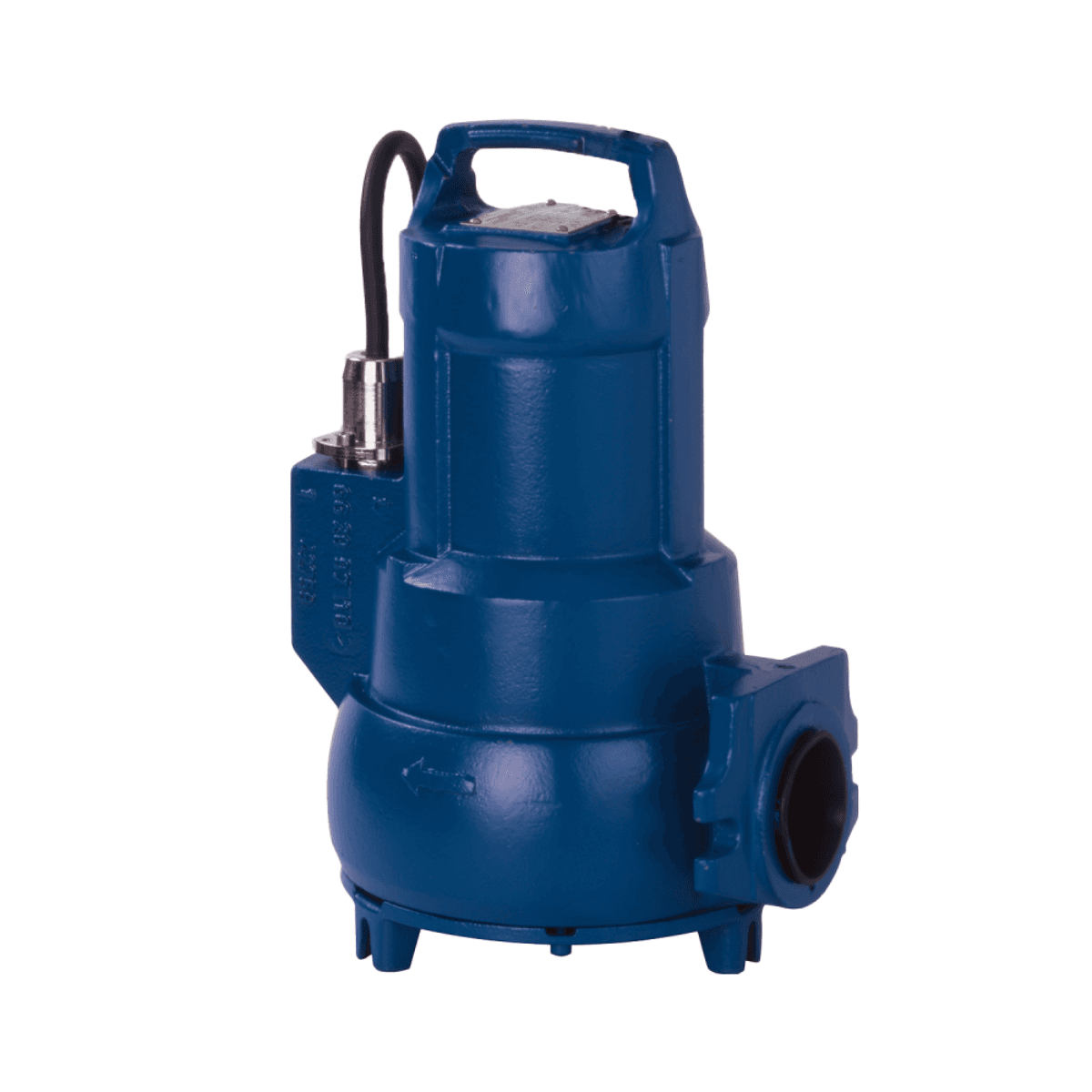

SFA Sanipump VX 50.4 S Submersible Pump

The submersible pump SFA Sanipump VX 50.4 S, reference AP0010, is an electric pump designed for fixed installation to evacuate wastewater or rainwater in technical, domestic, or commercial applications. Made of cast iron, this single-phase version is equipped with a vortex-type impeller, allowing for efficient and safe operation with water loaded with solids.

The pump can reach a flow rate of up to 29 m³/h and a maximum head of 16 m. The vortex-type impeller allows the passage of solid particles up to 41 mm, making it ideal for evacuating water with leaves, sand, paper, or organic waste. It is designed for continuous use (S1) and can be submerged up to 10 meters deep.

This version does not include a level switch, allowing integration with external control panels. It is perfect for pumping stations like Sanifos 1600, 2100, or 3100, or for custom installations requiring an automated activation system.

All its components are designed to withstand demanding conditions: body, motor, and impeller in EN-GJL-250 cast iron, stainless steel shaft, and sealing system with a shaft seal on the motor side and SIC/Al₂O₃ mechanical seal on the hydraulic side. The power cable is 10 meters long.

Components and Materials

• Pump body, impeller, motor, and foot: EN-GJL-250 cast iron
• Shaft: Stainless steel
• Motor side sealing: Shaft seal
• Fluid side sealing: SIC/Al₂O₃ mechanical seal

Electrical Specifications

• Power supply voltage: 220-240 V
• Frequency: 50 Hz
• Absorbed power (P1): 1800 W
• Useful power (P2): 1100 W
• Rotation speed: 2800 rpm
• Electrical class: I
• Insulation class: F
• Operating mode: S1 (continuous)
• Maximum number of starts per hour: 15

Hydraulic Data

• Maximum head: 16 m
• Maximum flow rate: 29 m³/h
• Discharge diameter: DN 50
• Free passage of solids: up to 41 mm
• Maximum liquid temperature: 40 °C (intermittent use 5 minutes)

Installation and Logistics

• Maximum immersion depth: 10 m
• Power cable: 10 m (H07 RN8-F, 3x1 mm²)
• Package weight: 23 kg
• EAN code: 3308815090221
• Reference: AP0010

Main Advantages

• Highly durable pump with cast iron body
• Vortex impeller for water with suspended solids
• Fixed installation without float, for systems with external control
• Continuous operation for demanding uses
• Ideal for Sanifos pumping stations or technical pits

The SFA Sanipump VX 50.4 S submersible pump offers a powerful, reliable solution compatible with professional installations requiring high flow and solid evacuation, easily integrating into advanced control systems.
