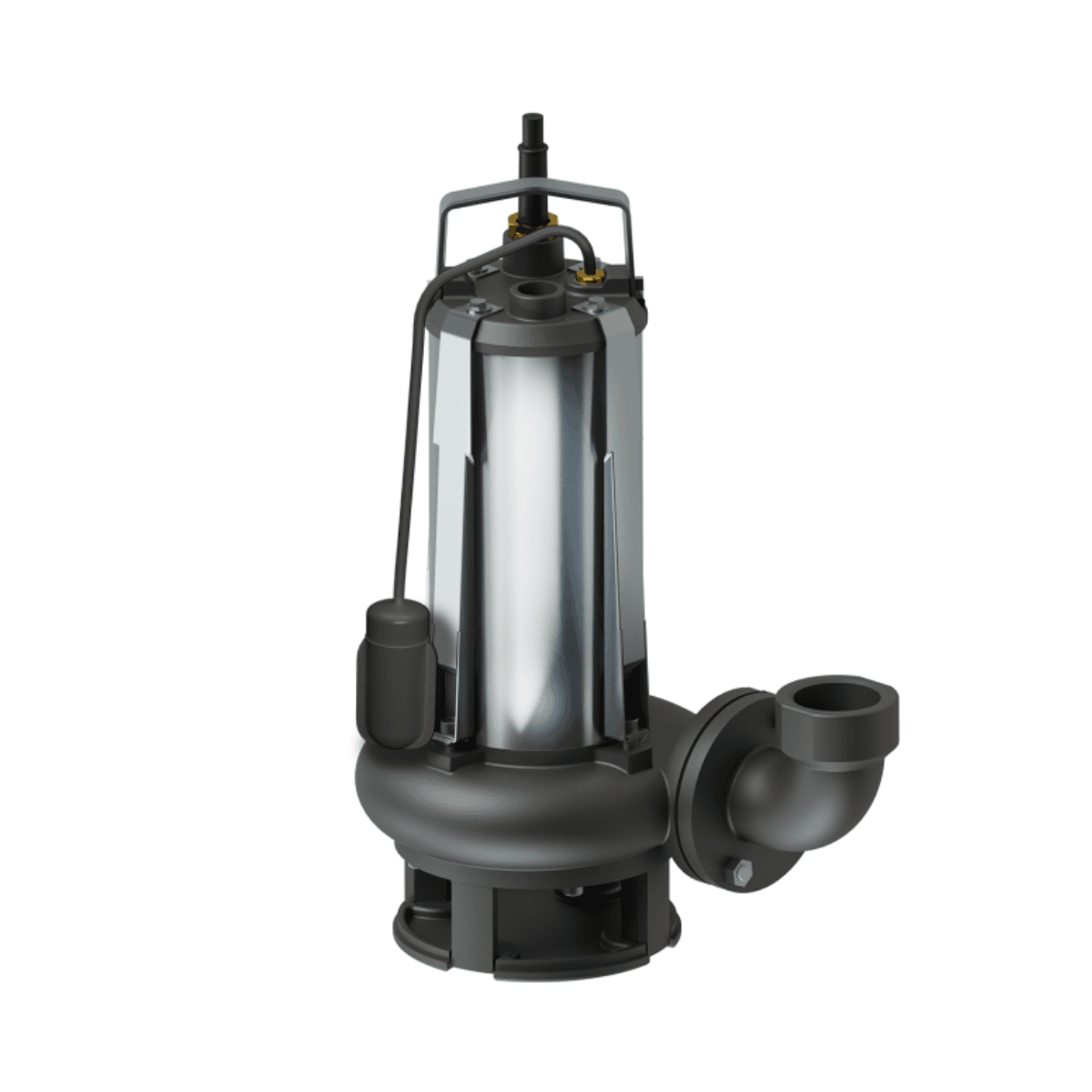

SFA Sanipump SLD 700 SA Submersible Pump

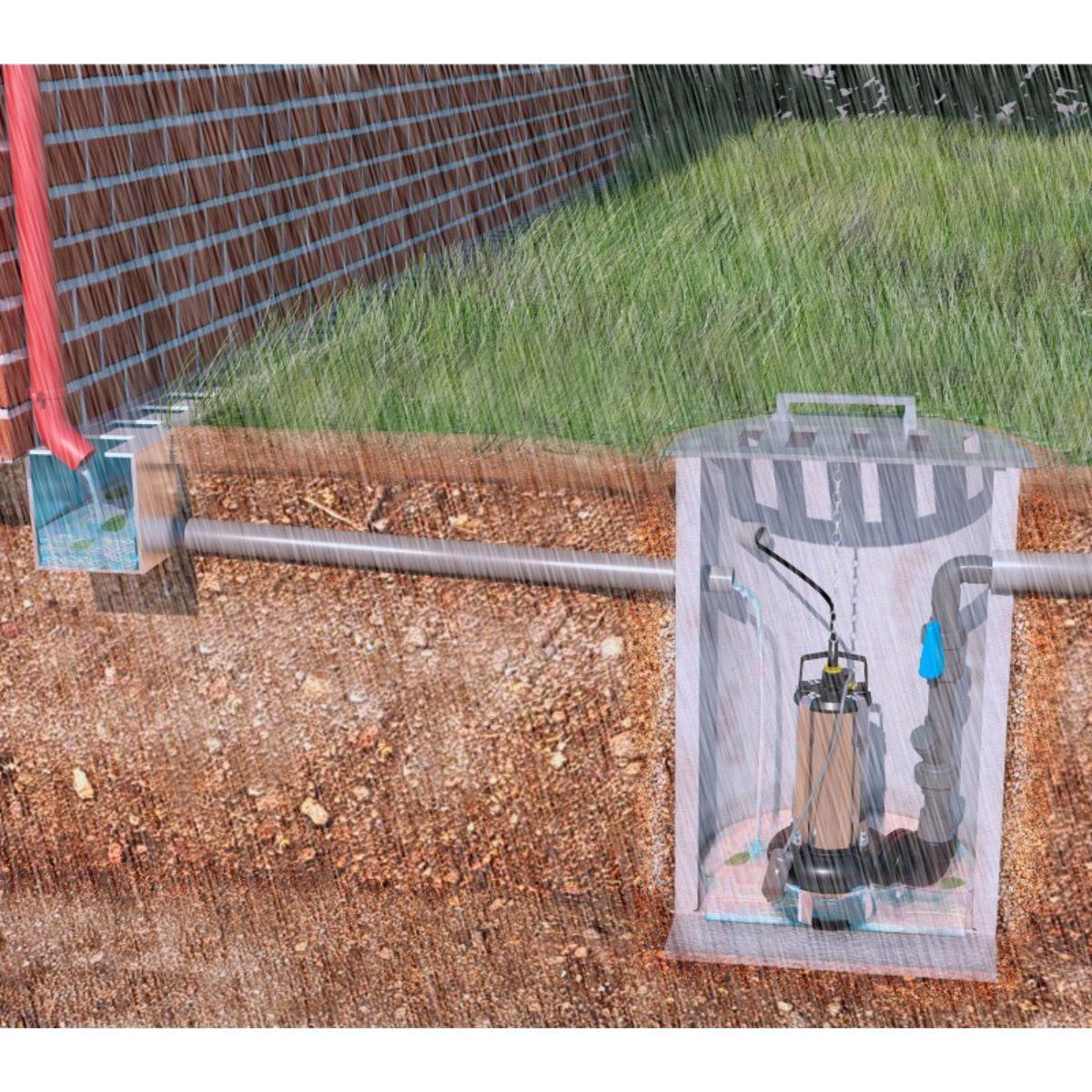

The Sanipump SLD 700 SA from SFA is a high-flow, single-phase submersible pump designed to automatically evacuate rainwater, greywater, or slightly loaded water from wells, tanks, or technical stations. Unlike the S version, this variant incorporates a level switch, allowing for fully automatic operation without the need for an external control panel.

Its two-channel impeller and free passage of solids up to 50 mm make it a reliable option for evacuating water from collection areas, laundries, garages, gutters, terraces, or technical rooms, without the risk of blockage. It reaches a maximum flow rate of 48 m³/h and a head height of up to 14 meters, with an immersion capacity of up to 20 meters.

The pump body, motor, and impeller are made of GG-20 cast iron, with a foot in EN-GJL-200 and a stainless steel shaft. The carbon/ceramic/NBR mechanical seal ensures tightness and resistance to prolonged use. It is equipped with a 1100 W (P2) motor, IP68 protected and prepared for continuous service (S1).

It comes with a 10-meter power cable, facilitating installation in deep wells or tanks. The level switch ensures automatic start and stop, activating the pump when the corresponding water level is detected, without the need for user intervention or external system installation.

Components and Materials

• Pump body, motor, foot, and impeller: GG-20 cast iron
• Foot: EN-GJL-200
• Shaft: Stainless steel
• Tightness: Carbon/ceramic/NBR mechanical seal

Electrical Specifications

• Power supply voltage: 230 V (single-phase)
• Frequency: 50-60 Hz
• Absorbed power (P1): 2000 W
• Useful power (P2): 1100 W
• Rotation speed: 2800 rpm
• Electrical class: I
• Motor insulation class: F
• Protection index: IP68

Hydraulic Data

• Maximum head height: 14 m
• Maximum flow rate: 48 m³/h
• Discharge diameter: DN 50 (2 inches)
• Solid passage: up to 50 mm
• Maximum pumped liquid temperature: 70 °C
• Maximum immersion depth: 20 m

Installation and Logistics

• Power cable: 10 m
• Detection type: Integrated level switch
• Package weight: 32.8 kg
• EAN code: 3308815083988
• Reference: 009PUMPSLDMA

Main Advantages

• Pump with automatic detection, ready to use without an external control panel
• Two-channel impeller with large free passage of solids (50 mm)
• Designed for continuous use in rainwater or greywater evacuation
• Corrosion and wear-resistant materials
• Easy installation in wells, manholes, or technical stations

The Sanipump SLD 700 SA is a professional, compact, and reliable submersible pump, ideal for automatic evacuations in domestic, commercial, or technical installations. Its integrated detection and high flow rate make it a safe and efficient choice for demanding applications.
