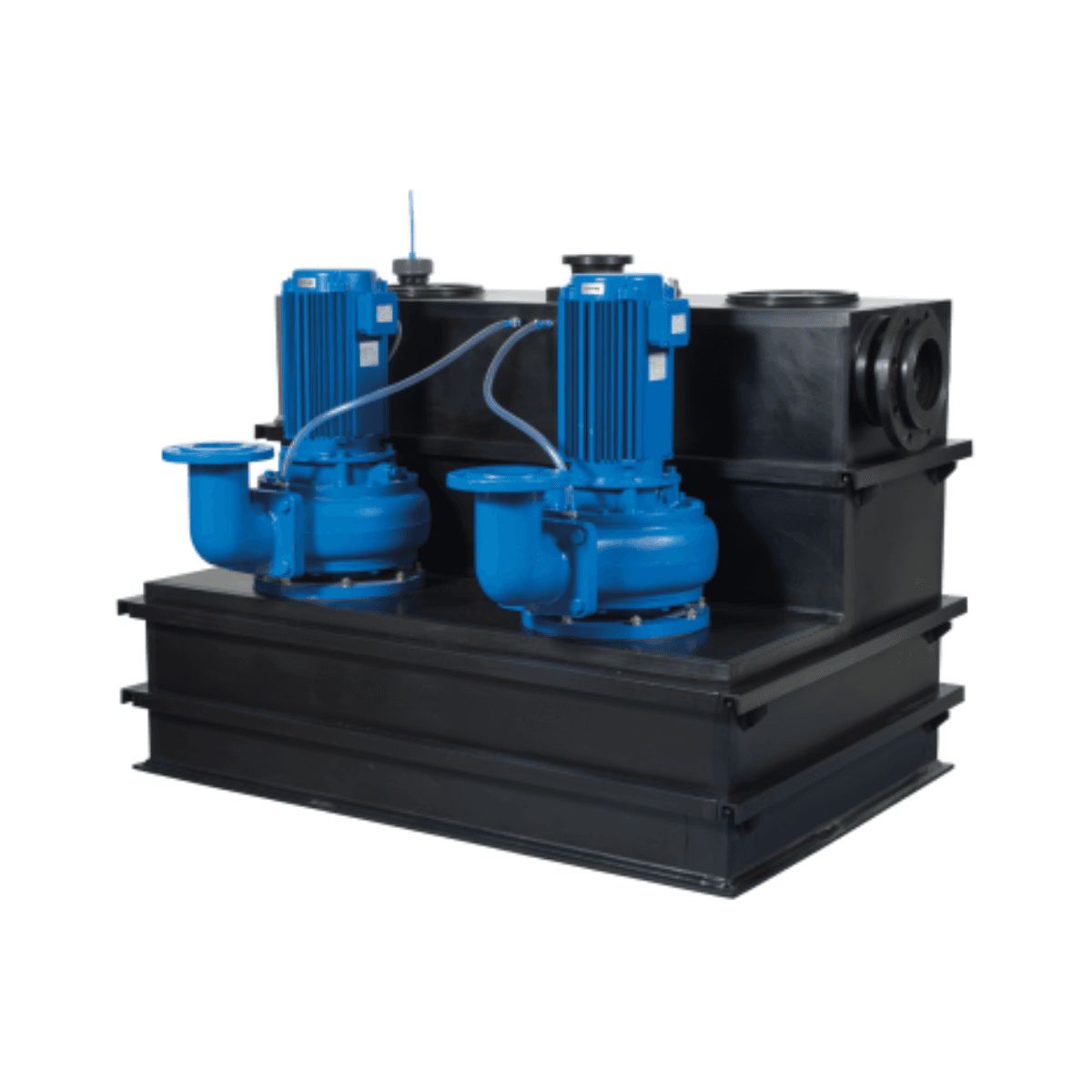

Three-Phase Pumping Station SFA Sanicubic 2 SC5.5 T

The SFA Sanicubic 2 SC5.5 T pumping station is designed for installations that require powerful and continuous evacuation of large volumes of wastewater. Equipped with two three-phase motors of 5500 W (P2), this unit allows evacuation of up to 160 m³/h, reaching manometric heights of up to 18 meters, making it an ideal solution for large collective, public, or commercial installations.

The pumps, made of GG-20 cast iron, incorporate single-channel impellers with a free passage of solids up to 100 mm, ensuring effective treatment of wastewater with coarse particles. The motors work alternately to reduce wear but can also operate simultaneously if hydraulic demand requires it.

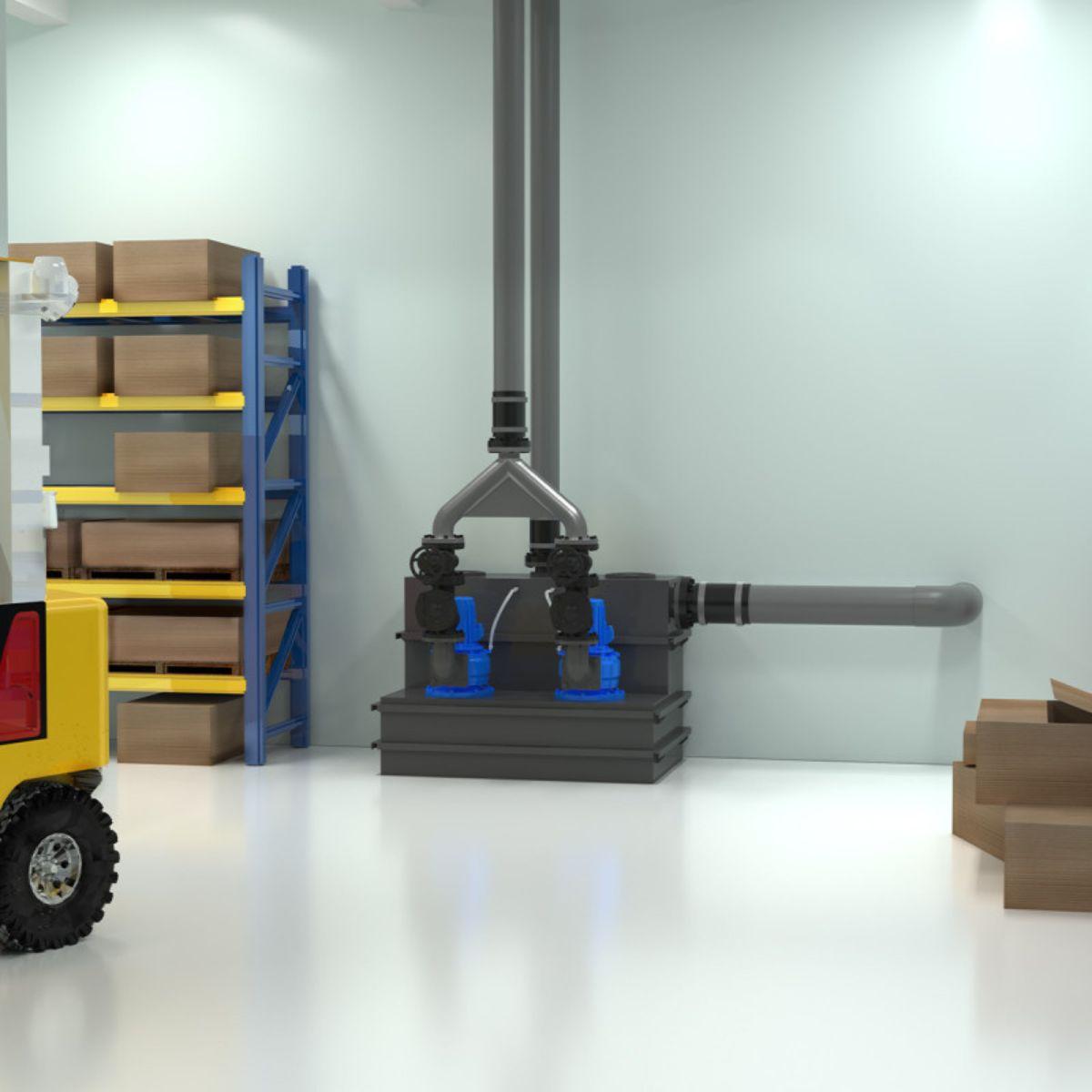

The 1000-liter tank is made of high-density polyethylene (PE HD) and has a useful volume of 500 L. The DN 150 inlet allows connection of all the building's downpipes, while evacuation and ventilation are carried out through DN 100 connections. The system is installed directly on the ground, without the need for excavation, facilitating its integration into new projects or renovations.

The start and stop of the pumps are controlled by a pneumatic pressure switch, ensuring precise operation without unnecessary accumulation. The included ZPS 2 electronic panel allows configuration of levels, recording of operating cycles, and activation of visual and acoustic alarms in case of failure, improving operational safety.

Included Components

• 1000 L tank in PE HD (useful volume: 500 L)
• 2 three-phase pumps of 5500 W with single-channel impeller
• DN 150 inlet and DN 100 pressure evacuation
• DN 100 ventilation and detection by pneumatic pressure switch
• External control panel ZPS 2 with integrated alarm system
• Non-return valve and connection fittings included

Technical Specifications

• Motor type: Three-phase (400 V, 50-60 Hz)
• Absorbed power (P1): 6300 W (per pump)
• Useful power (P2): 5500 W (per pump)
• Operating mode: S3 25%
• Protection index: IP68
• Maximum manometric height (HMT): 18 m
• Maximum flow rate: 160 m³/h
• Solid passage: up to 100 mm
• Maximum pumped liquid temperature: 55 °C

Connections and Installation

• Inlet: DN 150
• Evacuation: DN 100
• Ventilation: DN 100
• Detection type: Pneumatic pressure switch
• Gross weight: 400 kg

Main Advantages

• Double high-flow pump with solid passage up to 100 mm
• Robust design suitable for intensive use in public or commercial installations
• Large capacity tank and automated control system
• ZPS 2 control panel with sound and visual alarm
• Direct floor mounting without the need for civil works

Compatible Optional Components

• DIN 110 cut-off valve: Ref. VANNEDN100
• Active carbon filter DN 100: Ref. FILTRECUBICXLSFA

The SFA Sanicubic 2 SC5.5 T pumping station is the perfect professional solution for evacuating wastewater in installations with high flow and height requirements. Its reliability, power, and ease of installation make it a safe and durable option for large evacuation projects.
