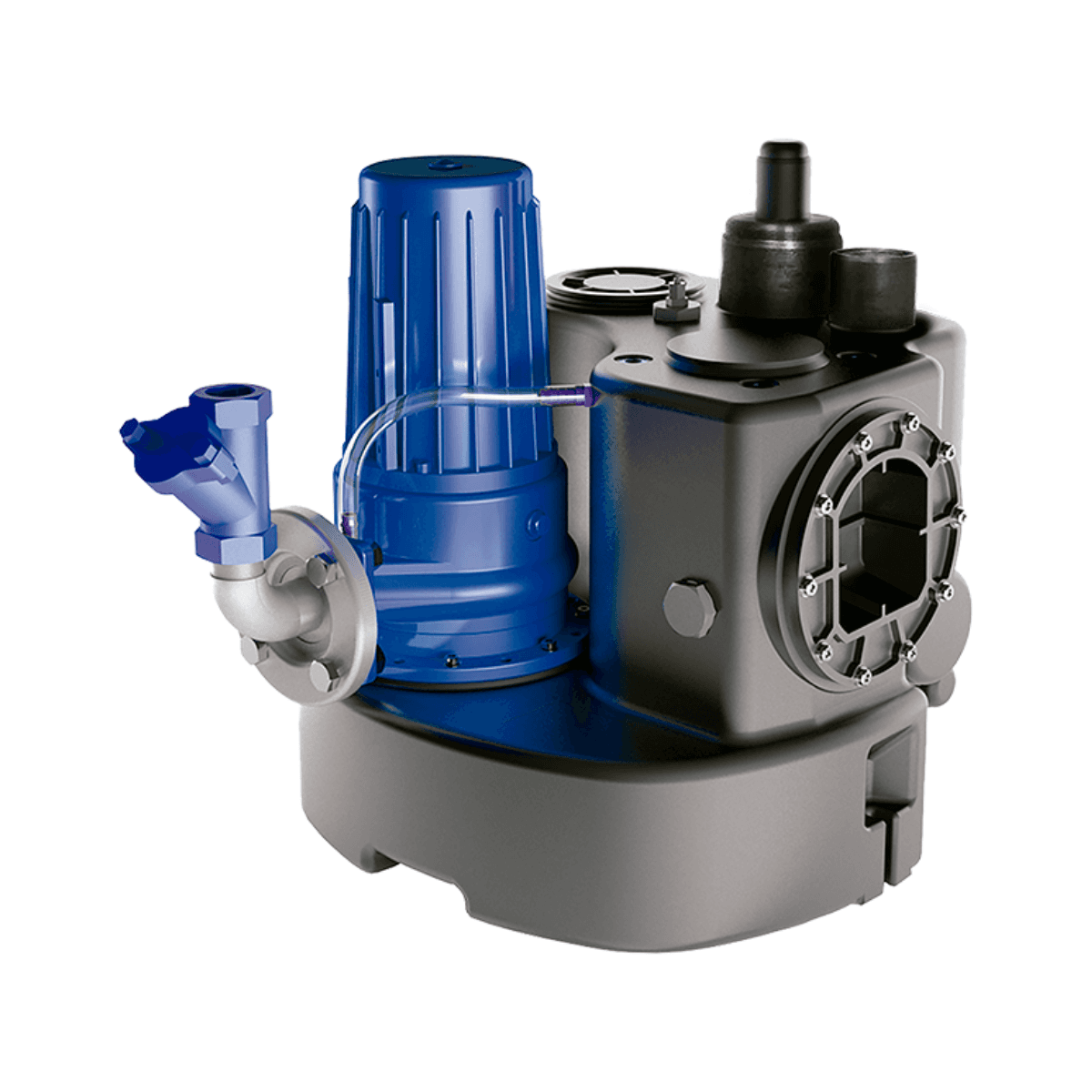

Three-Phase Pumping Station SFA Sanicubic 1 GR SE71.3 T

The SFA Sanicubic 1 GR SE71.3 T pumping station is a compact and high-performance solution designed to evacuate wastewater from facilities where a high lift height is required. With powerful motorization and a cast iron grinder pump equipped with Pro X K3 blades, this station is ready for demanding applications such as homes, basements, commercial premises, or technical areas with long-distance or high-gradient evacuation.

The SE71.3 T model allows reaching a maximum head height of 35 meters and a flow rate of up to 17 m³/h. It is equipped with a 400 V three-phase motor with a useful power (P2) of 3200 W, operating in S3 25% mode. This additional power compared to previous models makes it ideal for installations requiring superior hydraulic performance and high reliability in continuous or intensive use environments.

The grinder pump, made of GG-20 cast iron, incorporates Pro X K3 blades that allow the evacuation of liquids loaded with solids, efficiently grinding them to facilitate their transport through DN 50 evacuation pipes. The entire system is mounted on a 55-liter tank made of high-density polyethylene (PE LD), resistant to wear, impacts, and chemical agents.

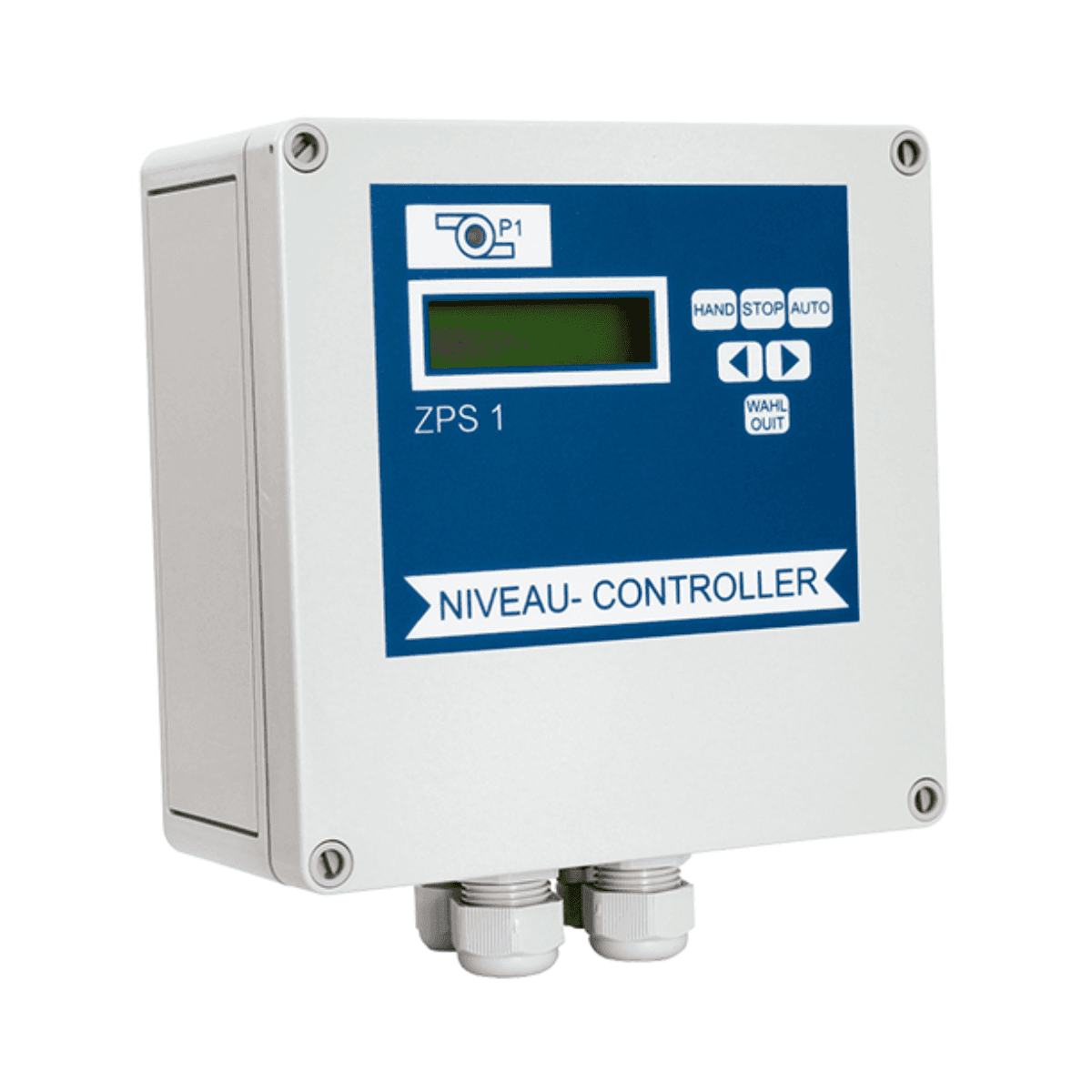

Includes an external control panel ZPS 1 with acoustic and visual alarm, as well as a pneumatic level detection system, which allows reliable start and stop and prevents overflows. This system, combined with the non-return valves and connectors supplied as standard, facilitates a safe and functional installation from the first moment.

Included Components

• PE tank of 55 L with DN 100 and DN 50/100 inlets
• Cast iron grinder pump with Pro X K3 blades
• DN 50 evacuation and Ø75 mm ventilation
• External control panel ZPS 1 with integrated alarm
• Ball non-return valve and fittings included

Technical Specifications

• Motor type: Three-phase (400 V, 50-60 Hz)
• Absorbed power (P1): 3900 W
• Useful power (P2): 3200 W
• Operating mode: S3 25%
• Protection index: IP68
• Maximum head height (HMT): 35 m
• Maximum flow rate: 17 m³/h
• Maximum liquid temperature: 55 °C
• ON/OFF level: 140–250 mm / 30 mm
• Alarm level: 180–290 mm

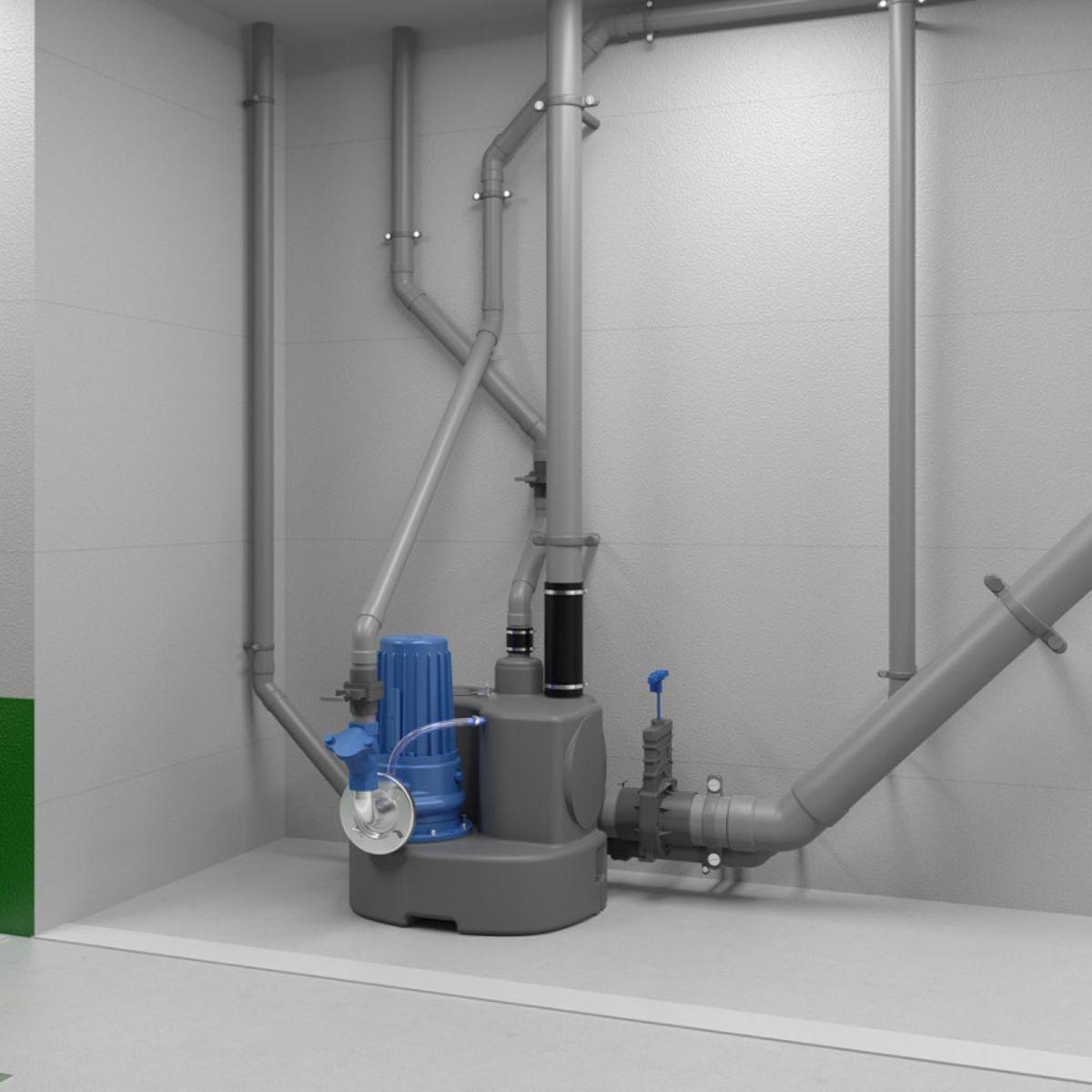

Connections and Installation

• Inlets: 3 (DN 100 and DN 50/100)
• Evacuation: DN 50
• Ventilation: Ø75 mm
• Useful volume: 55 liters
• Detection type: Pneumatic
• Gross weight: 68 kg

Main Advantages

• Powerful 3200 W three-phase motor for high lift heights
• Pro X K3 blades for grinding waste and preventing clogs
• Compact, quiet design ready for immediate installation
• External control panel with standard alarm
• Ideal for evacuation from basements or places without gravity drainage

Compatible Optional Components

• DIN 40 shut-off valve: Ref. VANNEDN50 – EAN: 3308815061030
• DIN 110 shut-off valve: Ref. VANNEDN100 – EAN: 3308815061023
• Ø75 active carbon filter: Ref. FILTRECUBICXLSFA – EAN: 3308815076874

The SFA Sanicubic 1 GR SE71.3 T pumping station is an advanced technical solution for high lift evacuations, offering reliability, power, and ease of installation. Perfect for professional projects with high hydraulic requirements.
