SFA Sanifos 610 2 VX SP S Pumping Station - Single-phase Vortex Version

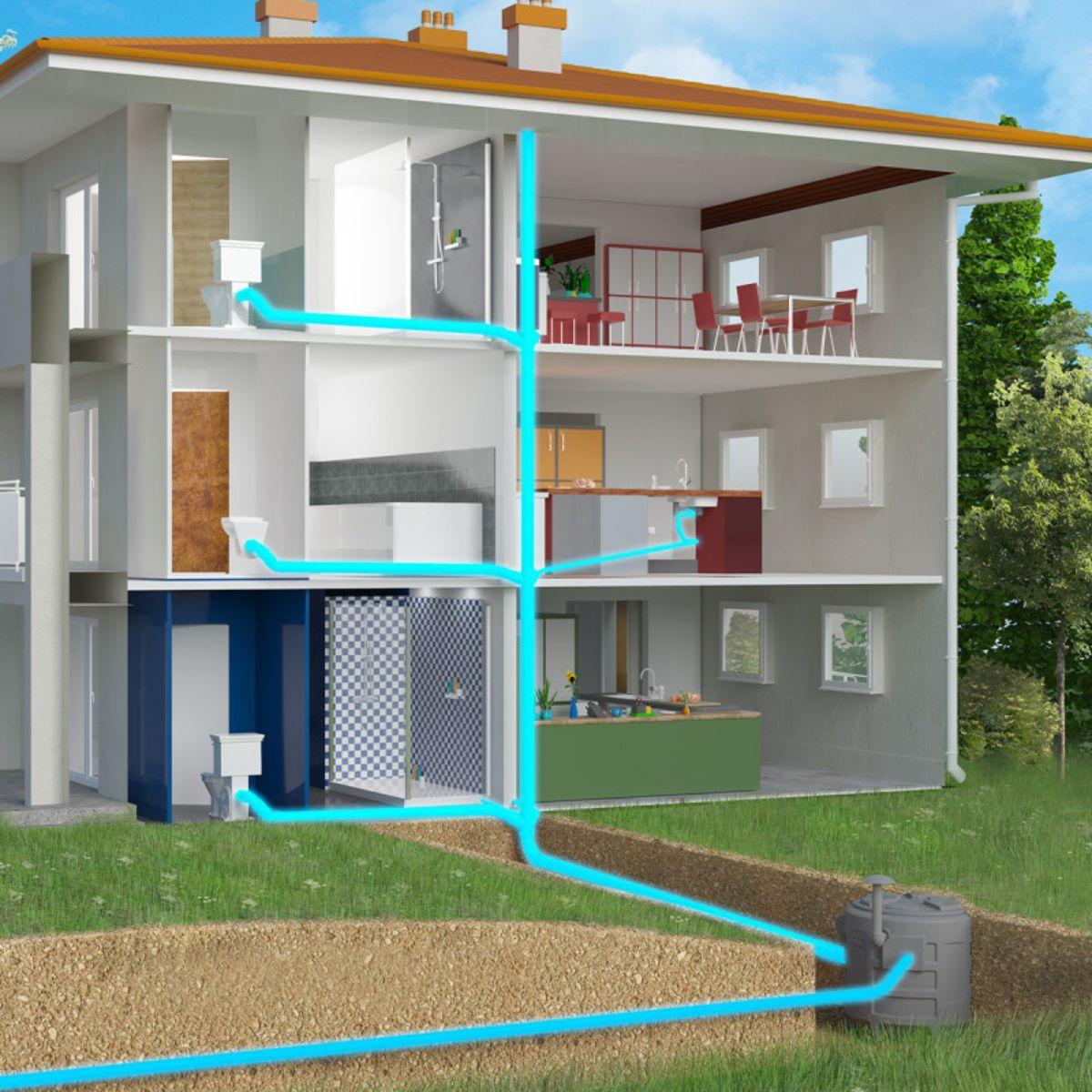

The SFA Sanifos 610 2 VX SP S pumping station is designed to evacuate domestic or commercial wastewater in environments where gravity drainage is not available. This single-phase version is equipped with two Sanipump VX submersible pumps with vortex impellers, capable of evacuating solids up to 50 mm without the need for grinding.

The system allows automatic operation with pump alternation to prolong the lifespan of the unit, as well as simultaneous activation in case of a large volume of water. Thanks to its hydraulic power, it reaches a maximum flow rate of 23 m³/h and a head height of up to 14 meters, making it suitable for demanding technical installations with vertical or long-distance evacuation.

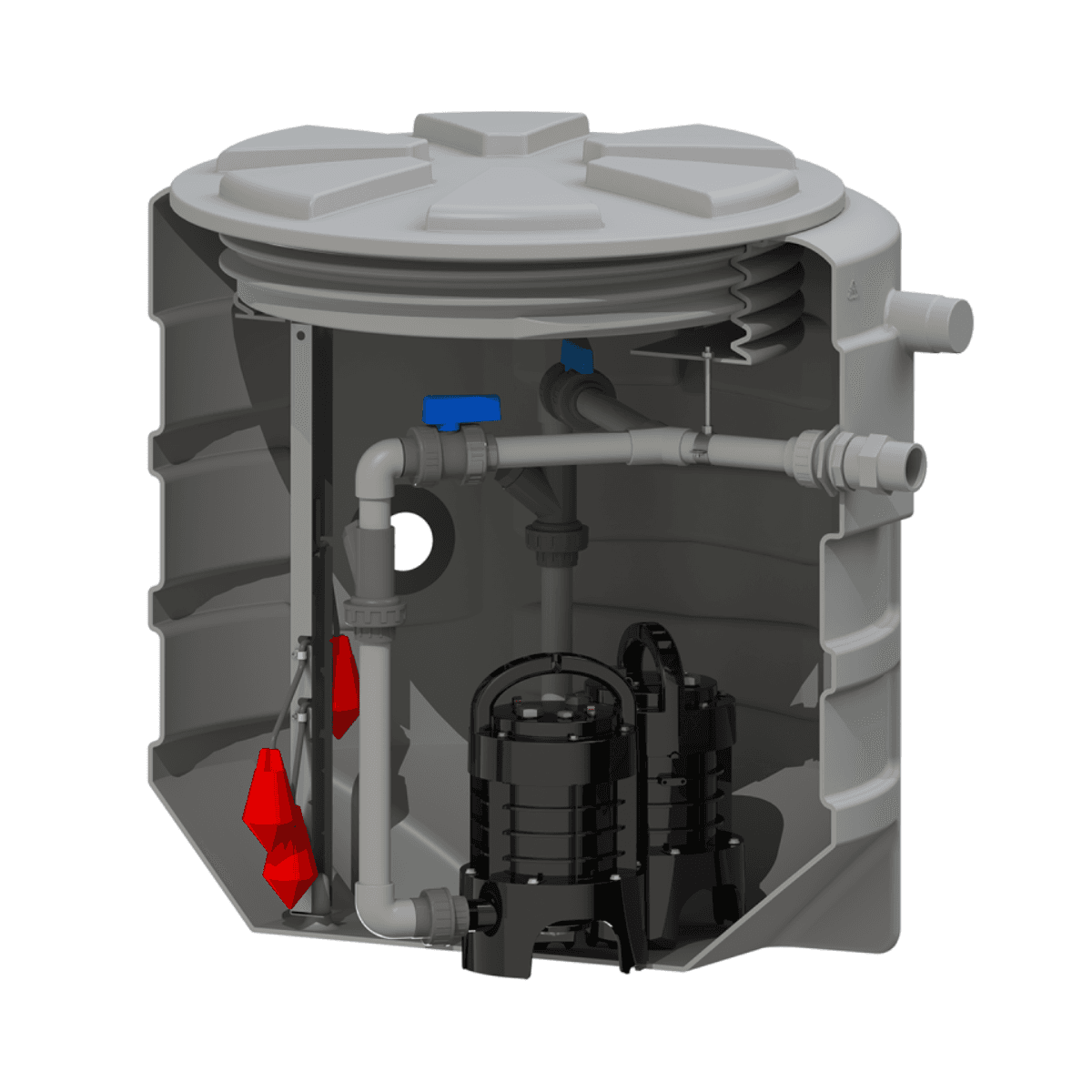

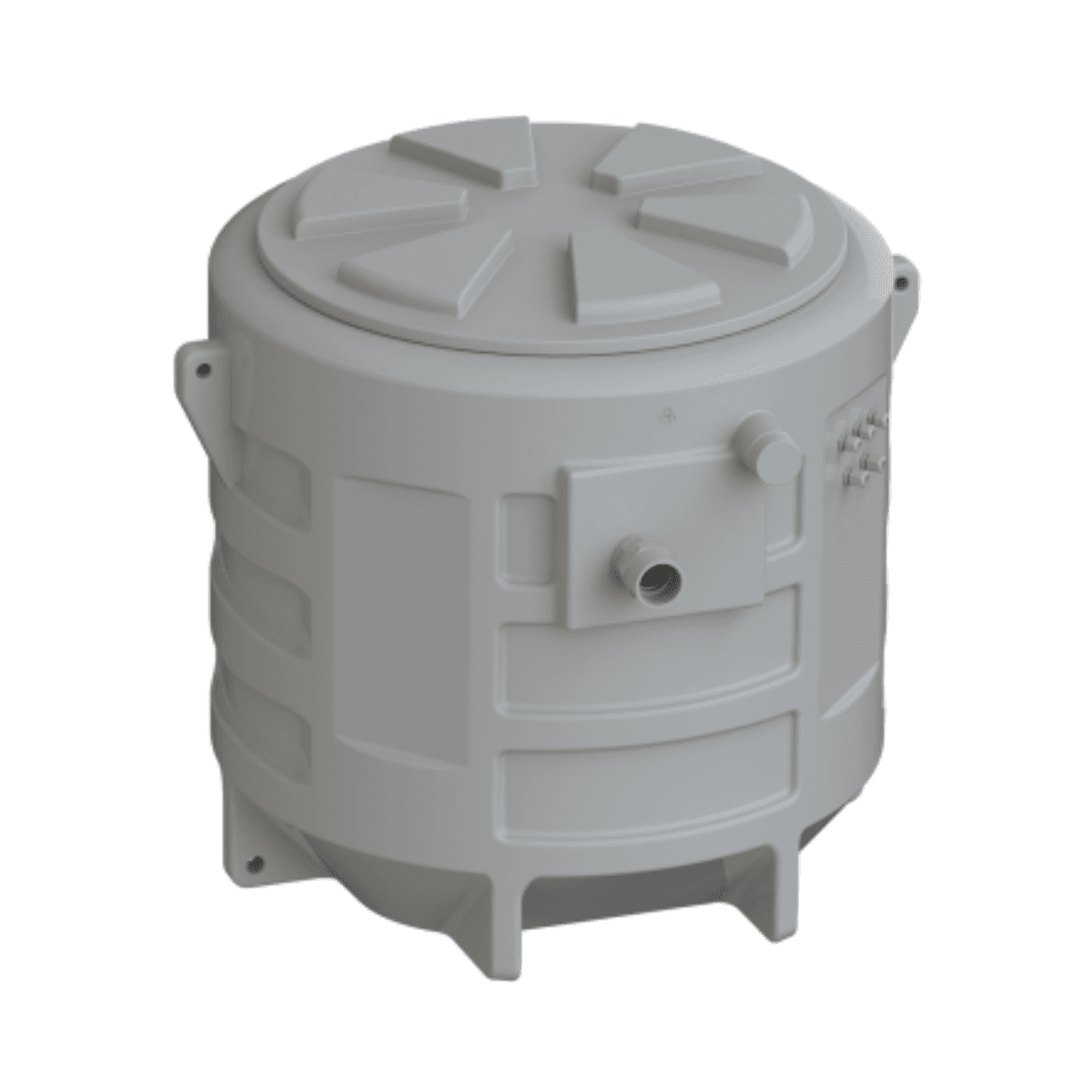

The tank, made of high-density polyethylene (HDPE), offers a total volume of 610 liters and a useful volume of 170 liters. It is reinforced with a hermetic screw-on lid capable of withstanding up to 200 kg of point load, and its interior design prevents sedimentation between pumping cycles.

The system is delivered fully equipped with an intelligent Smart Control panel, allowing advanced management of the equipment, with cycle logging, alarms, incidents, and maintenance scheduling from a digital screen. It also includes two lifting chains, DN connection seals, and a pre-assembled hydraulic kit with non-return valves and shut-off valves for each pump.

Included Components

• 610-liter buried tank in HDPE
• 2 single-phase Sanipump VX pumps with vortex impeller
• Smart Control panel with alarm system
• Hydraulic kit with non-return valve and shut-off valve per pump
• 2 connection seals (DN50 and DN100)
• 2 stainless steel chains

Technical Specifications

• Pump Type: Vortex with 50 mm free passage
• Power Supply Voltage: 230 V (single-phase)
• Operating Mode: Automatic with alternation/simultaneity
• Detection: Level switch

Hydraulic Data

• Maximum Head Height: 14 m
• Maximum Flow Rate: 23 m³/h
• Inlet Diameter: Ø50/100 mm
• Discharge Diameter: Ø63 mm
• Ventilation Diameter: Ø75 mm
• Solid Passage: up to 50 mm

Tank and Dimensions

• Total Volume: 610 liters
• Useful Volume: 170 liters
• Alarm Level: 570 mm
• Lowest/Highest Entry Point: 325 / 670 mm
• Maximum Pumped Liquid Temperature: 70 °C
• Gross Weight of the Unit: 115 kg

Main Advantages

• Powerful evacuation without the need for grinding thanks to vortex impeller
• Fully automatic operation with intelligent system
• Ready-to-use installation with all pre-assembled components
• Impact-resistant, frost-resistant tank with hermetic lid
• Ideal for intensive use in homes, businesses, or technical areas

Optional Accessories

• Wired Alarm: Ref. 009FOS280AL
• 40 cm Extension Module: Ref. RO250100

The SFA Sanifos 610 2 VX SP S pumping station offers maximum reliability for demanding evacuations in domestic or commercial installations. Its configuration with dual vortex pumps ensures efficiency, safety, and ease of maintenance in any continuous use environment.
