SFA SANIFOS 610 2 GR SP S Pumping Station - Single-Phase Grinder Version

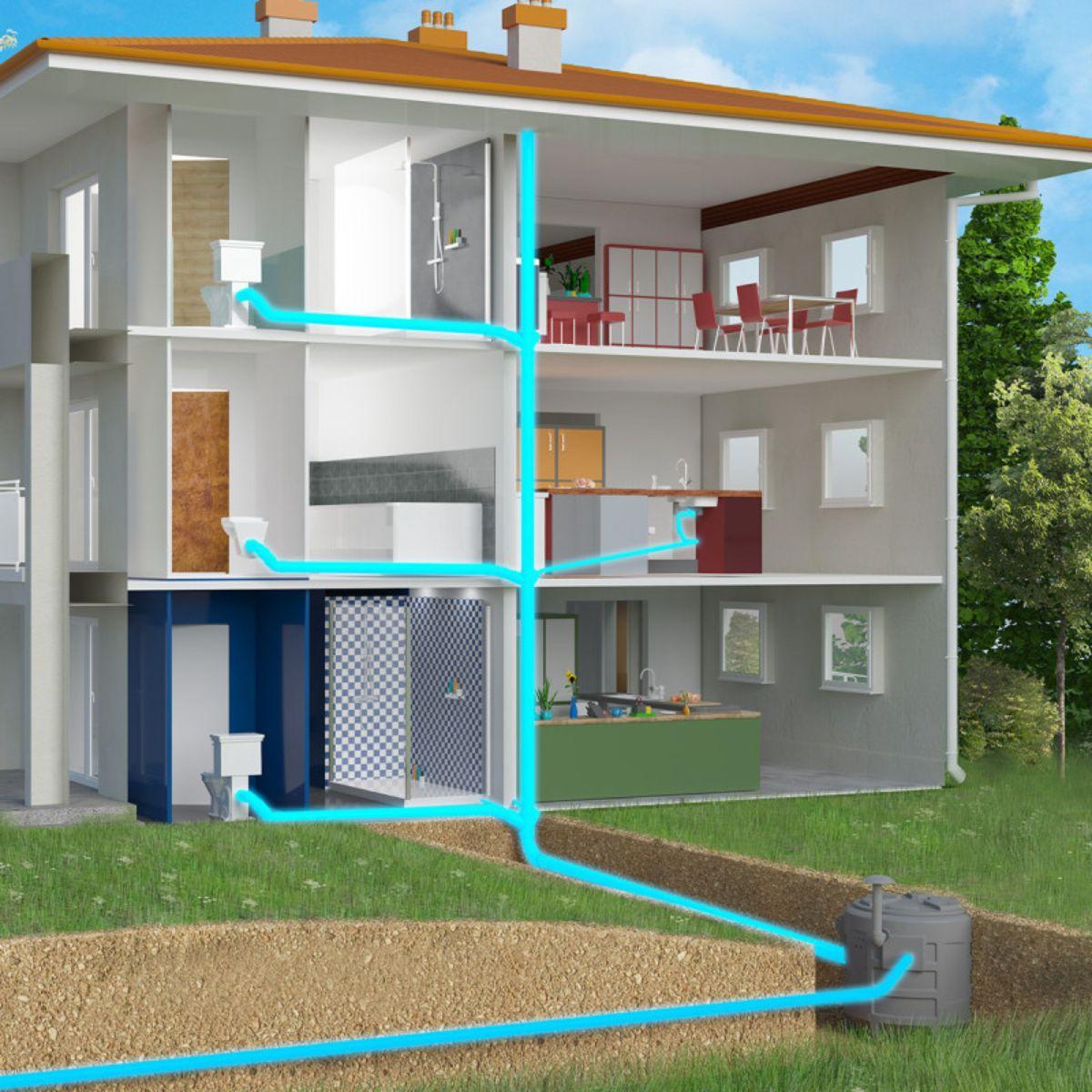

The SFA Sanifos 610 2 GR SP S pumping station is designed to evacuate wastewater in areas without direct connection to the sewer network. Ideal for single-family homes, commercial premises, or small communities, this compact station is installed buried outside and is equipped with a 610-liter tank and two single-phase Sanipump GR grinder pumps.

Its dual pump system allows for alternating or simultaneous operation, depending on the water level and system demand. The Pro X K2 blades integrated into each pump ensure effective grinding of solids before evacuation. The system is fully automatic thanks to pre-installed level switches and reaches a maximum head height of 14 meters, with a flow rate of up to 15 m³/h.

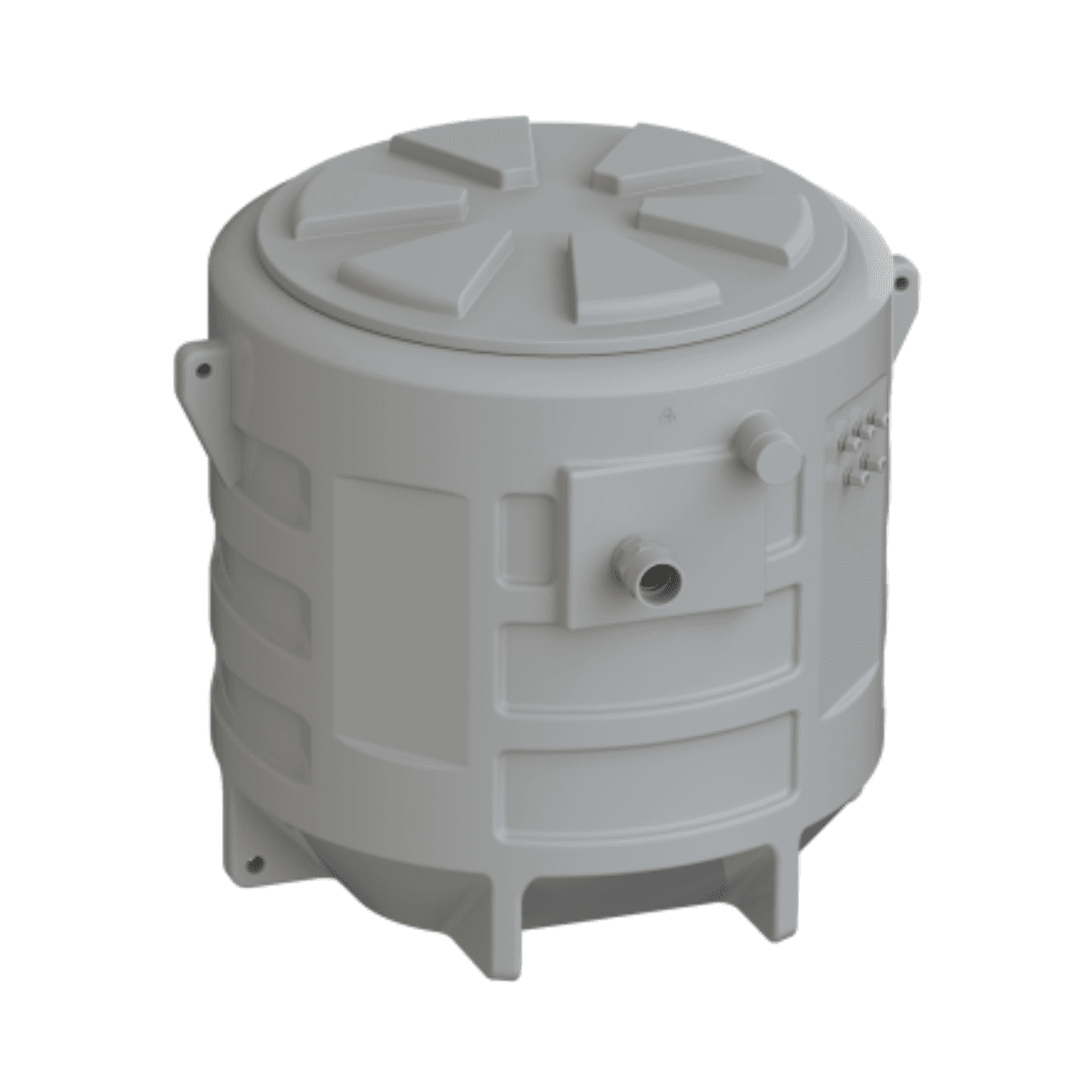

The station comes standard with the Smart Control intelligent control panel, which allows you to view alerts, operating cycles, and schedule maintenance from a digital screen. Additionally, the tank is made of high-density polyethylene (HDPE), with a sloped bottom to prevent sedimentation and a threaded lid capable of supporting up to 200 kg of point load.

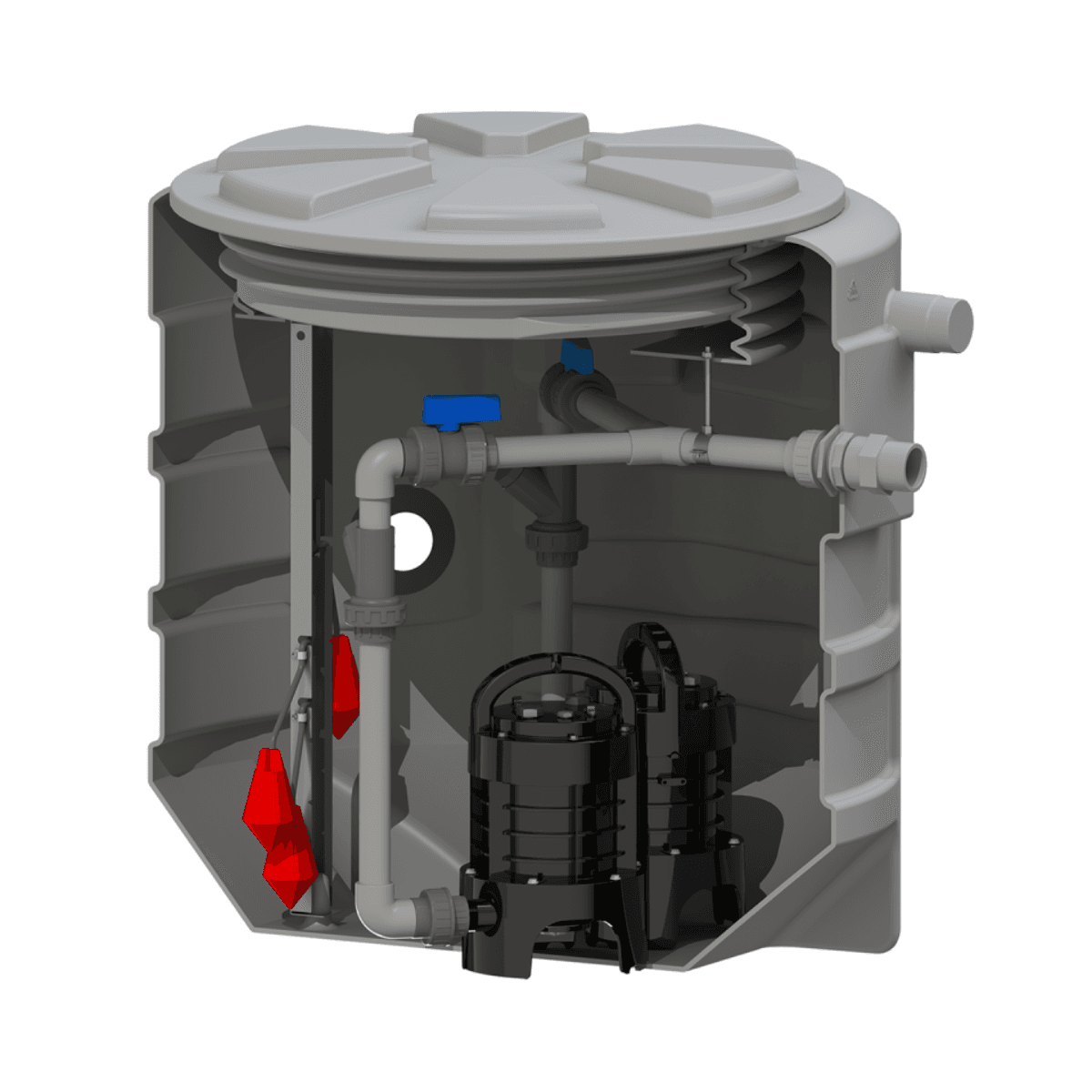

The hydraulic kit comes pre-installed with non-return valves and shut-off valves for each pump, facilitating both installation and maintenance tasks. Stainless steel chains and DN50 and DN100 seals are also included for a secure and watertight connection.

Included Components

• 610-liter buried tank in HDPE
• 2 single-phase Sanipump GR pumps with blades
• Smart Control panel with intelligent management system
• Hydraulic kit with non-return valve and shut-off valve for each pump
• 2 connection seals (DN50 and DN100)
• 2 stainless steel chains

Technical Specifications

• Pump Type: Grinder with Pro X K2 blades
• Power Supply Voltage: 230 V (single-phase)
• Operating Mode: Automatic with alternation and simultaneity
• Detection: Level switches

Hydraulic Data

• Maximum Head Height: 14 m
• Maximum Flow Rate: 15 m³/h
• Inlet Diameter: Ø50/100 mm
• Discharge Diameter: Ø50 mm
• Ventilation Diameter: Ø75 mm
• Solids Passage: Grinding (Ø40 mm DIN interior)

Tank and Dimensions

• Total Volume: 610 liters
• Useful Volume: 170 liters
• Alarm Level: 570 mm
• Lowest/Highest Inlet Point: 325 / 670 mm
• Maximum Pumped Liquid Temperature: 70 °C
• Gross Weight of Set: 115 kg

Main Advantages

• Efficient and safe wastewater evacuation in demanding environments
• 2 grinder pumps for maximum reliability and redundancy
• Advanced management with Smart Control included as standard
• Durable, odor-resistant, and easy-access tank
• Easy maintenance thanks to the pre-installed hydraulic kit

Optional Accessories

• Wired Alarm: Ref. 009FOS280AL
• 40 cm Extension Module: Ref. RO250100

The SFA Sanifos 610 2 GR SP S pumping station is a robust and compact solution for domestic or commercial evacuations. It offers safety, automation, and ease of installation for environments where gravity evacuation is not possible.
