SFA SANIFOS 610 1 GR SP S Pumping Station - Single-Phase Grinder Version

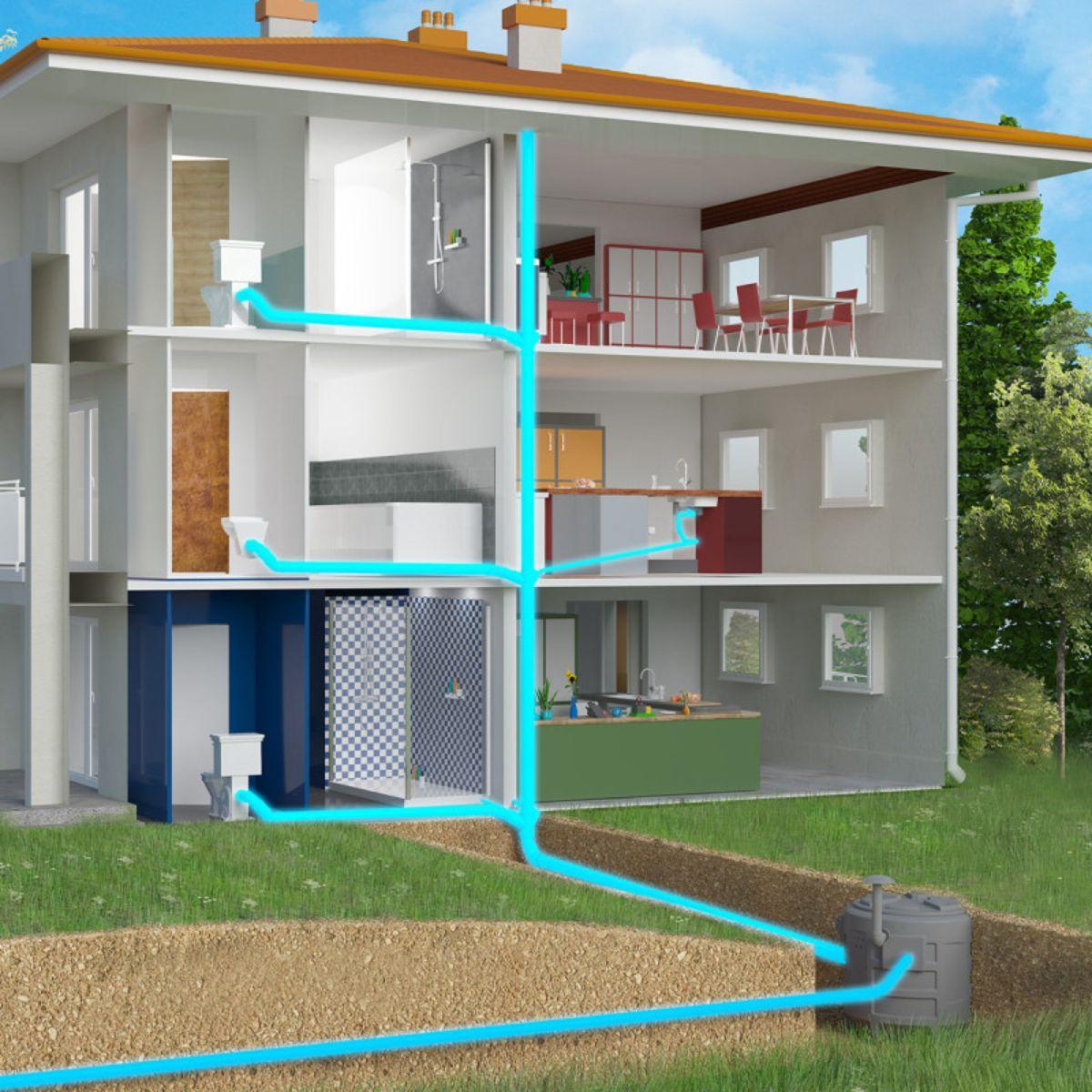

The SFA Sanifos 610 1 GR SP S pumping station is designed to evacuate domestic or commercial wastewater in facilities that do not have a natural gravity outlet to the sewer system. Equipped with a 612-liter tank and a submersible pump with Pro X K2 blades, this single-phase version ensures efficient, safe, and automated evacuation even in environments with limited installation conditions.

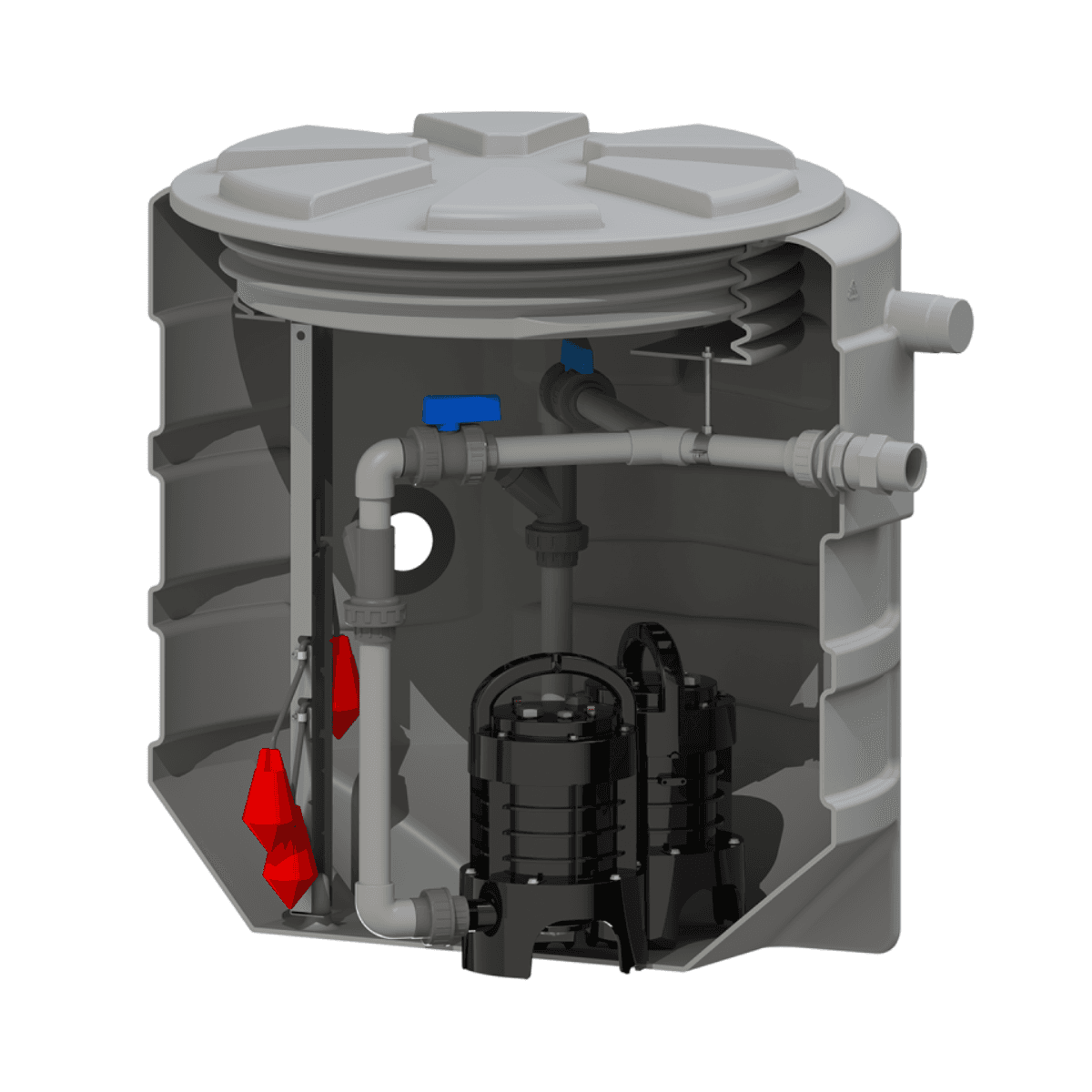

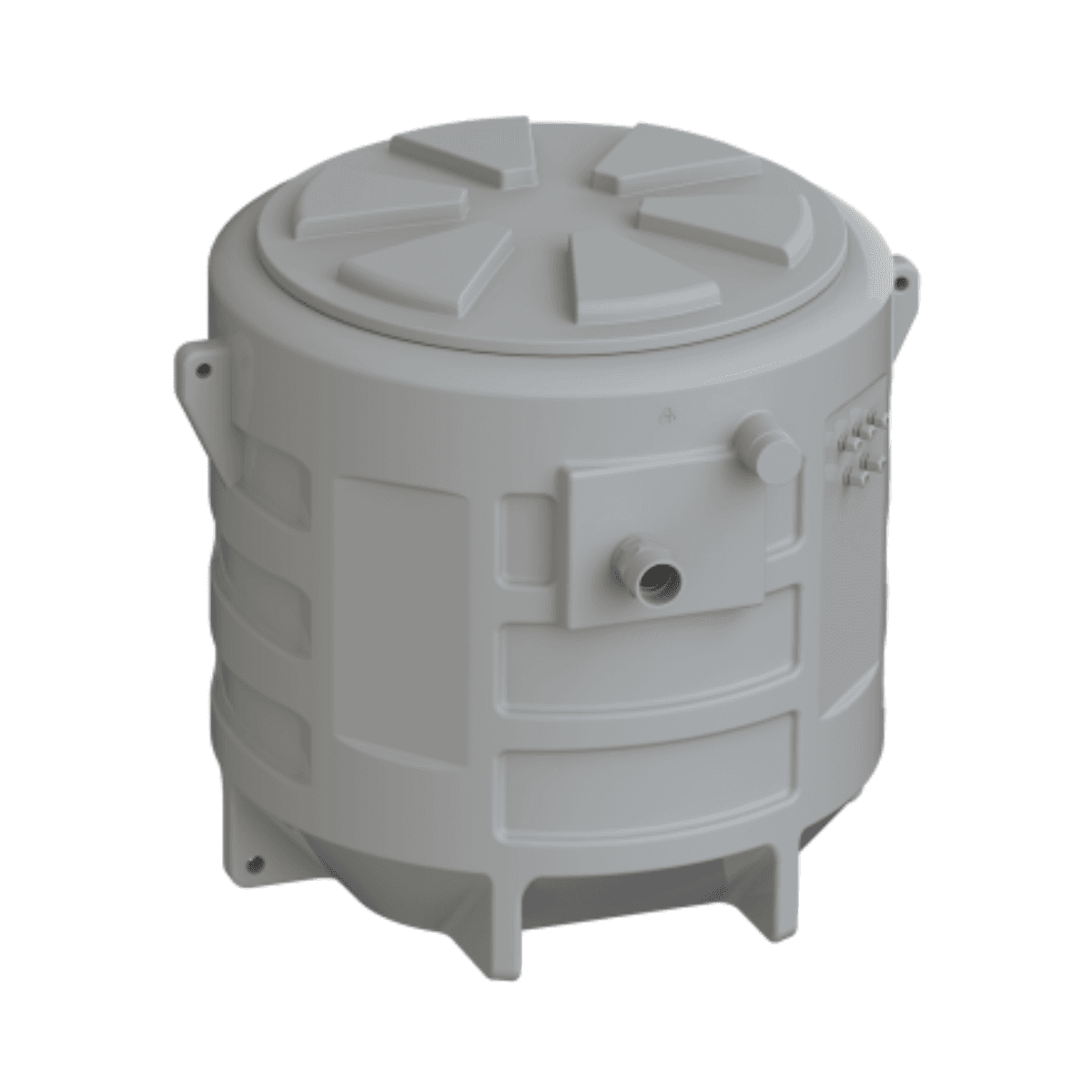

The tank is made of high-density polyethylene (HDPE), with a threaded lid capable of supporting up to 200 kg of point load. Its anti-sedimentation design prevents sludge accumulation between pumping cycles, ensuring clean and efficient operation. The station includes a pre-installed hydraulic kit with a shut-off valve and a check valve, which facilitates on-site assembly and reduces installation times.

The Sanipump GR grinder pump allows the evacuation of liquids loaded with solids through a turbine with blades, especially useful in environments where the presence of black water or water with organic waste is expected. It can lift water up to a height of 14 meters, with a flow rate of up to 15 m³/h, through a DN 50 discharge pipe.

The system operates fully automatically via level switches. The Smart Control panel, included as standard, allows you to view alarms, pumping cycles, operating history, and maintenance scheduling from its digital screen. It can be combined with a remote wired alarm (optional) for greater security in case of an incident.

Included Components

• 610-liter buried tank in HDPE
• 1 single-phase Sanipump GR pump with Pro X K2 blades
• Smart Control panel with alarm system
• Hydraulic kit with check valve and shut-off valve
• 2 sealing gaskets (DN50 and DN100)
• 1 stainless steel chain

Technical Specifications

• Pump Type: Grinder with Pro X K2 blades
• Power Supply Voltage: 230 V (single-phase)
• Operating Mode: Automatic via level switch
• Detection: Level switch

Hydraulic Data

• Maximum Head Height: 14 m
• Maximum Flow Rate: 15 m³/h
• Inlet Diameter: Ø50/100 mm
• Discharge Diameter: Ø50 mm
• Ventilation Diameter: Ø75 mm
• Solids Passage: grinding, Ø40 mm DIN int. outlet

Tank and Dimensions

• Total Volume: 610 liters
• Usable Volume: 150 liters
• Alarm Level: 570 mm
• Lowest/Highest Inlet Point: 325 / 670 mm
• Maximum Pumped Liquid Temperature: 70 °C
• Gross Weight of the Set: 100 kg

Main Advantages

• Efficient wastewater evacuation in homes and businesses
• Single-phase grinder pump with high-performance blades
• Intelligent management with included Smart Control
• Odor-proof, frost-resistant, and easy-access tank
• Complete installation, ready to connect and start

Optional Accessories

• Wired Alarm: Ref. 009FOS280AL
• 40 cm Extension Module: Ref. RO250100

The SFA Sanifos 610 1 GR SP S pumping station is the ideal solution for domestic or commercial evacuation projects that require constant performance, safety, and ease of maintenance in environments without a natural slope to the sewer system.
