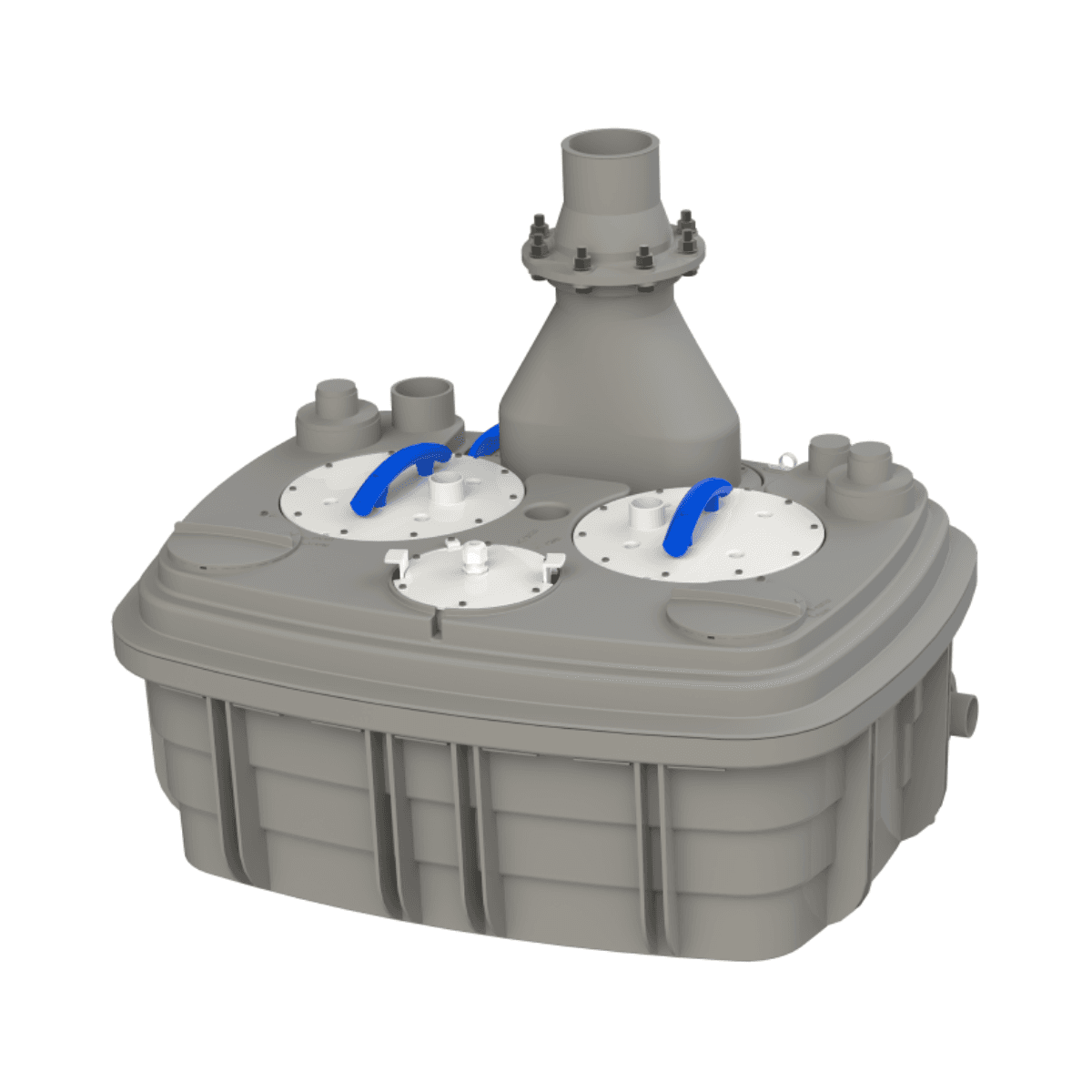

SFA Sanicubic 2 VX S Pumping Station

The SFA Sanicubic 2 VX S pumping station is designed to evacuate large volumes of black and grey wastewater in domestic, commercial, or collective environments. Thanks to its two powerful vortex pumps with 2000 W motors each, it can replace the function of a sump or septic tank, collecting and expelling wastewater to greater heights or distances through an Ø80 mm internal pipe.

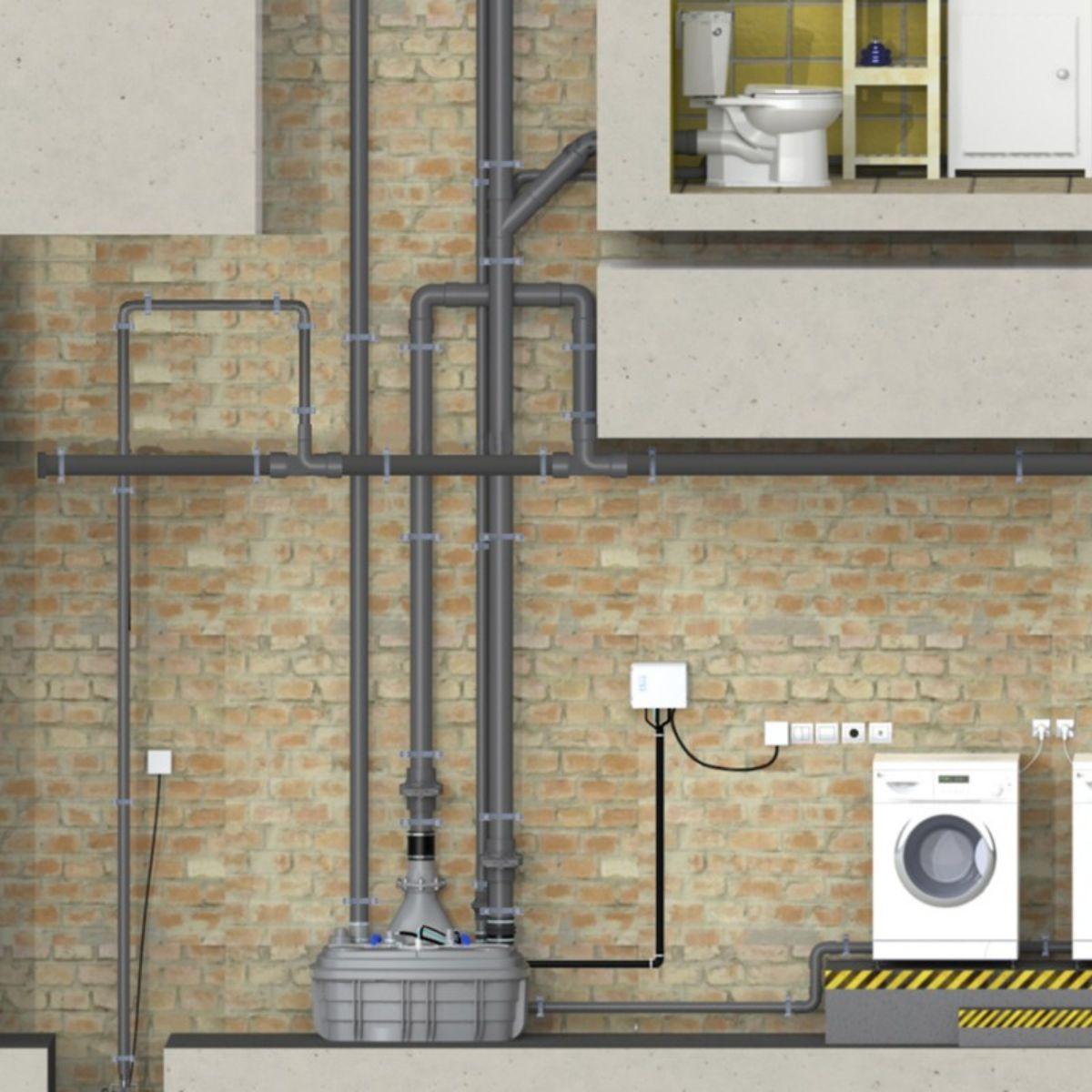

This station is installed directly on the ground, without the need for excavation. The system starts automatically when the water level reaches the activation point in the tank. The pumps work alternately to extend their lifespan but can be activated simultaneously if needed. The included standard control panel also manages a wired alarm that activates in case of failure or excessive level.

The tank has a capacity of 120 liters (26 usable liters) and is made of glass fiber reinforced polypropylene (PP GF), with five multidimensional inlets (Ø40/50/100/110/125 mm), allowing connection to washing machines, toilets, sinks, showers, and more. Ventilation is done through a Ø75 mm outlet, and the free passage of solids is up to 50 mm, thanks to the vortex turbines.

With a flow rate of up to 40 m³/h and a head height of up to 13.5 m, Sanicubic 2 VX S is suitable for intensive installations. Its IP68 protection rating allows its use in humid environments or even with the risk of temporary immersion.

Included Components

• 120-liter tank in PP GF
• 2 pumps with vortex turbine (2000 W)
• Standard control panel
• Wired alarm
• Discharge elbow with pre-installed non-return valve

Technical Specifications

• Turbine type: Vortex
• Power supply voltage: 230 V (single-phase)
• Frequency: 50-60 Hz
• Absorbed power (P1): 2000 W (per pump)
• Useful power (P2): 1400 W (per pump)
• Operating mode: S3 30%
• Protection rating: IP68

Hydraulic Data

• Maximum head height: 13.5 m
• Maximum flow rate: 40 m³/h
• Inlet diameter: Ø40/50/100/110/125 mm
• Discharge diameter: Ø90/110 mm
• Ventilation diameter: Ø75 mm
• Total volume: 120 L
• Usable volume: 26 L
• ON/OFF level: 165 mm / 95 mm
• Alarm level: 235 mm
• Solid passage: up to 50 mm
• Maximum liquid temperature: 70 °C

Identification and Logistics

• Package weight: 101 kg
• EAN code: 3308815063140
• Reference: 0102203

Main Advantages

• Efficient evacuation of black and grey water for multiple connections
• Easy ground installation without the need for excavation
• Compatible with all types of sanitary and household appliances
• Automatic operation and protection with alarm system
• Robust design prepared for intensive use

Optional Accessories

• DIN 40 shut-off valve: Ref. VANNEDN50
• DIN 110 shut-off valve: Ref. VANNEDN100
• Ø75 active carbon filter: Ref. FILTRECUBICXLSFA

The SFA Sanicubic 2 VX S pumping station offers reliable and continuous performance for complex evacuations in homes, premises, or collectives. Its power, versatility, and robust design ensure a durable and safe installation in demanding environments.
