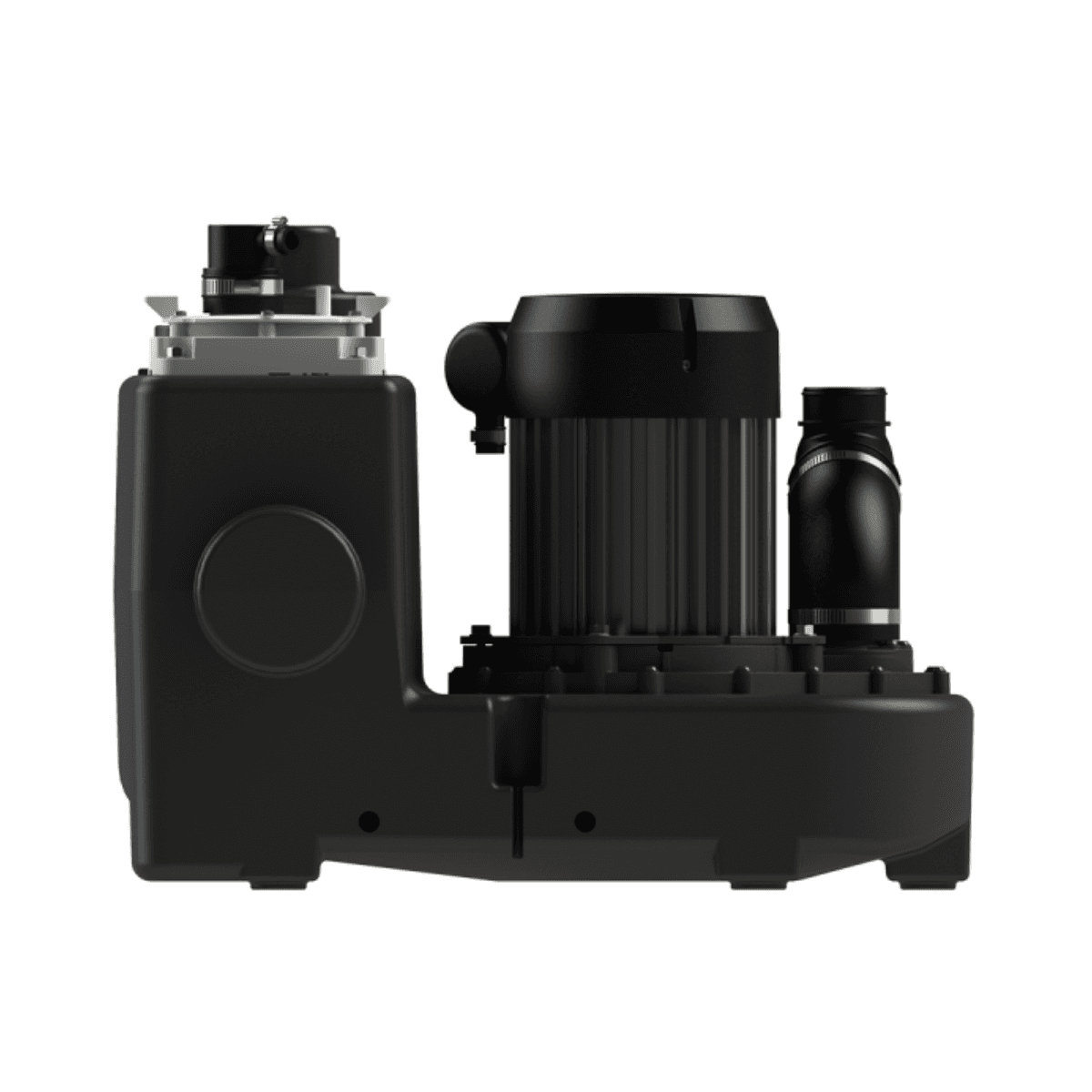

SFA Sanicubic 2 GR HP S Pumping Station

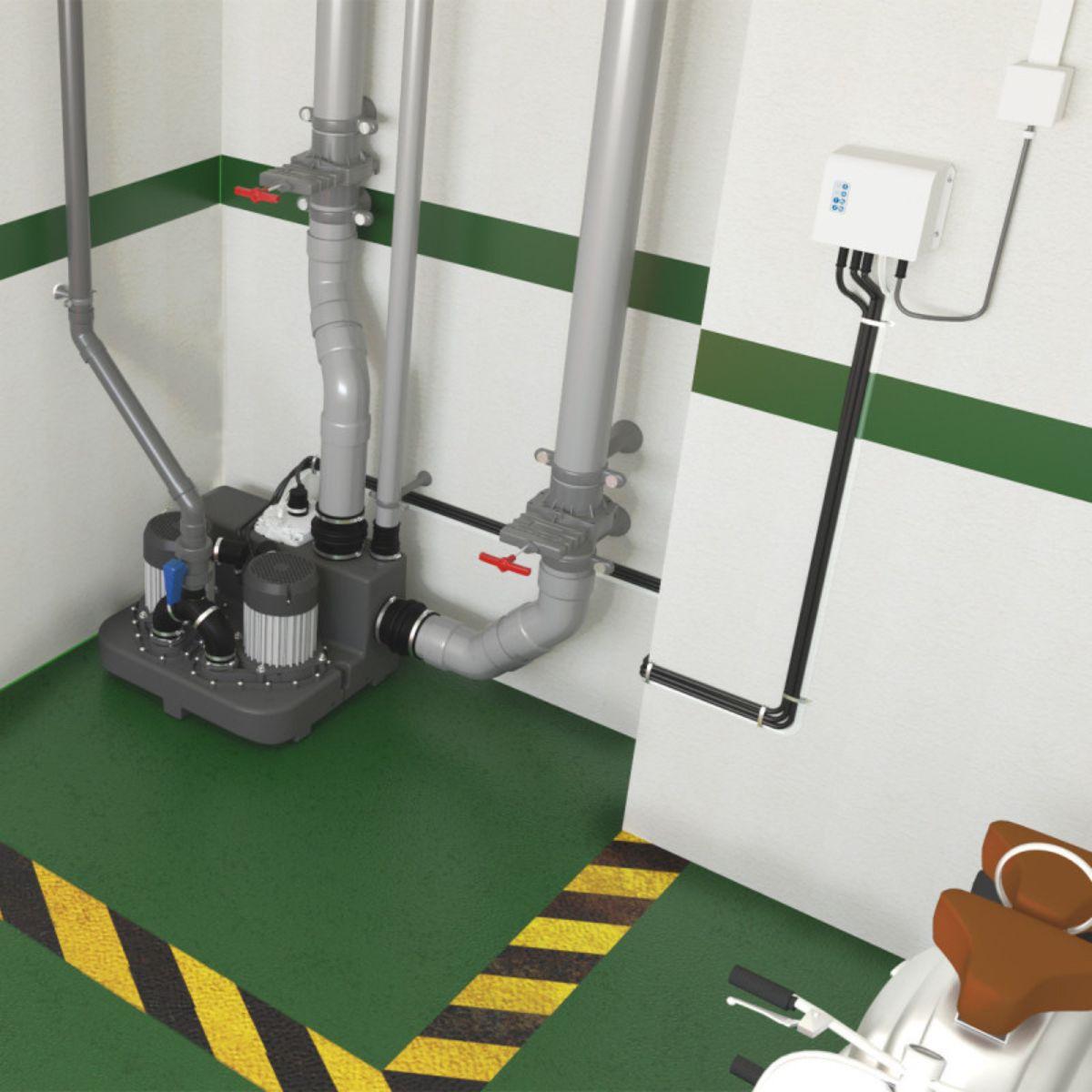

The SFA Sanicubic 2 GR HP S pumping station is designed to evacuate wastewater in demanding environments such as single-family homes, buildings, restaurants, shops, or commercial facilities. It is installed directly on the ground and does not require excavation, making it an ideal solution for renovations or new installations without gravity drainage.

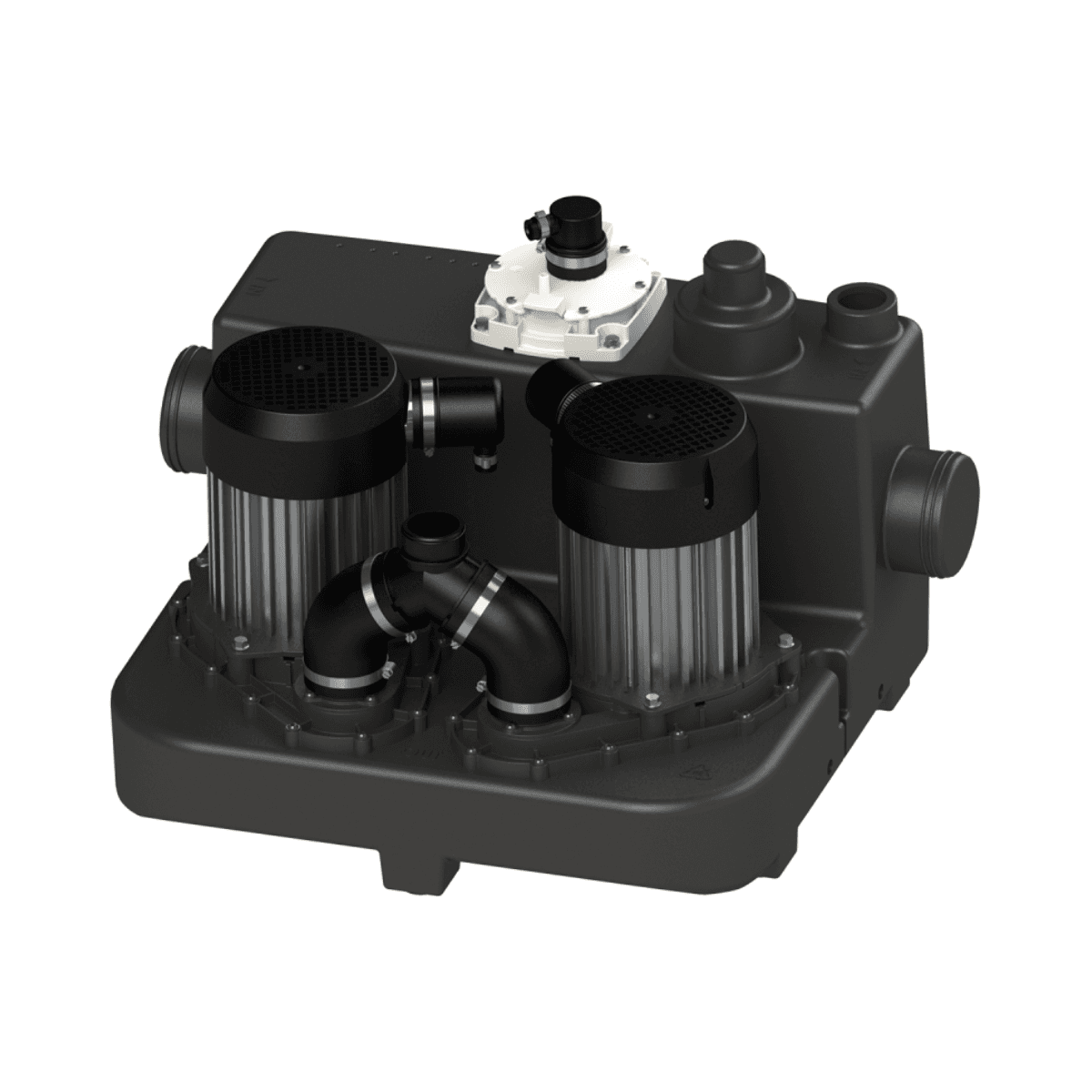

Equipped with two grinder pumps with Pro X K2 blades, it allows the evacuation of black and grey water through small diameter pipes (Ø50 mm), reaching a maximum head height of 18 meters and a flow rate of up to 19 m³/h. Its design allows alternating operation of the pumps, activating simultaneously if an increase in flow is detected, thus ensuring operational safety and longer equipment life.

The unit has three inlets, two of which are located at the bottom of the tank to facilitate the connection of multiple sanitary appliances (toilets, sinks, showers, sinks, washing machines, etc.). Water level detection is done via a pneumatic system, and the unit is supplied with a standard control panel that integrates an audible, visual, and wired alarm.

The tank, with a total volume of 39 liters and 15 liters usable, is made of high-density polyethylene (HDPE) and features a watertight, robust, and easy-to-maintain construction. The pumps, motor, and turbine are made of high-durability technical materials: pump body in PA 12 GF, motor in aluminum, and turbine in PP GF. The assembly has IPX8 protection, allowing its installation in humid environments.

Included Components

• 39-liter tank in HDPE
• 2 grinder pumps with Pro X K2 blades
• Standard control panel with audible, visual, and wired alarm

Technical Specifications

• Power supply voltage: 220-240 V
• Frequency: 50-60 Hz
• Absorbed power (P1): 2000 W (per pump)
• Useful power (P2): 1400 W (per pump)
• Operating mode: S3 50%
• Protection rating: IPX8

Hydraulic Data

• Maximum head height: 18 m
• Maximum flow rate: 19 m³/h
• Inlet diameter: Ø100 mm (3 inlets, 2 low)
• Discharge diameter: Ø50 mm
• Ventilation diameter: Ø50 mm
• Total tank volume: 39 liters
• Usable volume: 15 liters
• Alarm level: 225 mm
• Maximum pumped liquid temperature: 90 °C (5 minutes)

Identification and Logistics

• EAN Code: 3308815090122
• Reference: CUBIC2HP

Main Advantages

• Two pumps with blades for efficient black water evacuation
• Evacuation through Ø50 mm pipe, no need for traditional downpipe
• Direct floor installation with three inlets and ventilation
• Audible, visual, and wired alarm for continuous monitoring
• Compact, quiet, and easy-to-maintain design

Optional Accessories

• DIN 40 shut-off valve: Ref. VANNEDN50
• DIN 110 shut-off valve: Ref. VANNEDN100
• Ø50 active carbon filter: Ref. FILTRECUBICSFA

The SFA Sanicubic 2 GR HP S pumping station is a reliable, powerful, and compact solution for evacuating wastewater in installations where gravity drainage does not exist. Ideal for technical or commercial installations that require maximum efficiency and safety.
