SFA Sanicubic 1 GR SE71.1 S Pumping Station

The SFA Sanicubic 1 GR SE71.1 S pumping station is designed to efficiently manage the evacuation of wastewater in single-family homes, apartments, or small commercial premises. This single-phase version combines a compact design with high performance, facilitating its integration into limited spaces without sacrificing notable hydraulic capacity.

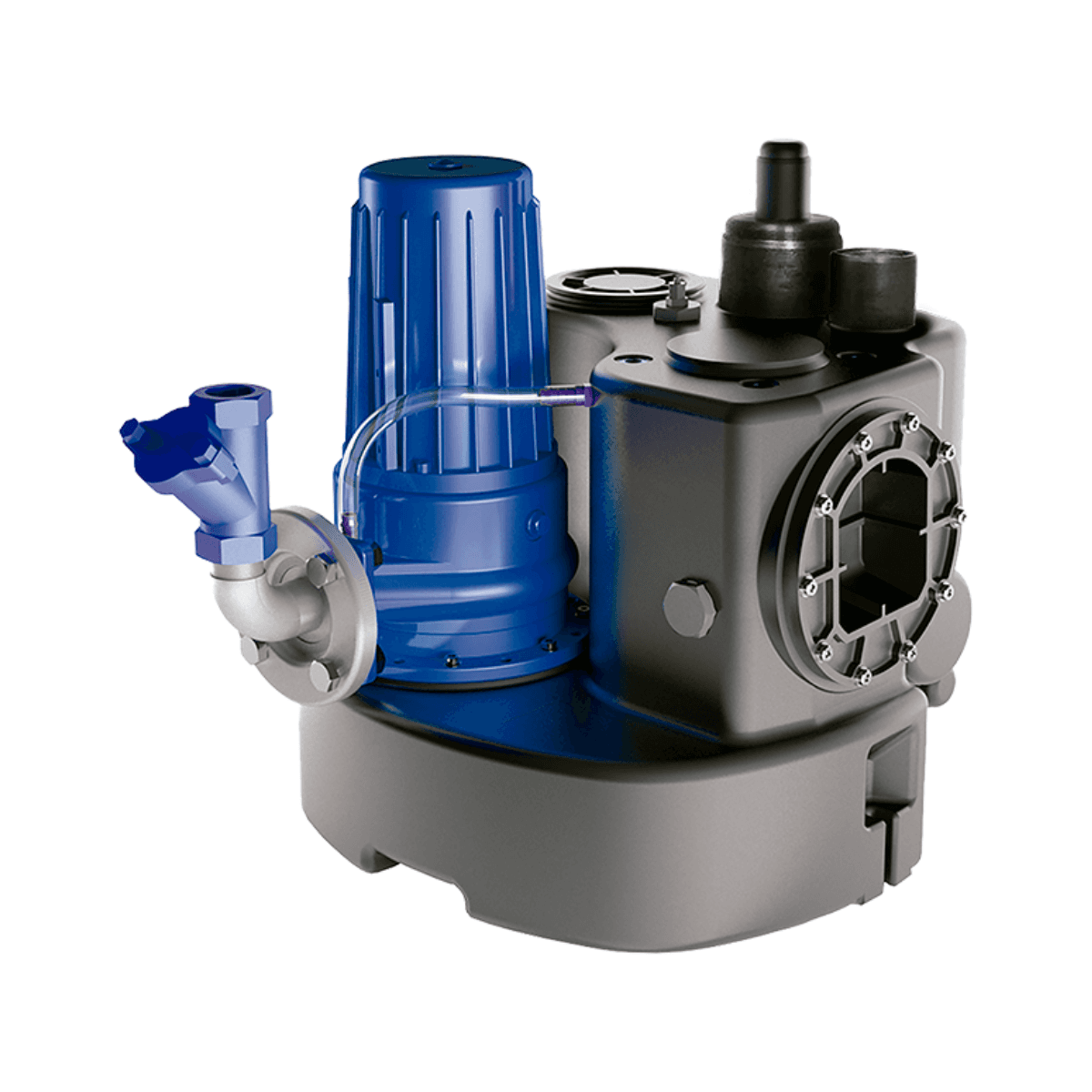

The system consists of a 55-liter high-density polyethylene (PE LD) tank and a cast iron grinder pump with Pro X K3 blades, capable of evacuating water loaded with solids without the risk of clogging. Thanks to its 1700 W (P2) motorization, it can reach a head height of up to 22 meters and a maximum flow rate of 17 m³/h, ideal for demanding applications in domestic installations.

It includes an external control panel type ZPS 1 with an integrated alarm, allowing you to monitor the equipment's operation and receive alerts in case of anomalies. The start and stop are performed through a pneumatic detection system, which improves level accuracy and reliability in daily use. This station is equipped as standard with a ball check valve, connection fittings, and multiple inlets and outlets for a complete installation.

Included Components

• 55 L PE tank with 3 inlets (DN 100 and DN 50/100)
• GG-20 cast iron grinder pump with Pro X K3 blades
• Discharge in DN 50 and ventilation Ø75 mm

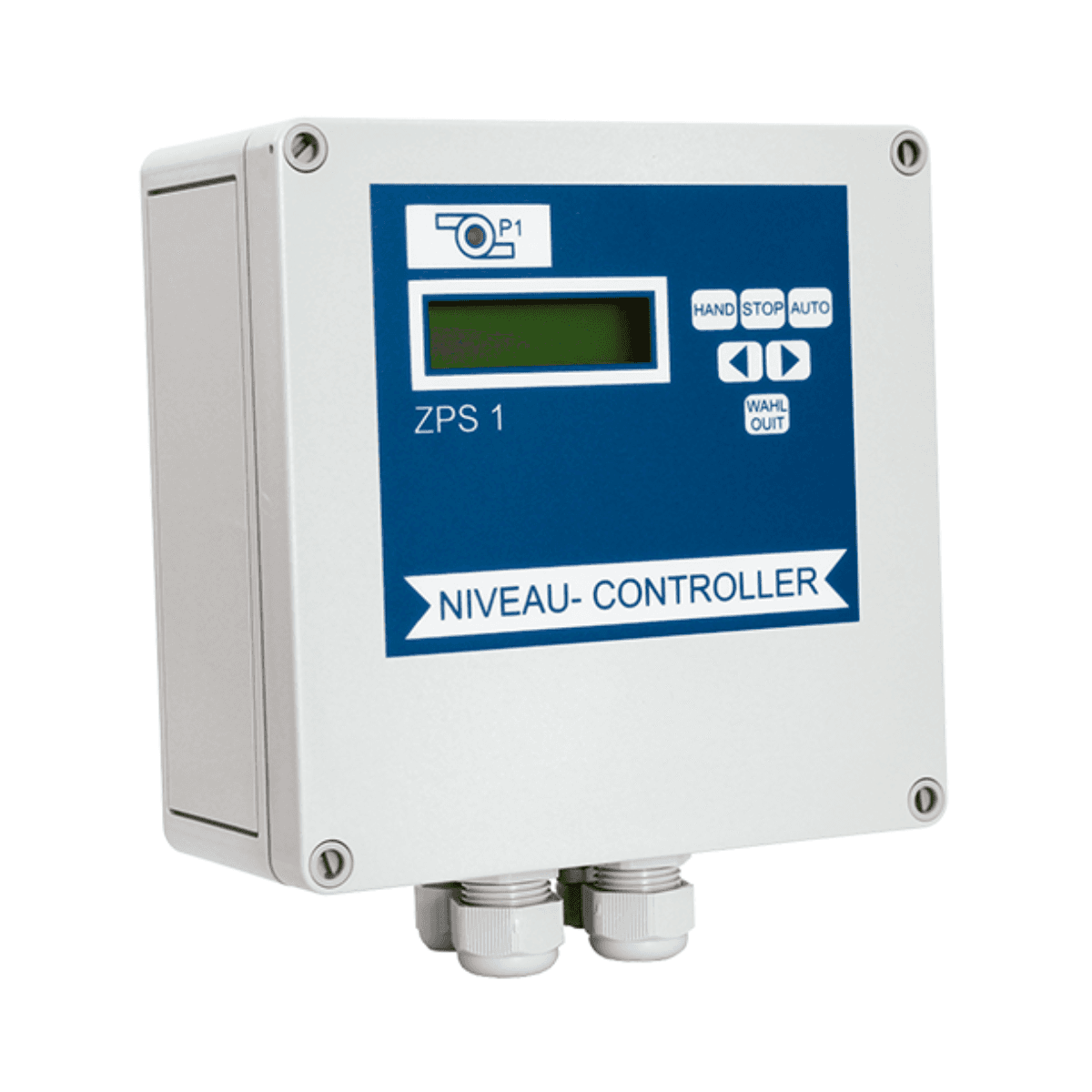

• External control panel ZPS 1 with integrated alarm
• Ball check valve and connectors included

Technical Specifications

• Motor type: Single-phase (230 V, 50-60 Hz)
• Absorbed power (P1): 2200 W
• Useful power (P2): 1700 W
• Operating mode: S3 25%
• Protection index: IP68
• Maximum head height (HMT): 22 m
• Maximum flow rate: 17 m³/h
• Maximum liquid temperature: 55 °C
• ON/OFF level: 140–250 mm / 30 mm
• Alarm level: 180–290 mm

Connections and Installation

• Inlets: 3 (DN 100 and DN 50/100)
• Discharge: DN 50
• Ventilation: Ø75 mm
• Useful volume: 55 liters
• Detection type: Pneumatic
• Gross weight: 64 kg

Main Advantages

• High-performance single-phase grinder pump
• Pro X K3 blades for effective wastewater evacuation
• Compact design and easy installation in confined spaces
• External control panel with alarm and safe operation
• Includes all necessary elements for a complete installation

Compatible Optional Components

• DIN 40 shut-off valve: Ref. VANNEDN50
• DIN 110 shut-off valve: Ref. VANNEDN100
• Ø75 active carbon filter: Ref. FILTRECUBICXLSFA

The SFA Sanicubic 1 GR SE71.1 S station is a compact, powerful, and ready-to-install solution that ensures efficient and safe wastewater pumping in domestic and light commercial installations.
