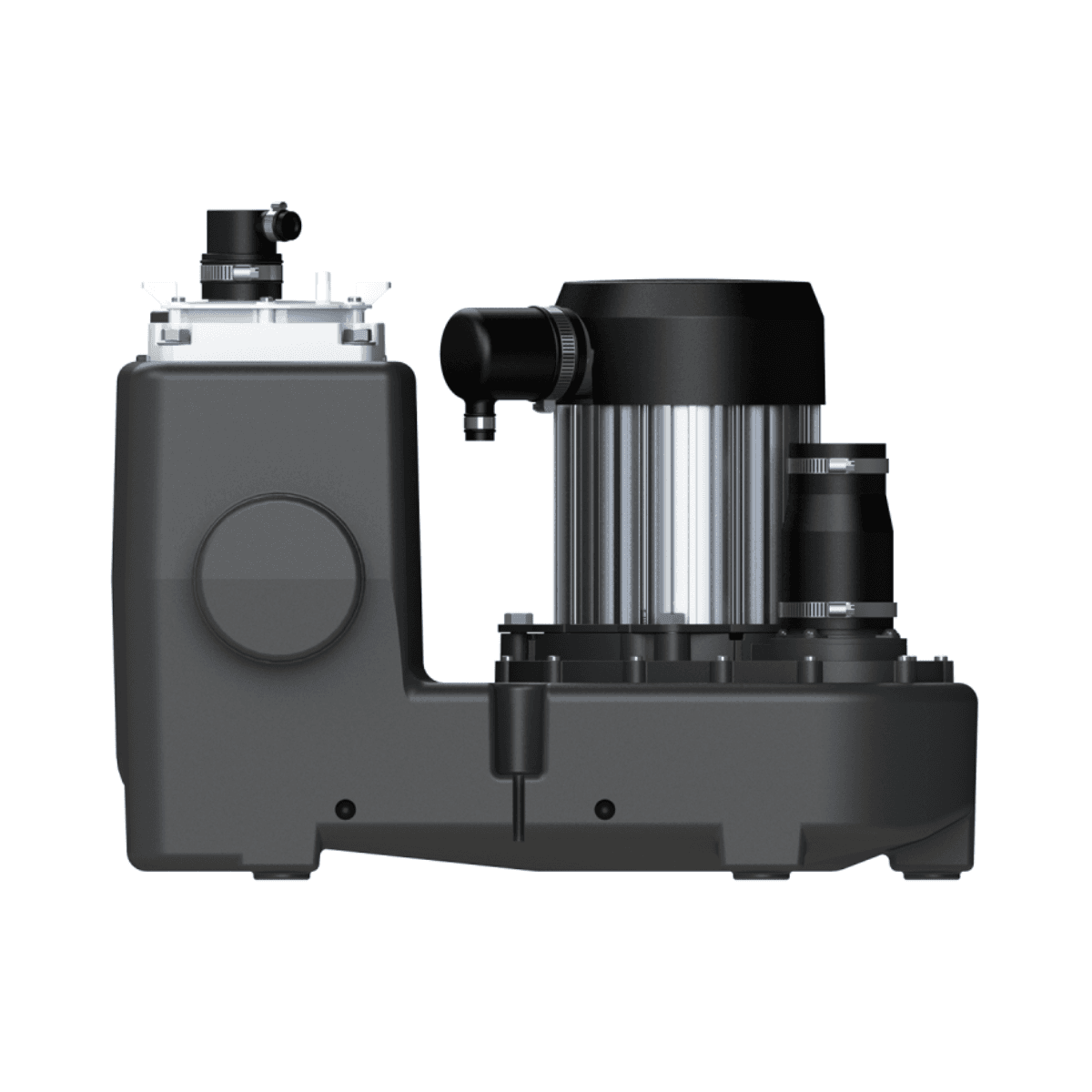

SFA Sanicubic 1 GR HP S Pumping Station

The SFA Sanicubic 1 GR HP S pumping station is a technical solution designed for the evacuation of wastewater in single-family homes, apartments, or small commercial structures. It is installed directly on the floor, simplifying integration without the need for civil works or manholes, and is equipped with a powerful motor and grinding blades to facilitate evacuation through small-diameter pipes.

Thanks to its **Pro X K2** blade turbine, this unit can evacuate black and grey water through an external Ø50 mm pipe, reaching a maximum head height of **18 meters** and a flow rate of up to **19 m³/h**. It can withstand temperatures of up to **90 °C for 5 minutes**, making it suitable for applications with water from appliances such as washing machines, industrial sinks, or hot showers.

The equipment has **two low side inlets**, providing flexibility in installation and allowing the connection of multiple sanitary appliances. The system is automatically activated by pneumatic detection and comes with a **standard control panel** that includes **audible and visual alarms**, as well as a **wired alarm**, for complete system monitoring.

The tank, with a total volume of 26 liters and a useful volume of 12 liters, is made of **high-density polyethylene (HDPE)**, and its internal components are made of technical materials such as aluminum (motor), PA 12 GF (pump body), and PP GF (turbine), ensuring resistance and durability in humid or demanding environments.

Included Components

• 26-liter HDPE tank
• Pro X K2 blade turbine
• Standard control panel with integrated alarm
• Remote wired alarm

Technical Specifications

• Turbine type: Pro X K2 blades
• Power supply voltage: 220-240 V
• Frequency: 50-60 Hz
• Absorbed power (P1): 2000 W
• Useful power (P2): 1400 W
• Operating mode: S3 30%
• Protection index: IPX8

Hydraulic Data

• Maximum head height: 18 m
• Maximum flow rate: 19 m³/h
• Inlet diameter: Ø100 mm
• Discharge diameter: Ø50 mm
• Ventilation diameter: Ø50 mm
• Total volume: 26 liters
• Useful volume: 12 liters
• Alarm level: 225 mm
• Maximum pumped liquid temperature: 90 °C (max. 5 minutes)

Identification and Logistics

• EAN Code: 3308815089614
• Reference: CUBIC1HP

Main Advantages

• Direct floor installation without the need for excavation
• Evacuation at great height or distance with constant flow
• Efficient and quiet grinding system
• Visual, audible, and wired alarms included as standard
• Ideal for homes, premises, or installations without gravity drainage

Optional Accessories

• DIN 40 shut-off valve: Ref. VANNEDN50
• DIN 110 shut-off valve: Ref. VANNEDN100
• Ø50 active carbon filter: Ref. FILTRECUBICSFA

The **SFA Sanicubic 1 GR HP S** pumping station offers a reliable, powerful, and compact solution for evacuating wastewater in environments without gravity drainage. A versatile and safe tool for renovations, extensions, or new constructions.
