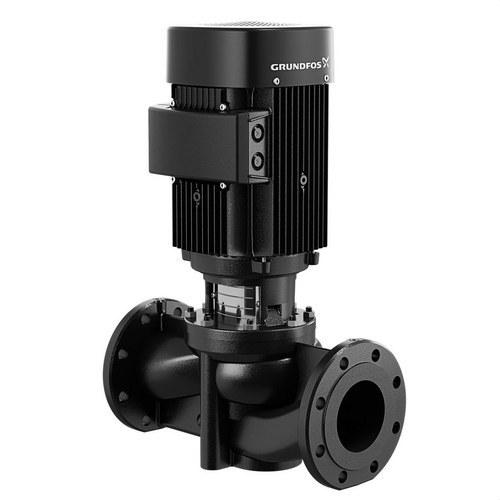

Grundfos TP 32-230/2 A-F-A-BQQE-FW1 Inline Pump

The Grundfos TP 32-230/2 A-F-A-BQQE-FW1 inline pump is a robust and efficient solution, specifically designed for air conditioning systems in commercial buildings. Manufactured by Grundfos, this pump is equipped with a dry rotor and an unbalanced mechanical seal according to EN 12756 standard, ensuring reliable performance and a long service life. It is driven by an asynchronous motor complying with IEC 60034 standards, which ensures efficient and durable operation.

With a nominal flow rate of 7.1 m³/h and a nominal head of 17 m, this pump is capable of handling applications that require high performance and stability. Additionally, it can reach a maximum head of up to 230 dm, ensuring adequate pressure at all times. The inline design of the pump facilitates its integration into existing systems, reducing the space required for installation.

Technical Specifications:

• Preset speed: 2855 rpm, ideal for maintaining a constant water flow.
• Nominal flow rate: 7.1 m³/h, making it suitable for handling large volumes of water in commercial systems.
• Nominal head: 17 m, with a maximum head of up to 230 dm, providing excellent performance in terms of pressure.
• Impeller diameter: 136 mm, ensuring optimal water flow.

Materials:

The Grundfos TP 32-230/2 pump is constructed with high-quality materials that ensure durability and resistance in challenging environments. The hydraulic body is made from EN-GJL-250 ASTM Class 35 cast iron, while the impeller is made from AISI 304 stainless steel, providing excellent corrosion resistance and reliable performance even under extreme conditions.

• Pump body: EN-GJL-250 ASTM Class 35 cast iron.
• Impeller: AISI 304 stainless steel, corrosion-resistant.

Installation:

This pump has an ambient temperature range of -30 °C to 60 °C, making it suitable for various climatic conditions. Additionally, it can operate with liquid temperatures from -25 °C to 120 °C, making it a flexible and reliable solution for different applications. Its maximum working pressure is 10 bar, ensuring adequate performance in high-demand systems.

• Connection size: DN 32.
• Nominal pressure for the connection: PN 6/10.
• Port-to-port length: 280 mm, facilitating its installation in confined spaces.
• Motor flange size: FT100.

Pumped Liquid:

The Grundfos TP 32-230/2 is designed to pump water at an operating temperature range of -25 °C to 120 °C, with a standard density of 998.2 kg/m³. This broad temperature range makes it a versatile option for different types of cooling and air conditioning systems.

• Liquid temperature range: -25 °C to 120 °C.
• Operating temperature: 20 °C.

Electrical Data:

The motor of this pump is an 80A with a nominal power of 0.75 kW, providing the necessary power to ensure efficient and constant flow. It operates at a network frequency of 50 Hz and is designed to operate at voltages of 3 x 220-240D/380-415Y V. The motor efficiency reaches 80.7% at full load, complying with the IE3 efficiency class, ensuring lower energy consumption and reduced environmental impact.

• Nominal speed: 2840-2870 rpm.
• Motor efficiency at full load: 80.7%.
• Efficiency class: IE3, ensuring efficient performance and energy sustainability.
• Number of poles: 2.
• Motor protection: IP55 protection grade, providing excellent resistance to dust and water ingress, making it ideal for industrial environments.
• Insulation class: Class F, suitable for moderate operating temperatures.

Other Details:

The Grundfos TP 32-230/2 pump has a net weight of 23.9 kg, making it a robust yet manageable solution for installation. Its transport volume is 0.08 m³, facilitating its storage and handling during shipping.

• Net weight: 23.9 kg.
• Gross weight: 27.4 kg.
• Transport volume: 0.08 m³.

In conclusion, the Grundfos TP 32-230/2 A-F-A-BQQE-FW1 inline pump is a reliable, efficient, and highly durable solution, ideal for air conditioning systems in commercial buildings that require stable operation and minimal maintenance.
