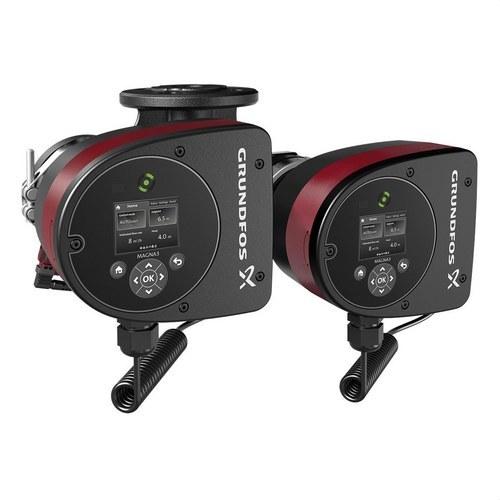

Grundfos MAGNA3 D 40-60 F Circulator Pump

The Grundfos MAGNA3 D 40-60 F circulator pump, reference 97924462, is designed to offer advanced solutions in heating and air conditioning systems for both commercial and domestic buildings. This model is an efficient and reliable option that facilitates installation thanks to its redundancy and alternation system, and its ability to communicate wirelessly between the pump's two heads. These features maximise system efficiency, reduce energy consumption, and improve the lifespan of components.

Product Applications:

This pump is especially recommended for:

• Air conditioning systems in commercial buildings.
• Heating systems in commercial buildings.
• Domestic heating systems.

With its compact and robust design, the Grundfos MAGNA3 D 40-60 F is made from high-quality materials, such as cast iron for its hydraulic body and a composite impeller, ensuring durability and resistance in demanding conditions. The pump can handle a liquid temperature range from -10°C to 110°C, making it a versatile option for a wide range of applications.

Technical Data:

• Nominal flow rate: 8.88 m³/h
• Nominal head: 4.387 m
• Maximum head: 60 dm
• Maximum working pressure: 10 bar
• Connection: DIN type, size DN 40, nominal pressure PN 6/10
• Ambient temperature range: 0 to 40 °C
• Net weight: 19.5 kg

Key Features:

• Energy Efficiency: With an energy efficiency index (EEI) of just 0.19, this pump is highly efficient, contributing to reduced energy consumption in any installation.
• Compatibility: CE, VDE, EAC, UKCA approvals, among others, ensure that this pump meets the highest international quality and safety standards.
• Simplified Installation: Its design with wireless communication between the heads allows for efficient control and automatic alternation, ensuring redundancy in case of failure of one of the heads.

Construction Materials:

• Pump body: Cast iron (EN 1561 EN-GJL-250, ASTM A48-250B).
• Impeller: Composite, which reduces wear and improves durability in continuous operations.

Electrical Performance:

• Input power: Maximum of 187 W, minimum of 12 W.
• Nominal voltage: 230 V.
• Network frequency: 50/60 Hz.
• Protection grade: X4D according to IEC 34-5.

Ease of Use:

The Grundfos MAGNA3 D 40-60 F is not only powerful and reliable but also easy to install and operate. Thanks to its modular design and wireless connectivity, users can integrate this pump into more complex heating and cooling systems without major complications. Its ability to operate under conditions of up to 10 bar working pressure and its wide liquid temperature range allow its use in various applications.

Other Features:

• Liquid temperature: During operation, the pump efficiently handles temperatures up to 60°C, which is ideal for space heating.
• Nominal pressure: PN 6/10, suitable for commercial and industrial working environments.
• Insulation class: F, ensuring protection and durability even in adverse conditions.

This pump is ideal for those seeking a reliable, efficient, and easy-to-integrate solution into their climate control or heating systems. With the backing of Grundfos, a leading manufacturer in the sector, the MAGNA3 D 40-60 F ensures superior performance and significant energy savings.
