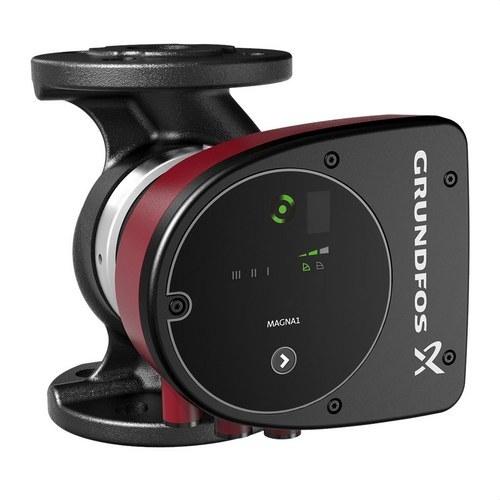

Grundfos MAGNA1 40-60 F Circulator Pump

The Grundfos MAGNA1 40-60 F circulator pump is a reliable and efficient choice for heating and air conditioning systems in commercial and domestic buildings. This pump is designed with a focus on basic functionality, making it the perfect option for replacing old circulators. With an intuitive interface, it is easy to set up and manage, ensuring optimal performance without complications. The MAGNA1 is ideal for those seeking a simple and robust solution to maintain comfort and energy efficiency in their climate control systems.

With a maximum height of 6 metres and a working pressure of up to 10 bar, the MAGNA1 40-60 F offers efficient performance in heating and air conditioning applications. Its design allows for easy installation, seamlessly integrating into existing systems thanks to its DIN connection type and DN 40 connection size.

Technical Specifications:

• Maximum height: 60 dm (6 m), ensuring good water lifting capacity for heating and air conditioning systems.
• Maximum working pressure: 10 bar, suitable for handling high-pressure systems without compromising performance.

Materials:

The Grundfos MAGNA1 40-60 F is constructed with durable, high-quality materials. The hydraulic body is made from EN 1561 EN-GJL-250 ASTM A48-250B cast iron, ensuring robust resistance to corrosion and wear. The impeller is made of composite, a lightweight and durable material that helps maintain the pump's efficient performance throughout its lifecycle.

• Hydraulic body: Cast iron EN 1561 EN-GJL-250 ASTM A48-250B.
• Impeller: Composite, for greater durability and operational efficiency.

Installation:

This pump is designed to operate in ambient temperatures ranging from 0 °C to 40 °C, making it ideal for a variety of environments. With a DIN connection type and a DN 40 connection size, installation is quick and efficient, facilitating the replacement of old pumps in existing systems.

• Connection size: DN 40.
• Nominal pressure for connection: PN 6/10.
• Port-to-port length: 220 mm, providing a compact and easy-to-install solution.

Pumped Liquid:

The MAGNA1 40-60 F is designed to pump water with a temperature range between -10 °C and 110 °C, making it a versatile choice for heating and air conditioning systems. The recommended operating temperature is 60 °C, ensuring stable performance in common heating applications.

• Liquid temperature range: -10 °C to 110 °C.
• Operating temperature: 60 °C.
• Pumped liquid density: 983.2 kg/m³.

Electrical Data:

With a maximum input power of 194 W and a minimum consumption of 12 W, the Grundfos MAGNA1 40-60 F is an energy-efficient solution for heating and air conditioning systems. Its low electrical consumption makes it an ideal choice for those looking to reduce energy consumption and operational costs without compromising performance. It operates with a nominal voltage of 1 x 230 V and is compatible with network frequencies of 50 / 60 Hz, ensuring compatibility with most commercial and domestic electrical systems.

• Maximum input power (P1): 194 W.
• Minimum P1: 12 W, for efficient operation under all demand conditions.
• Nominal voltage: 1 x 230 V.
• Network frequency: 50 / 60 Hz.
• Maximum current consumption: 1.56 A.
• Protection grade: IP X4D, ensuring protection against dust and water ingress.
• Insulation class: Class F, suitable for environments with moderate temperatures.

Other Details:

The pump has a net weight of 9.57 kg and a gross weight of 10.2 kg, making it lightweight yet robust, ideal for installation and handling in various commercial or domestic applications. Its transport volume is 0.016 m³, facilitating storage and transport.

• Net weight: 9.57 kg.
• Gross weight: 10.2 kg.
• Transport volume: 0.016 m³.

Environmental Compliance:

The Grundfos MAGNA1 40-60 F complies with important environmental standards such as CN ROHS and WEEE, ensuring that it meets sustainability and environmental respect requirements.
