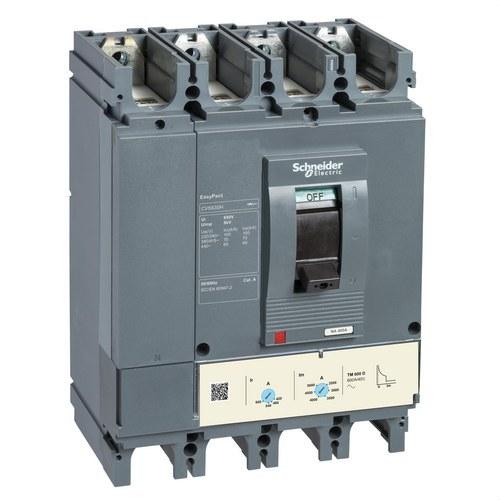

Easypact CVS630F TM600D Circuit Breaker - 4P/4R

The EasyPact CVS630F TM600D 4P/4R circuit breaker from Schneider Electric is an efficient and cost-effective solution for protecting electrical systems in small to medium-sized buildings. This high-performance, functional circuit breaker is designed to provide reliable protection against overloads and short circuits in alternating current networks, ensuring the operational safety of electrical systems.

The EasyPact CVS630F is a fixed circuit breaker with 4 poles, making it an ideal choice for applications requiring complete phase and neutral protection. With a rated current of 630A and a breaking capacity of 36 kA at 415 V AC (50/60 Hz), this model ensures safe circuit protection against high-intensity short circuit faults, preventing severe damage to equipment and installations.

The circuit breaker's control unit is equipped with thermal-magnetic trip (TMD) technology. This technology provides adjustable thermal protection to prevent prolonged overloads and fixed magnetic protection for an immediate response in case of a short circuit. Thanks to its adjustable design, the EasyPact CVS630F offers greater flexibility in configuring the protection level, adapting to the specific needs of each installation.

This model also features an optimised design for easy installation. With compact dimensions of 185 mm in height, 255 mm in width, and 110 mm in depth, the EasyPact CVS630F is easy to integrate into electrical cabinets, allowing efficient use of available space. Its installation in class II insulated cabinets according to the IEC 60664-1 standard makes it suitable for applications where protection against electric shocks is critical.

The EasyPact CVS630F not only complies with the strictest international standards, such as IEC 60947, CCC, and EAC, but is also designed to operate in 415 V AC networks at 50/60 Hz frequencies, making it a versatile solution for different types of installations. This circuit breaker is suitable for applications in industrial, commercial, and service sectors where robust and reliable protection is required.

In addition to its breaking capacity of 36 kA at 415 V AC, the circuit breaker also offers a breaking capacity of 40 kA at 240 V AC and 30 kA at 440 V AC, ensuring reliable performance in different network configurations. This makes it a versatile option for protecting electrical systems in various industrial applications.

The design of the EasyPact CVS630F has also been optimised for efficiency, helping installers reduce wiring time and associated costs. The circuit breaker is equipped with an ergonomic lever that facilitates manual operation, simplifying both installation and maintenance, ensuring comfortable and safe handling.

Thanks to its integration into Schneider Electric's EcoStruxure Power architecture, the EasyPact CVS630F not only provides reliable and effective protection but also aligns with sustainability and energy efficiency goals. This allows users to not only protect their electrical installations but also contribute to reducing environmental impact and improving operational efficiency.

In summary, the EasyPact CVS630F circuit breaker from Schneider Electric is a robust and economical solution for the protection of electrical systems. With its breaking capacity of 36 kA and adjustable thermal-magnetic control unit, this circuit breaker is ideal for applications in small to medium-sized buildings that require reliable protection against overloads and short circuits. Additionally, its compact design and ease of installation make it an efficient and practical option for installers.

• 630A 4-pole circuit breaker with a breaking capacity of 36 kA at 415 V AC, ideal for protecting electrical systems in small to medium-sized buildings.
• Adjustable thermal protection against overloads and fixed magnetic protection against short circuits for a fast and safe response.
• Compact design, easy installation, and compatibility with class II electrical cabinets according to the IEC 60664-1 standard.
