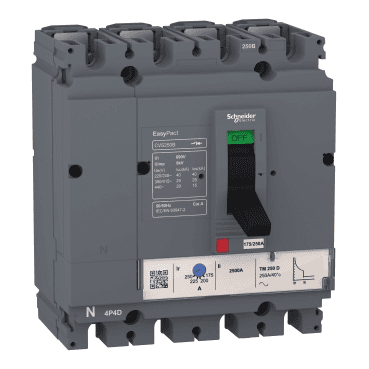

Easypact CVS160B TM160D Circuit Breaker 4P/4R

The Easypact CVS160B TM160D 4P/4R circuit breaker by Schneider Electric is an efficient and economical solution designed to protect electrical installations in small and medium-sized buildings. This model from the EasyPact range offers excellent performance combined with a compact and robust design, ideal for ensuring the electrical protection of systems across a wide range of applications.

With a rated current of 160 A at 40 °C, the Easypact CVS160B provides advanced protection against overloads and short circuits thanks to its thermal-magnetic trip unit (TMD). The TMD unit allows precise adjustments in thermal protection (against overloads) while the magnetic protection (against short circuits) is predefined, thereby ensuring the safety of electrical systems against any variations in current flow.

This circuit breaker has a breaking capacity of 25 kA at 415 VAC and 20 kA at 440 VAC, making it a reliable option for protecting installations against high-intensity events. Additionally, the model offers surge resistance of up to 8 kV, ensuring additional protection against transient overvoltages.

The Easypact CVS160B is designed with 4 poles and uses thermal-magnetic tripping technology, providing complete protection for phases and neutral (4R configuration). Its ability to handle thermal settings between 112 A and 160 A allows for customised protection according to the specific needs of the installation, while the fixed instant detection of 1,250 A ensures an immediate response to short circuits.

Among its main advantages, the model includes:

• Mechanical durability of up to 25,000 cycles, ensuring a long lifespan and reliable operation over time, even in environments with intensive use.
• Electrical durability of 12,000 cycles at 415 V, reinforcing its resistance to the operational demands of high-activity installations.
• Ease of installation, as it can be mounted in a fixed manner via a backplate, with front connections at both ends to facilitate integration into electrical panels.

Key technical data:

• Rated current: 160 A
• Breaking capacity:
  • 25 kA at 380/415 VAC
  • 20 kA at 440 VAC
  • 40 kA at 220/240 VAC
• Control unit: Thermal-magnetic (TMD)
• Protection: Adjustable overload protection (thermal) and short circuit protection (magnetic)
• Frequency: 50/60 Hz
• Surge resistance: 8 kV
• Thermal protection adjustment range: 112 - 160 A
• Mechanical durability: 25,000 cycles
• Electrical durability: 12,000 cycles
• Contact position indicator: Yes
• Dimensions: 140 mm width, 161 mm height, and 86 mm depth
• Weight: 1.9 kg

Additional features:

The Easypact CVS160B also stands out for its ease of use and maintenance. It is equipped with a control handle that allows intuitive operation of the circuit breaker, and features a contact position indicator that facilitates monitoring the status of the breaker at all times. Furthermore, it complies with international standards IEC 60947, ensuring it meets the highest safety and quality standards in the electrical industry.

This model is optimised for installation on backplates, with a screw connection system that facilitates mounting and ensures a stable and secure connection. The connection pitch is 35 mm, offering flexibility when integrating the breaker into different electrical panel configurations.

In terms of performance, the Easypact CVS160B is designed to operate efficiently on alternating current (AC) networks with an operating voltage of up to 440 VAC. Its robustness and high breaking capacity make it suitable for handling intensive electrical loads in commercial and residential buildings.

Additional benefits:

• Total protection: Thanks to its combination of thermal and magnetic protection, this breaker fully protects electrical circuits against overloads and short circuits, ensuring continuity of electrical service and minimising risks.
• Adjustable flexibility: The adjustable range of thermal protection allows the breaker to be adapted to various operating conditions, providing customised protection.
• High durability: With a mechanical durability of 25,000 cycles and an electrical durability of 12,000 cycles, the Easypact CVS160B is designed to last many years under normal operating conditions.

The Easypact CVS160B TM160D is an excellent choice for those seeking robust, reliable, and economical protection for their electrical installations, ensuring safe and efficient operation.
