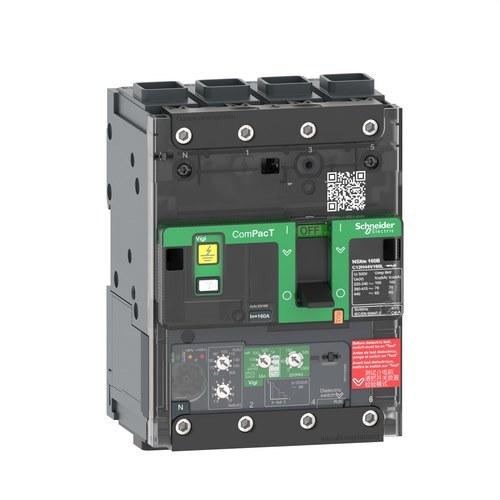

ComPacT NSXm160E Circuit Breaker 16kA AC 4P 160A Micrologic 4.1 ELINK

The Schneider Electric ComPacT NSXm160E 16kA AC 4P 160A Micrologic 4.1 ELINK circuit breaker is a compact and efficient solution designed to provide reliable electrical protection in industrial and commercial applications. This model is part of the ComPacT NSX range, noted for its reduced size and innovative features, making it an ideal choice for installations where space is a critical factor. With a breaking capacity of 16kA at 415V AC and compatibility with networks up to 440V AC at 50/60 Hz, the ComPacT NSXm160E ensures optimal protection against overloads, short circuits, and earth faults.

The ComPacT NSXm160E is equipped with advanced Everlink connection technology, ensuring a robust and secure connection even in environments with vibrations or thermal fluctuations. This technology significantly reduces the risk of loose connections, improving the overall safety of the installation and extending the system's lifespan. Additionally, it offers up to a 40% reduction in assembly and wiring time, greatly simplifying installation and allowing for greater efficiency in projects requiring rapid implementation.

This 4-pole residual current circuit breaker (ELCB) is one of the most compact on the market, with dimensions of only 108 mm wide, 144 mm high, and 80 mm deep. This design allows for seamless integration into confined spaces without compromising protection capability or ease of use. The ComPacT NSXm160E also includes flexible mounting options, whether on DIN rail or plate, offering great adaptability to different types of electrical panels.

The integrated Micrologic 4.1 ELINK control unit provides advanced protection, including features such as earth fault detection, overloads, and instantaneous short circuits. Thanks to its ability to be easily configured and monitored through Schneider Electric's EcoStruxure software, the selection, configuration, and commissioning process of the ComPacT NSXm160E is straightforward and efficient. This allows for more intuitive equipment lifecycle management, leading to greater resource optimisation and reduced downtime.

Key Technical Specifications:

• Breaking Capacity (Icu): 16kA at 415V AC, providing reliable protection for applications requiring a high response capacity to electrical faults.
• Rated Current (In): 160A at 40°C, making it suitable for applications with high loads under normal operating conditions.
• Rated Operational Voltage (Ue): 440V AC 50/60 Hz, offering versatility for a variety of applications in alternating current networks.
• Flexible Mounting: Compatible with both DIN rail and plate mounting, facilitating integration into different electrical cabinet configurations.
• Everlink Connection Technology: Ensures secure and durable connections, even in environments with vibrations or temperature changes, minimising the risk of failures.

The ComPacT NSXm160E complies with international standards IEC 60947, CCC, and EAC, as well as marine specifications, ensuring it meets the most stringent safety and performance standards. This certification makes it a reliable choice for use in a wide range of industrial and commercial applications, including installations in maritime environments and other demanding industrial settings.

Additional Features:

• Compact Design: Its reduced size allows for up to 40% space saving in installation, which is essential in electrical panels where space is limited.
• Reduced Installation Time: Thanks to its ergonomic design and Everlink technology, assembly and wiring time is significantly reduced, allowing for faster and more efficient implementation.
• EcoStruxure Management: Integration with EcoStruxure software allows for easy configuration and monitoring of the breaker, improving operational efficiency and facilitating lifecycle management of the equipment.

This circuit breaker is designed to deliver maximum performance in the smallest possible space, making it an ideal solution for applications where the size of the electrical panel is a limitation. Its ability to handle a wide range of protections, along with its ease of installation and configuration, makes it an indispensable tool for protecting critical electrical systems in industrial and commercial environments.

The Schneider Electric ComPacT NSXm160E 16kA AC 4P 160A Micrologic 4.1 ELINK is a comprehensive solution that not only optimises space and protection but also simplifies installation and maintenance processes, ensuring electrical installations operate efficiently and safely at all times.
