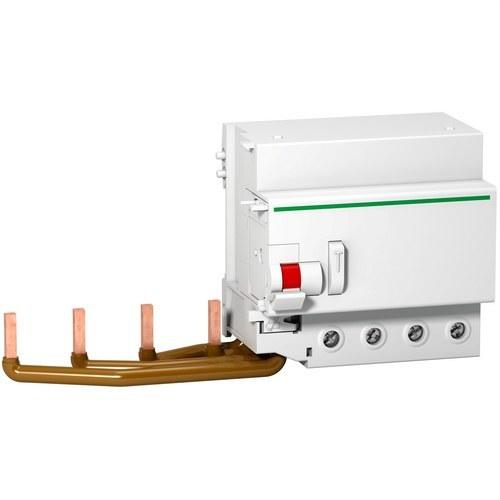

VIGI C120 Differential Block 125A 4P 300S MA AC ADAPTABLE R

The Vigi C120 125A 4P 300mA AC differential block from Schneider Electric is an additional protection device designed to ensure safety in electrical installations by detecting and protecting against earth leakage, short circuits, and overloads. This product is part of the Acti9 range, known for its reliability and ease of installation, and is designed to operate in alternating current networks with voltages from 230 to 415 V.

With a nominal current of 125A and 4-pole protection, this differential block provides comprehensive safety for high-capacity electrical systems. It is ideal for industrial and commercial applications where a high level of protection against electrical faults is required. The 300mA sensitivity ensures the detection of earth leakages, reducing the risk of dangerous electric shocks and helping to prevent electrical fires caused by insulation failures.

The Vigi C120 is a selective device, meaning it can be coordinated with other differential protection devices in the same installation, ensuring that only the affected circuit is disconnected in the event of a current leakage, minimizing disruptions to the overall system operation.

This differential block features voltage-independent technology, ensuring reliable operation even under voltage variation conditions, offering continuous and efficient protection. Its modular design allows for easy integration into standard electrical panels and mounts on a 35 mm symmetrical DIN rail, facilitating installation and maintenance.

The Vigi C120 complies with the strictest international standards, such as the EN 61009 standard, ensuring that its design and performance meet the highest electrical safety standards. Additionally, it has an electrical endurance of up to 20,000 cycles, making it a highly durable device, ideal for long-term applications in demanding environments.

In terms of protection against environmental conditions, the IP20 protection rating ensures safety against accidental contact, while the IP40 rating provides additional protection when mounted in a suitable enclosure. This makes the Vigi C120 suitable for both indoor and outdoor use, as long as it is adequately protected.

The device's compact dimensions (198 mm wide, 95 mm high, and 73 mm deep) and its weight of only 0.58 kg make it easy to install in confined spaces, optimizing space usage in distribution panels. The product's white color (RAL9003) also allows it to aesthetically integrate into most electrical installations.

The Vigi C120 block is designed to operate in a wide range of temperatures, from -5°C to 60°C, making it suitable for use in industrial or commercial environments with variable environmental conditions. Additionally, it can withstand extreme storage temperatures from -40°C to 60°C, ensuring the device remains in optimal condition until installation.

With an insulation voltage of 500 V and an impulse withstand voltage of 6 kV, the Vigi C120 provides robust protection against overloads and short circuits, ensuring the operational continuity of electrical installations. This differential block is a highly reliable solution for protecting both people and equipment in various electrical applications.

In summary, the Vigi C120 differential block from Schneider Electric is an excellent choice for ensuring protection and safety in industrial and commercial electrical installations. With its ability to handle currents up to 125A, its 300mA sensitivity, and its robust and ergonomic design, this device provides comprehensive protection against earth leakages, overloads, and short circuits, ensuring reliable and durable performance.

• 125A and 4-pole differential block, ideal for industrial and commercial applications.
• 300mA sensitivity, AC class, for protection against earth leakages, overloads, and short circuits.
• Easy installation on a 35mm DIN rail and compatible with AC networks from 230 to 415 V.
