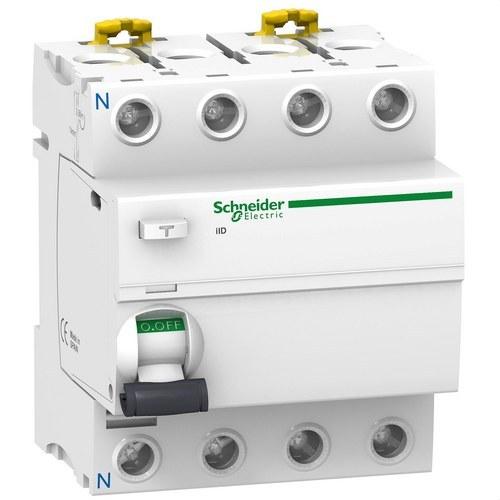

Acti9 iID 4P 63A 300mA-S AC Differential

The Acti9 iID 4P 63A 300mA-S AC differential, reference A9R15463 from Schneider Electric, is a reliable and highly efficient residual current circuit breaker designed to provide electrical protection against earth leakage in residential, commercial, and industrial installations. This breaker, also known as an RCCB (Residual Current Circuit Breaker), is designed to automatically disconnect the electrical circuit in case of current leakage, thus preventing the risk of electric shocks and reducing the danger of fires caused by electrical faults.

This 4-pole differential breaker offers a rated current of 63A and a sensitivity of 300mA, making it an ideal choice for protecting larger installations or areas requiring an advanced level of safety. Its AC type protection class ensures it detects alternating current leaks, making it suitable for standard AC applications.

Main Technical Features:

• Rated Current [In]: 63 A
• Earth Leakage Sensitivity: 300 mA
• Number of Poles: 4P
• Earth Leakage Protection Class: AC Type (detects alternating currents)
• Nominal Operating Voltage [Ue]: 380-415 V AC
• Nominal Insulation Voltage [Ui]: 500 V AC
• Operating Frequency: 50/60 Hz

This Acti9 iID differential is equipped with a mechanical trip indicator, which facilitates quick identification of the faulty circuit in case the device trips. Additionally, the integrated VisiSafe system provides visual confirmation of the device's status via a green strip on the lever, indicating when the poles are fully open, ensuring greater safety during maintenance operations.

Advanced Safety and Protection:

The Acti9 iID differential breaker offers effective protection against the risk of electric shocks caused by indirect contact and can prevent fire hazards resulting from electrical faults, as it automatically disconnects the circuit upon detecting current leaks exceeding 300mA. Its nominal breaking capacity of 1500 A and its conditional short-circuit current of 10 kA allow it to operate safely in case of overcurrents, protecting both people and equipment.

Durability and Resistance:

This breaker is designed to withstand a mechanical durability of up to 20,000 cycles, and an electrical durability of up to 15,000 cycles under normal operating conditions, ensuring reliable performance throughout its lifespan. Additionally, its resistance to voltage surges of up to 6 kV makes it suitable for protecting against disturbances in the electrical network.

Installation and Compatibility:

The Acti9 iID differential is compatible with DIN rail mounting electrical systems, facilitating its integration into modular electrical panels. Its width is 8 modules of 9 mm, allowing for easy installation in confined spaces. It also includes terminals that accommodate rigid cables up to 35 mm² and flexible cables up to 25 mm², with a recommended tightening torque of 3.5 N.m, ensuring a robust and secure connection.

Dimensions and Design:

• Height: 91 mm
• Width: 72 mm
• Depth: 73.5 mm
• Weight: 0.37 kg
• Color: White (RAL 9003)

Additional Benefits:

• VisiSafe: The green strip on the lever provides visual confirmation of complete circuit disconnection, ensuring safety during downstream maintenance interventions.
• Fault Indicator: A unique mechanical trip indicator allows for quick identification of the faulty circuit, reducing diagnosis and repair time.
• Resistance and Durability: With mechanical resistance of up to 20,000 cycles and electrical resistance of up to 15,000 cycles, this breaker ensures reliable protection for years.
• Standards: Complies with the EN/IEC 61008-1 standard, ensuring maximum safety and quality in electrical installation protection.

This differential breaker is an effective and safe solution for protecting electrical installations against electric shocks and other risks associated with current leaks. The Acti9 iID 4P 63A 300mA-S AC from Schneider Electric is ideal for any installation seeking a high level of protection, easy installation, and reliable operation over time.
