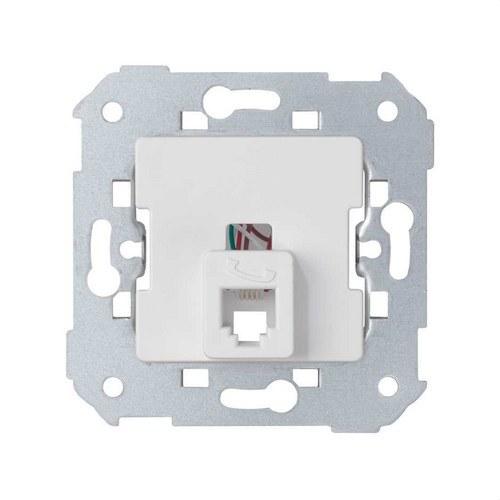

Telephone Socket with 6 RJ12 Contacts White Simon 75

The Simon 75 White RJ12 6-Contact Telephone Socket (ref. 75481-30) is a reliable and efficient solution for telephone installations in homes, offices, and professional spaces. Part of the renowned Simon 75 series, it combines quality, easy installation, and a clean white design that fits any environment.

It features a 6-contact RJ12 connector, ensuring a stable and secure connection. Its single-screw terminal system makes assembly quick and convenient. Additionally, the insertion-type mechanism optimizes internal connectivity for consistent performance.

Manufactured with halogen-free insulated metal components and a thermoplastic cover, it guarantees safety and durability. It complies with the TIA 568 C.2 standard, ensuring high-quality telecommunications installations.

Main technical features:

• Series: Simon 75
• Format: RJ
• Connector type: RJ12
• Number of connectors: 1
• Number of contacts: 6
• Number of cables: 2
• Supported cable section: 0.3 – 0.5 mm²
• Terminal connection type: screw
• Required cable stripping: 12 mm
• Protection rating: IP20
• Operating temperature: 5 – 40 ºC
• Version: individual
• Certification: CE

Compatibility:

• Simon 28 frames
• Simon 75 frames
• Simon 82 Detail
• Simon 82 Nature
• Simon 82
• Simon 88

Installation:

• Can be installed in a universal flush-mounted box
• Suitable for surface or flush mounting
• Large internal space for easy wiring
• Visible wiring diagram for simplified connection
• Secure fixing with metal claws

The Simon 75 series stands out for its excellent value for money, offering durable solutions with a modern and functional design. This telephone socket is a clear example, combining easy installation, safety, and performance.

A practical and safe choice to keep your telephone connections always reliable, backed by one of the most highly rated series on the market.
