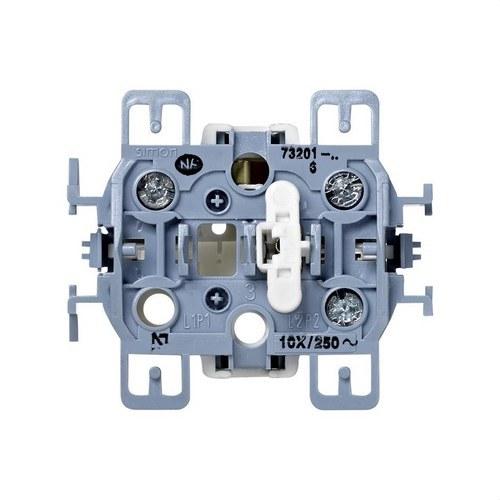

Switch with screw terminal system Simon 73

The switch with screw terminal system from the Simon 73 Loft series combines functionality, safety, and modern design, offering a versatile and durable solution for electrical installations. Its rocker mechanism provides comfortable and precise operation, while the quality of its materials ensures maximum safety and resistance.

Manufactured with metal components and halogen-free thermoplastic insulation, this switch protects the room in case of fire by preventing the spread of flames and reducing toxicity. It withstands a wide temperature range, from -25 to 50 ºC, ensuring reliable performance even in extreme conditions.

This model is designed to operate with a voltage of 250 V~ and a current of 10 AX, supporting cable sections between 1.5 and 2.5 mm, with a recommended stripping length of 13 mm. Its screw terminal system allows for a secure and stable installation, with the option to implement an indicator function using an indicator support and key with a viewer.

Main features:

• Series: Simon 73 Loft
• Type of mechanism: Rocker (Pivoting)
• Terminal: Screw system
• Voltage: 250 V~
• Current: 10 AX
• Supported cable section: 1.5 to 2.5 mm
• Cable stripping: 13 mm
• Elements: 1
• IP20
• Temperature range: -25 to 50 ºC
• Compatible with indicator function using indicator support and key with viewer

Compatibility:

• Simon 73 Loft frames
• Simon 73 frames

Installation:

• Suitable for surface installation
• Screw connection
• Simple and safe installation

Package contents:

• Mechanism with screw terminal

This Simon 73 Loft switch combines design, safety, and ease of installation, making it ideal for both residential and professional projects, ensuring safe and long-lasting use in any room.
