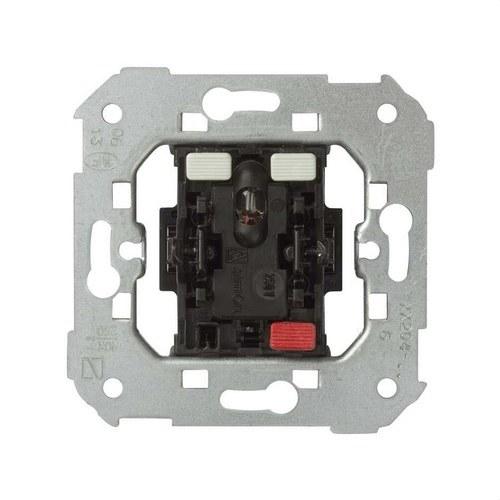

Switch with built-in light and quick terminal system Simon 75

The Simon 75 switch with built-in indicator light is a control mechanism designed for electrical installations that require reliability, easy assembly, and convenient everyday operation. It features an integrated indicator light that makes it easy to locate the switch in low-light environments, adding a functional touch to your installation.

This mechanism is equipped with a quick-connect terminal system, allowing for fast and secure connections and significantly reducing installation time. It is designed to operate with a current of 10 AX and voltage of 250V, meeting the quality and safety standards required for electrical installations.

The switch is made with metal components insulated with halogen-free thermoplastic, enhancing safety in the event of a fire by reducing the emission of toxic gases. It also offers high thermal resistance and is designed to function properly in environments with temperatures between 5 ºC and 40 ºC.

This product belongs to the renowned Simon 75 series, a range known for its versatility, design, and broad compatibility with various Simon frame collections. As a result, it allows you to create aesthetic and functional installations tailored to any type of space, from homes to offices or commercial premises.

Main features:

• Type of mechanism: Switch with indicator light
• Series: Simon 75
• Current: 10 AX
• Rated voltage: 250 V~
• Frequency: 50 Hz
• Number of contacts: 3
• Number of wires: 3
• Accepted wire section: 1.5 – 2.5 mm²
• Consumption indicator: 1 mA
• Type of key: Rocker
• Type of mechanism: Pivot
• IP rating: IP20
• Number of elements: 1
• Connection type: Quick-connect terminal
• Mounting type: Screw-fixed
• Installation: Suitable for surface and flush mounting
• Installable in universal flush mounting box
• Installation orientation: Horizontal
• Cutout size: 40 mm
• Depth: 39 mm
• Required cable stripping: 15 mm
• Operating temperature: 5 ºC to 40 ºC
• Storage temperature: -25 ºC to 50 ºC
• Material: Metal and plastic with halogen-free thermoplastic insulation

Compatibility:

• Simon 75 frames
• Simon 82 frames
• Simon 82 Detail
• Simon 82 Nature
• Simon 82 Concept

The packaging includes the mechanism ready for installation, ensuring a reliable and durable solution for any modern electrical installation.

If you are looking for a robust, easy-to-install switch with the quality that defines Simon, this model from the 75 series is a safe choice for professionals and individuals seeking a reliable and long-lasting electrical installation.
