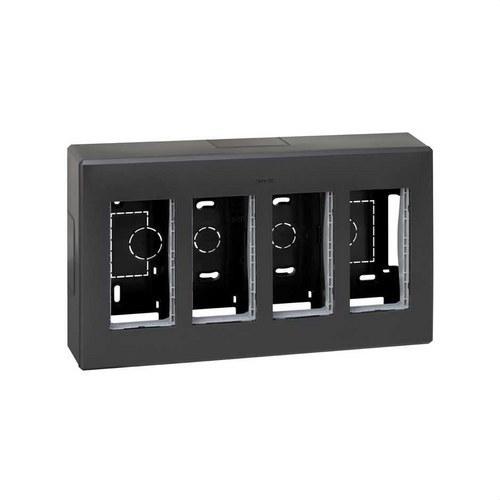

Surface wall box for 4 double graphite elements Simon 500 Cima

The Simon 500 Cima Surface Wall Box for 4 Double Elements in graphite finish is designed to deliver high performance and optimal protection for electrical and electronic systems in both professional and residential environments. Its robust and functional design makes it an ideal solution for offices, commercial spaces, and homes where a safe and durable installation is required.

With dimensions of 286 x 167 x 59 mm, this box can house up to 8 modules, providing excellent integration capacity for different mechanisms. It belongs to the Simon 500 Cima series, renowned for its focus on safety, versatility, and ease of surface installation.

The structure is made of halogen-free thermoplastic material, ensuring no flame propagation in case of fire and low smoke toxicity, significantly increasing the safety of the environment. Additionally, it offers high resistance to shocks and impacts, with an IK07 rating.

• Series: Simon 500 Cima
• Version: 4 double elements
• Finish: graphite (RAL 7021)
• Material: halogen-free thermoplastic plastic
• Number of modules: 8
• Installation: surface wall

The box features multiple cable entry options, making installation and internal system organization easier:

• 16 holes for clamps
• 2 pre-punched holes of 30 x 50 mm
• 2 pre-punched holes Ø20 mm
• 2 pre-knocked holes Ø25 mm
• 5 side entries

In terms of electrical safety, it offers a dielectric strength of 2000 V at 50 Hz for 1 minute without perforation or tracking, as well as an insulation resistance greater than 5 MΩ at 500 V. Electromagnetic immunity for VDM wiring is ensured by installing the included metal partition.

• Compatibility: Simon 500 Cima and Simon 27 Play / Simon K45 mechanisms via adapter
• Protection rating: IP4X
• Maximum working temperature: +60 ºC
• Installation temperature range: -5 to +60 ºC
• Heat resistance: +125 ºC
• Extinction: +850 ºC / 30 s (GWFI)
• Number of housings for grounding connection: 2

The product comes with all the necessary components for installation: surface box, metal partition, grounding cable, fixing plugs, screws, and installation manual. The frame removal and component extraction are performed only with tools, providing an extra level of safety.

Maintenance is simple and quick; just clean the surface with a soft, dry cloth, avoiding abrasive products or those containing chlorine.

A surface box designed for demanding professionals seeking safety, durability, and a reliable solution for high-level electrical installations.
