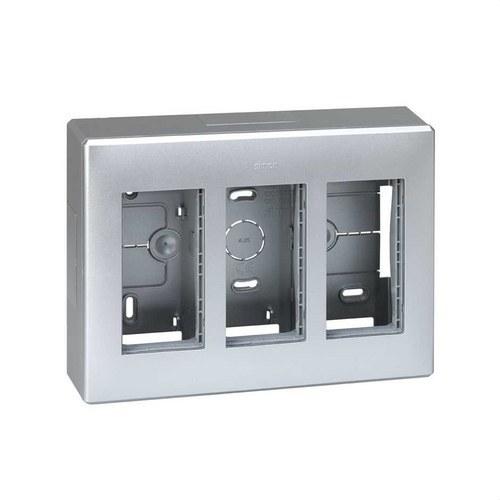

Surface wall box for 3 double elements aluminium Simon 500 Cima

The surface wall box for 3 double elements from the Simon 500 Cima series in aluminum finish is a robust and versatile solution designed for professional electrical installations that require reliability, safety, and a refined appearance. Its design accommodates up to 6 modules, offering great integration capacity for mechanisms in a single point.

Made from high-quality plastic material, this box ensures high mechanical resistance and durability, capable of withstanding demanding usage conditions. It also features an IP4X protection rating, providing protection against the entry of solid objects, making it suitable for indoor installations where an additional level of safety is required.

This box is designed to be compatible with Simon 500 Cima systems and, with a specific adapter, with Simon 27 Play and Simon K45 mechanisms, significantly expanding its integration possibilities for different projects.

Installation is performed vertically and on the surface, making it easy to mount in various environments without the need for construction work. It includes all the necessary elements for a complete installation:

• Surface box
• Metal partition
• Grounding cable
• Fixing plugs
• Screws
• Installation manual

The system features multiple entries and pre-punched holes to facilitate cable routing:

• 5 side entries
• 10 holes for clamps
• 2 pre-punched holes of 30 x 50 mm
• 2 pre-punched holes Ø20 mm
• 1 pre-knocked hole Ø25 mm

Additionally, it includes an electromagnetic immunity system for VDM wiring, guaranteed by the correct installation of the metal partition, ensuring optimal performance in environments with potential interference.

In terms of electrical safety, the box meets high protection standards:

• Dielectric strength: no puncture or tracking with 2000 V at 50 Hz for 1 minute
• Insulation resistance: >5MΩ at 500 V
• Heat resistance: up to +125 ºC (according to IEC 60695-10-2)
• Glow-wire test: +850 ºC for 30 seconds (GWFI according to IEC 60695-2-11)

The system also includes 2 housings for grounding connection, ensuring a safe and compliant installation. Its IK7 rating provides good resistance to mechanical impacts, suitable for intensive use environments.

Regarding working conditions, the box withstands a temperature range of -5 to +60 ºC during installation and a maximum operating temperature of +60 ºC, ensuring performance under normal usage conditions.

Main features:

• Series: Simon 500 Cima
• Configuration: 3 double elements (6 modules)
• Finish: Aluminum
• Material: High-resistance plastic
• Installation: Surface wall
• Installation orientation: Vertical
• Dimensions: 223 x 167 x 59 mm
• Depth: 50 mm
• IP rating: IP4X
• IK rating: 7
• Market availability: CE

Notes:

• Compatible with Simon 500 Cima systems
• Adaptable to Simon 27 Play and Simon K45 with adapter
• Additional fixing possible by screwing
• Designed for maximum versatility in professional installations

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products
• Avoid cleaners with chlorine

A solution designed for those seeking organization, safety, and integration capacity in their installations, with a reliable design that meets daily demands without complications.
