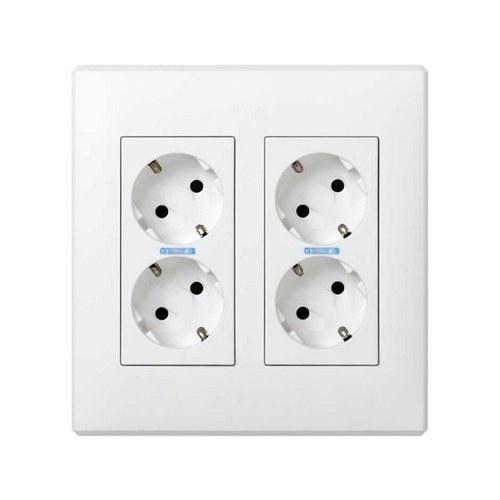

Surface or Flush Wall Box Kit for 2 Double Elements with 2 Double White Socket Outlets Simon 500 Cima

The surface or flush wall box kit with 2 double socket outlets Simon 500 Cima, reference 51000201-030, is a complete solution designed to provide a practical, safe electrical installation ready to power multiple devices at a single point. This set belongs to the renowned Simon 500 Cima series, a range specially developed for environments where functional and robust electrical distribution is required.

The kit includes two double Schuko socket outlets, allowing you to have four power outlets in a single compact unit. Thanks to its white finish, it easily integrates into any environment, whether in homes, offices, workspaces, or technical installations.

The system is designed for installation either flush-mounted or surface-mounted, offering great flexibility according to project needs. To complete the installation, the kit must be combined with the flush wall box (ref. 51020102-039) or the surface wall box base (ref. 51050002-030).

Manufactured from high-quality plastic with metal components insulated by self-extinguishing, halogen-free thermoplastic, this set guarantees a high level of safety. These materials help prevent the spread of flames in case of fire and reduce smoke toxicity, increasing protection for people and the installation.

The connection system includes cut-in terminal (1 click®) and also screw connection options, making the installer’s job easier and allowing for quick and reliable installation.

Main features:

• Wall kit from the Simon 500 Cima series.
• Includes 2 double Schuko socket outlets.
• Provides 4 power outlets in a single unit.
• White finish (RAL 9003).
• Can be installed surface-mounted or flush-mounted.
• Made of durable plastic with insulated metal components.
• Self-extinguishing and halogen-free material for enhanced safety.
• Direct clip-on mounting system.

Kit contents:

• Wall kit.
• Metal partition.
• Earth wire.
• Installation manual.

Technical data:

• Format: Schuko.
• Rated voltage: 250 V~.
• Current: 16 A.
• Number of modules: 4.
• Number of sockets: 2 double outlets.
• Protection rating: IP20.
• LED consumption indicator: 0.55 mA.
• Insulation resistance: >5 MΩ at 500 V.
• Dielectric strength: no puncture or tracking at 2000 V, 50 Hz for 1 minute.
• Heat resistance: +125 ºC (according to IEC 60695-10-2).

Connection and wiring:

• Admitted cable section: from 1.5 to 2.5 mm².
• Number of connections per terminal: 1 cut-in terminal and 2 screw terminals.
• Number of terminals: 3 inputs and 3 outputs.
• Connection type: cut-in (1 click®).

Dimensions:

• Overall dimensions: 157 x 164 x 46 mm.
• Flush installation opening: 141 x 135 mm.
• Distance between flush boxes for optimal alignment: 22 mm.

Operating conditions:

• Installation temperature: from -5 ºC to +60 ºC.
• Maximum operating temperature: +60 ºC for surface mounting and +90 ºC for flush mounting.

Installation:

• Vertical installation.
• Direct clip-on mounting to the enclosure.
• Cover, frame, and socket can only be removed with a tool.
• Compatible with specific Simon 500 Cima flush boxes.

Safety:

• Extinction: +850 ºC / 30 seconds (GWFI according to IEC 60695-2-11).
• Electromagnetic immunity for VDM wiring via metal partition.

Maintenance:

To keep the product in good condition, it is recommended to clean it with a soft, dry cloth. Avoid using abrasive products or cleaners containing chlorine, as they may damage the material or finish.

This Simon 500 Cima kit is a highly practical solution when multiple power outlets are needed at a single point in the installation. Its robust design and easy assembly make it a popular choice in offices, workspaces, and areas where reliable electrical power is required.

It is one of those sets that greatly simplifies installation and keeps everything perfectly organized, which is always appreciated both in renovations and new installations.
