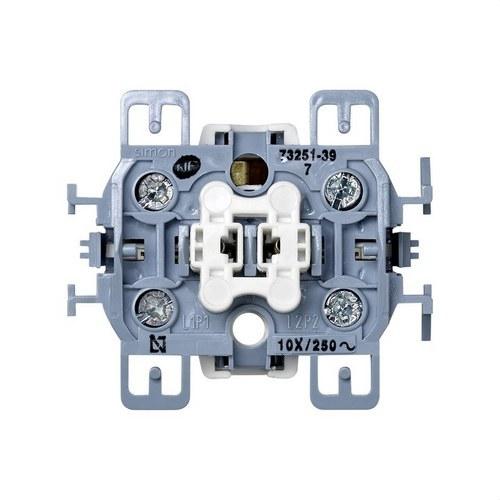

Simon 73 Screw Terminal Cross-Connection System

The crossover switch with screw terminal system from the Simon 73 Loft series is a mechanism designed for lighting control installations that require managing the same light point from three or more different locations. Thanks to its rocker operation and robust design, this mechanism offers a reliable, practical, and durable solution for both residential and professional electrical installations.

This model features a screw terminal connection system, a traditional and highly secure method that ensures a firm hold of the conductor. This feature makes the installer’s job easier and allows for a stable and long-lasting electrical connection.

The mechanism is designed to operate with a rated current of 10 AX and a voltage of 250 V~, making it a suitable solution for most conventional lighting circuits. Additionally, it supports cables with a cross-section between 1.5 and 2.5 mm², offering versatility for different types of installations.

Another advantage is the possibility of adding a signaling function by installing a signal support and a key with a viewer, allowing you to easily identify the status of the mechanism or its location in low-light environments.

The mechanism is made with metal components with halogen-free thermoplastic insulation, a material that provides high resistance to use, increased fire safety, and great durability over time.

This crossover switch belongs to the Simon 73 Loft series, a collection designed for surface installations that combines functionality, ease of installation, and a simple design that easily integrates into different environments.

Main features:

• Series: Simon 73 Loft
• Product type: Crossover switch
• Operation: Rocker
• Version: Single
• Rated current: 10 AX
• Voltage: 250 V~
• Supported cable cross-section: from 1.5 to 2.5 mm²
• Connection type: Screw terminal
• Required cable stripping: 13 mm
• Mechanism type: Pivoting
• Protection rating: IP20
• Operating temperature: from 5 ºC to 40 ºC
• Storage temperature range: from -25 ºC to 50 ºC
• Made with halogen-free thermoplastic insulation

Compatibility:

• Simon 73 Loft frames
• Simon 73 frames

Installation:

• Suitable for surface installation
• Connection via screw system
• Allows implementation of signaling function with support and key with viewer

Package contents:

• Crossover switch mechanism

Maintenance: To properly maintain the mechanism, it is recommended to clean with a soft, dry cloth. Do not use abrasive products or cleaners containing chlorine.

This is a very practical mechanism when you need to control lighting from several points in a room or hallway. Its easy installation and the reliability of the screw system make it a highly valued option among many installers.
