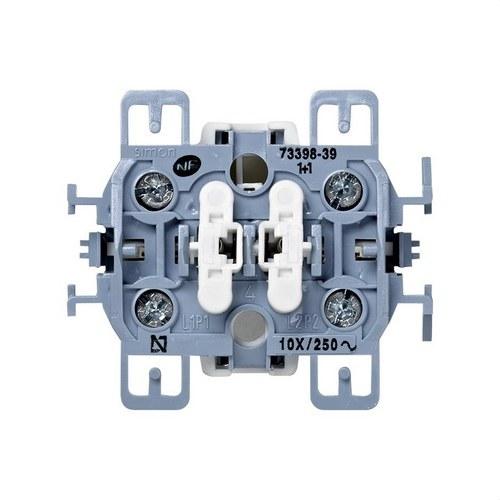

Set of 2 switches with screw terminal system Simon 73

The 2-switch group with screw terminal system Simon 73 from the Loft series is designed to offer a functional, safe, and adaptable solution for modern electrical installations. It allows independent control of two lighting circuits from a single mechanism, optimizing space and functionality in any environment.

This mechanism combines innovation, safety, and design, integrating seamlessly into residential and professional projects where a balance between aesthetics and technical performance is sought. Its design follows current decoration trends, ensuring a discreet and elegant integration.

It is made with metallic materials and halogen-free thermoplastic insulation, providing greater safety in case of fire by reducing flame propagation and minimizing the emission of toxic gases. This feature makes it a reliable option for installations where safety is a priority.

The mechanism supports a voltage of 250 V~ and a current of 10 AX, making it suitable for controlling standard lighting loads. Its pivoting operation system allows for comfortable, precise, and durable use, ideal for frequent operation.

It features a screw terminal system, ensuring a firm and stable wiring connection. It supports conductors with a cross-section of 1.5 to 2.5 mm² and requires a 13 mm strip length, guaranteeing proper fixation and electrical contact.

This switch group is compatible with Simon 73 and Simon 73 Loft frames, allowing for aesthetic and functional integration within the range, maintaining design consistency throughout the installation.

Its technical features allow it to operate in a temperature range of 5 to 40 ºC, with a storage capacity between -25 and 50 ºC, ensuring stable performance in different environmental conditions.

Main technical features:

• Series: Simon 73
• Type: 2-switch group
• Version: Double
• Current: 10 AX
• Rated voltage: 250 V~
• Operation type: Pivoting
• Material: Metal and halogen-free thermoplastic
• Compatibility: Simon 73 and 73 Loft frames
• Supported cable cross-section: 1.5 – 2.5 mm²
• Required strip length: 13 mm
• Protection rating: IP20
• Connection type: Screw terminal
• Installation: Surface-mounted
• Operating temperature: 5 – 40 ºC
• Storage temperature: -25 – 50 ºC
• Market: CE

Package contents:

• Mechanism

Notes:

• Independent control of two circuits
• Secure connection via screw system
• High resistance and durability
• Design adapted to current trends

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products
• Avoid cleaners containing chlorine

A robust and reliable solution for those seeking a mechanism that combines safety, durability, and a design that fits perfectly into any installation project.
