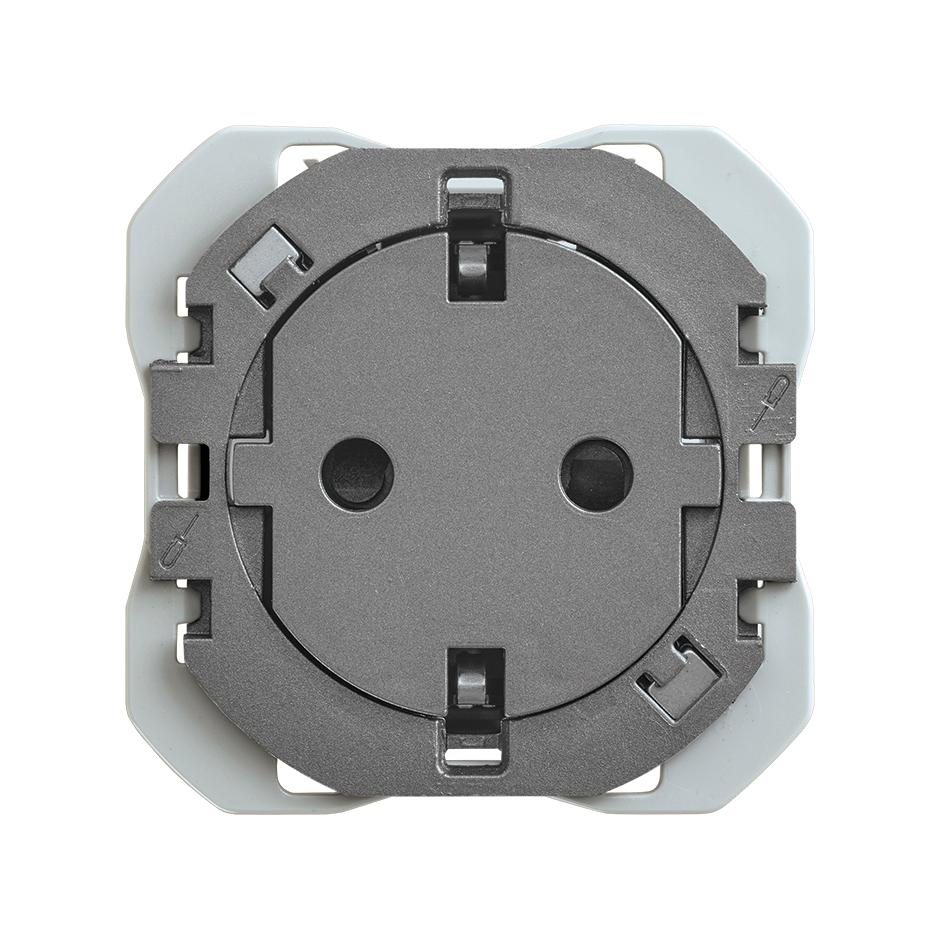

Schuko Socket Outlet Clean 16A 250V~ with Screw Terminal System Titanium Simon 270

The Schuko CLEAN Socket Outlet with screw terminal system titanium Simon 270 (ref. 20000434-096) redefines the traditional socket concept by integrating design, hygiene, and technology into a single mechanism. Its flat surface, completely flush with the wall, offers a clean and minimalist look that blends perfectly into any contemporary space.

The key innovation of the CLEAN range is its patented magnetic auto-cover system, which automatically moves the cover when the socket is not in use. This system prevents dirt from accumulating inside, makes cleaning easier, and extends the lifespan of the mechanism, providing a real improvement in everyday use.

With a titanium finish, this socket combines elegance and modernity. It is recommended to select a frame in the same color to achieve a uniform and sophisticated monochrome set. Compatible with CLEAN Schuko Simon 270 minimal aesthetic frames, maintaining a streamlined visual line.

Main technical features:

• Series: Simon 270 CLEAN
• Format: Schuko
• Number of outlets: 1
• Current: 16 A
• Voltage: 250 V~
• Frequency: 50 – 60 Hz
• Mechanism type: insertion
• Connection type: screw terminal
• Supported cable section: 1.5 – 2.5 mm²
• Required cable stripping: 14 mm
• Protection rating: IP20
• Operating temperature: 5 – 45 ºC
• Storage temperature: -25 – 50 ºC
• Certification: CE

Installation:

• Installable in universal flush-mounted box
• Installation type: suitable for flush mounting
• Installation orientation: horizontal
• Includes mechanism, cover, and instruction sheet

Made from high-quality plastic material, this socket offers resistance and durability under normal usage conditions. Its design not only meets aesthetic criteria but also improves hygiene and maintenance, making it an ideal solution for modern homes, offices, or spaces where attention to detail makes the difference.

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive products or cleaners containing chlorine

The CLEAN Simon 270 socket is the perfect combination of innovation and minimalist design, designed for those who seek more than just a simple outlet.

A small detail that transforms the wall into a clean, elegant, and functional element.
