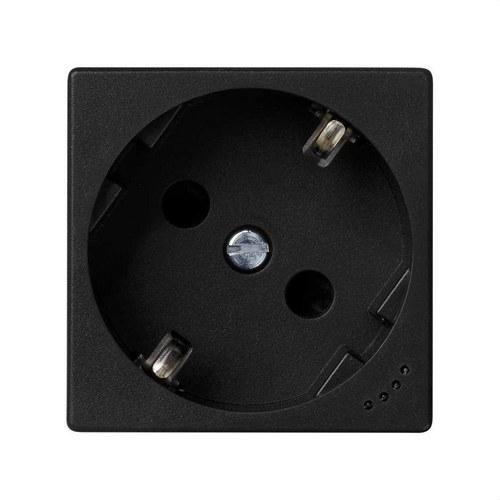

Schuko socket base with safety device, light indicator and screw terminal graphite Simon K45

The Schuko socket outlet with safety device, indicator light, and screw terminal Simon K45, reference KL01/14, is a solution designed to offer maximum safety, reliability, and functionality in both professional and domestic electrical installations. It is part of the Simon K45 series, a range developed to provide secure and versatile connection systems in various environments.

This socket features an integrated safety device that protects against accidental tampering, making it especially useful in spaces where a higher level of protection is required. Additionally, it includes an indicator light that allows you to quickly identify when the socket is powered, making usage and visual inspection of the installation easier.

The mechanism offers an electrical capacity of 16 A and 250 V~, making it a suitable solution for powering a wide variety of electrical devices. Its Schuko format ensures compatibility with standard plugs used in most European installations.

The socket outlet is manufactured with metal components with self-extinguishing, halogen-free thermoplastic insulation. This type of material enhances installation safety by preventing the spread of flames in case of fire and reducing smoke toxicity.

Thanks to its compact design of 45 x 45 x 39 mm, it easily integrates into different types of enclosures and installation systems, being compatible with both Simon K45 series solutions and Simon 500 Cima systems using the corresponding adapter.

Main features:

• Schuko socket outlet from the Simon K45 series.
• Integrated safety device.
• Operating indicator light.
• Graphite finish (RAL 7021).
• Electrical capacity of 16 A and 250 V~.
• Connection via screw terminal.
• Self-extinguishing and halogen-free materials.

Compatibility:

• Simon K45 enclosures for wall, floor, ceiling, or furniture installation.
• Simon 500 Cima enclosures using K45 to 500 Cima adapter (ref. 50012088-038).

Package contents:

• Schuko socket outlet.
• Decorative cover plate.
• Indicator light.

Dimensions:

• 45 x 45 x 39 mm.
• Depth: 39 mm.

Technical data:

• Format: Schuko.
• Rated current: 16 A.
• Rated voltage: 250 V~.
• Protection rating: IP20.
• Insulation resistance: >5 MΩ at 500 V.
• Dielectric strength: no breakdown or tracking at 2000 V, 50 Hz for 1 minute.
• Heat resistance: +125 ºC (according to IEC 60695-10-2 standard).

Connection and wiring:

• Admitted cable section: from 1.5 to 2.5 mm².
• Required cable stripping: 12 mm.
• Number of connections per terminal: 2 screw terminals (1 input / 1 output).
• Number of terminals: 3 inputs / outputs.
• Connection type: screw terminal.

Installation conditions:

• Temperature range during installation: from -5 ºC to 60 ºC.
• Vertical installation.
• Type of installation: suitable for surface and flush mounting.

Safety:

• Extinction: +850 ºC / 30 seconds (GWFI according to IEC 60695-10-2 standard).
• Self-extinguishing and halogen-free material.

Maintenance:

To keep the socket outlet in good condition, it is recommended to clean it with a soft, dry cloth. Do not use abrasive cloths or products containing chlorine, as they may damage the material’s finish.

The Simon K45 socket outlet is a highly practical option when a safe and reliable power outlet is needed in technical installations, offices, or workspaces. Its indicator light makes it easy to identify the power point, and its screw terminal connection system ensures a firm and durable installation.

It is one of those mechanisms that provide peace of mind in the installation, because you know it is well built and ready to withstand daily use without issues.
