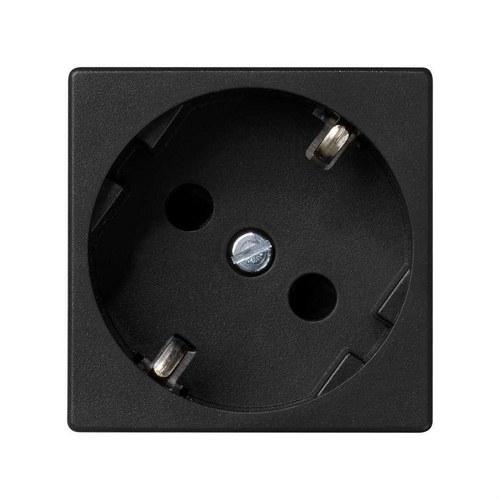

Schuko socket base with safety device and screw terminal graphite Simon K45

The Schuko socket outlet Simon K45 with safety device is designed to provide a safe, robust, and durable electrical connection in all types of professional and residential environments. It belongs to the renowned Simon K45 series, specially designed for technical installations on walls, floors, ceilings, and furniture.

This socket allows the connection of electrical devices up to 16 amperes and 250 V~, incorporating a safety device that increases protection against improper use. It operates by insertion, and the screw terminal connection system ensures a firm and stable fixation of the conductors.

With compact dimensions of 45 x 45 mm and a depth of 39 mm, it easily integrates into multiple installation solutions. It supports cables with a cross-section between 1.5 and 2.5 mm and requires a cable stripping of 12 mm, allowing for quick and precise assembly.

• Series: Simon K45
• Format: Schuko
• Rated current: 16 A
• Voltage: 250 V~
• Number of sockets: 1
• Mechanism type: insertion
• Terminal connection type: screw
• Integrated safety device

The socket is made with metal components and self-extinguishing thermoplastic insulation, halogen-free, providing a high level of safety. These materials prevent flame propagation in case of fire and reduce smoke toxicity, as well as offering excellent mechanical and thermal resistance.

• Heat resistance: +125 ºC (IEC 60695-10-2)
• Extinction: +850 ºC / 30 s (GWFI)
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Insulation resistance: >5 MΩ at 500 V
• Protection rating: IP20

It is compatible with Simon K45 enclosures and also with Simon 500 Cima using the specific adapter ref. 50012088-038. It allows both surface and flush mounting, in a vertical orientation, adapting to multiple technical configurations.

• RAL: 7021
• Number of terminals: 3 entries / exits
• Terminal connections: 2 ports (input and output)
• Installation temperature range: -5 to 60 ºC

Maintenance is simple and quick, requiring only cleaning the surface with a soft, dry cloth. The use of abrasive products or chlorine-based cleaners is not recommended, as they may damage the material.

A professional, safe, and durable socket outlet, designed for demanding installations where electrical reliability is key.
