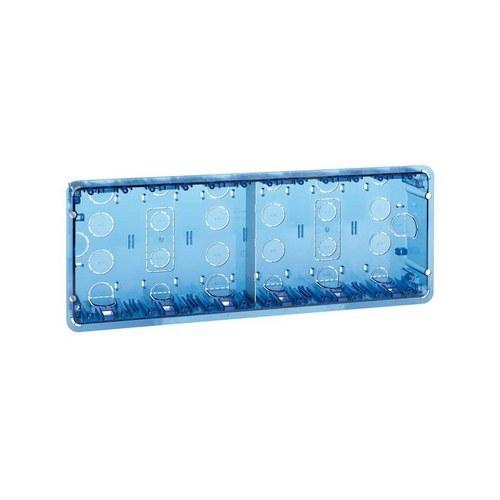

Recessed Wall Box for 6 Double Elements Simon 500 Cima

The Simon 500 Cima flush-mounted wall box for 6 double elements combines robust design and advanced functionality, ideal for installations in homes, offices, or commercial spaces. It includes a flip cover, two double Schuko sockets, and two RJ45 plates, allowing for versatile and secure mounting of all types of electrical mechanisms.

Made from halogen-free, self-extinguishing thermoplastic material and coated metal components, this box ensures no flame propagation and reduces smoke toxicity in case of fire. It is compatible with Simon 500 Cima mechanisms and Simon 27 Play/Simon K45 via a specific adapter, ensuring maximum flexibility during installation.

Installation is quick and easy with the 1 click® insertion system and adjustable claws. The box includes guides that can be used as a template to mark the perimeter during installation. Its dimensions are 390 x 143 x 50 mm and it features a cavity space of 388 x 141 mm, compatible with 12 modules, for neat organization of all wiring and mechanisms.

Main features:

• Version: 6 double elements
• Compatibility: Simon 500 Cima, Simon 27 Play/Simon K45 via adapter
• Dimensions: 390 x 143 x 50 mm
• Depth: 50 mm
• Module cavity: 388 x 141 mm
• Number of modules: 12
• Material: Self-extinguishing thermoplastic + metal components
• Finish: Safe and durable, halogen-free
• Maximum current supported: 16 A
• Maximum voltage supported: 250 V
• Protection: IP4X, IK7 rating
• Operating temperature: -5 to +90 ºC
• Extinction temperature: +850 ºC / 30 s

Installation and maintenance:

• Installation type: Flush-mounted in wall, vertical
• Fixing type: Claws included in the enclosure
• Claw reach: 4 to 30 mm
• Component removal: Only with tools
• Maintenance: Clean with a soft, dry cloth; avoid abrasive and chlorine-based products

Package contents:

• Flush-mounted wall box
• Protective cover for the box
• Metal partition
• Film to cover pre-cut sections of the box

This Simon 500 Cima wall box ensures a safe and organized installation, perfect for those seeking durable, high-performance solutions for electrical installations.
