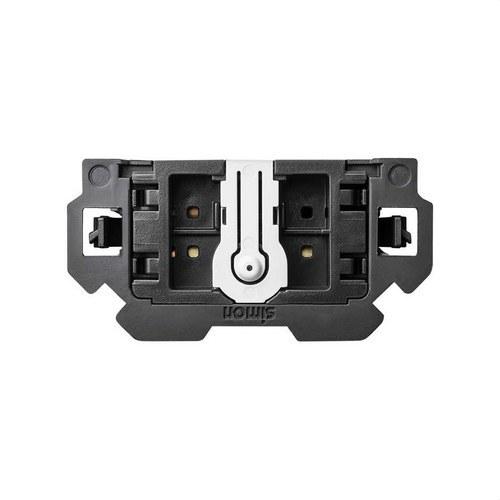

Push Button Switch 10 AX 250V with 1click® Terminal System Simon 100

The Simon 100 push switch with 1Click® terminal system represents an innovative and efficient solution for modern electrical installations. Designed to offer maximum convenience for both the installer and the end user, this mechanism allows for quick, safe connections without the need for tools or pre-stripping the wire.

This half-element device is rated for 10 AX current and 250 V~ voltage, making it a reliable choice for lighting circuit control and other common electrical applications. Its pivoting push-button operation provides smooth, intuitive, and precise interaction.

Part of the revolutionary Simon 100 series, this mechanism is included in a collection created to celebrate the brand’s centenary. The series is characterized by its focus on user experience, offering mechanisms that facilitate daily interaction and deliver a modern aesthetic that integrates perfectly into contemporary spaces.

Its construction is based on metal components with halogen-free thermoplastic insulation, providing greater safety in case of fire by preventing flame spread and reducing toxic smoke emissions.

Main features:

• Half-element push switch
• Rated current: 10 AX
• Operating voltage: 250 V~
• 1Click® quick connection system by cutting
• Tool-free and wire-stripping-free connection
• Push-button operation with key return
• Mechanism type: Push | Pivoting
• Single version
• IP20 protection

Technical installation data:

• Accepted cable section: 1.5 to 2.5 mm²
• Operating temperature: 0 to 40 ºC
• Storage temperature range: -25 to 75 ºC
• Installable in universal flush mounting box
• Installation orientation: horizontal
• Installation type: flush-mounted
• Compatible with Simon 100 frames

Package contents:

• Mechanism
• Installation instructions

Installation is especially fast thanks to the 1Click® connection system, which allows wiring through a simple automatic cutting system, ensuring a firm and secure contact.

If you are looking for a modern, reliable, and easy-to-install mechanism, this push switch from the Simon 100 series is an excellent choice. It’s one of those mechanisms that simply works once installed, with a pleasant touch and surprisingly quick installation that any professional will appreciate.
