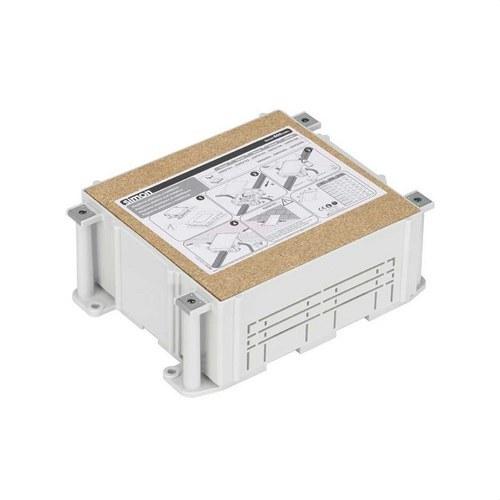

Plastic Bucket for Adjustable Floor Box with 4 Elements for Pavement Floor Installation Simon 500 Cima

The Simon 500 Cima plastic tray for adjustable floor box with 4 modules in grey finish is designed for flush installation in flooring, offering discreet and elegant integration in any professional or residential environment. Made from halogen-free thermoplastic, it protects against the spread of flames and toxic smoke, ensuring safety in case of fire.

With dimensions of 220 x 172 x 80 mm and capable of withstanding temperatures up to 90 ºC, this tray combines functionality and durability, providing a safe and accessible space for housing electrical mechanisms.

Technical specifications:

• Compatibility: requires 4-module floor box for flooring (ref.52050002-035 in grey or ref.52050002-038 in graphite)
• Finish: grey
• Material: halogen-free thermoplastic
• Version: 4 modules
• Dimensions: 220 x 172 x 80 mm
• Adjustment depth: 80 - 110 mm
• IK rating: 8
• Protection: IP4X, heat resistance +125 ºC, glow wire test +850 ºC / 30 s (GWFI)
• Conduit entries: 2 lateral, dimensions 100 x 20 mm to 130 x 40 mm
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Number of lateral entries: 4
• Installation: horizontal or vertical, specially designed for flooring
• Fixing: by screws (minimum 2 screws, 4 recommended)
• Package contents: tray, protective cover, and installation manual
• Maintenance: clean with a soft, dry cloth; avoid abrasive cleaners with chlorine

This Simon 500 Cima tray is the perfect solution for offices, workspaces, or rooms where safety, functionality, and discreet aesthetics are required, ensuring a professional and long-lasting installation.
