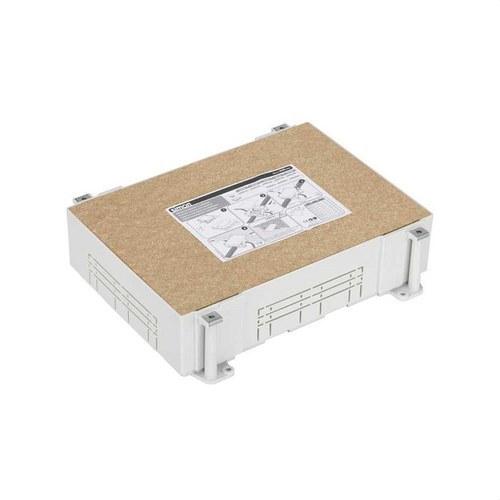

Plastic Bucket for Adjustable Floor Box with 12 Elements for Installation in Pavement Floor Simon 500 Cima

The Plastic Tray for Adjustable Floor Box Simon 500 Cima is designed for flush installations in flooring, compatible with 12-module floor boxes in grey or graphite finish. Made from halogen-free plastic and thermoplastic, it ensures no flame propagation and offers low toxicity in case of smoke. Compliant with UNE-EN 60.670-23 standards, it guarantees maximum safety and durability.

With dimensions of 259 x 312 x 80 mm and an adjustable range from 80 to 110 mm, this tray withstands installation temperatures between -5 and 60 °C and up to +90 °C in operation. Its IK8 rating and IP4X protection provide resistance against impacts and dust, making it a reliable solution for professional installations in offices, homes, or commercial premises.

Main features:

• Compatibility: Simon 500 Cima 12-module floor boxes (refs. 52050006-035 grey / 52050006-038 graphite)
• Finish: Grey
• Material: Halogen-free plastic and thermoplastic
• Dimensions: 259 x 312 x 80 mm
• Adjustable depth: 80 - 110 mm
• Lateral entries: 8
• Pre-punched holes Ø30 mm: 4
• Number of modules: 12
• IP rating: IP4X
• IK rating: 8
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Heat resistance: up to 125 °C
• Maximum working temperature: +90 °C
• Extinguishing: +850 °C / 30 s (GWFI according to IEC 60695-2-11)
• Installation: horizontal or vertical in flooring
• Fixing: with screws (minimum 2, recommended 4)
• Maintenance: clean with a soft, dry cloth; do not use abrasive or chlorine-based products

This accessory is ideal for completing floor installations with a clean, safe, and professional finish, ensuring perfect integration with Simon 500 Cima boxes and easy maintenance.
