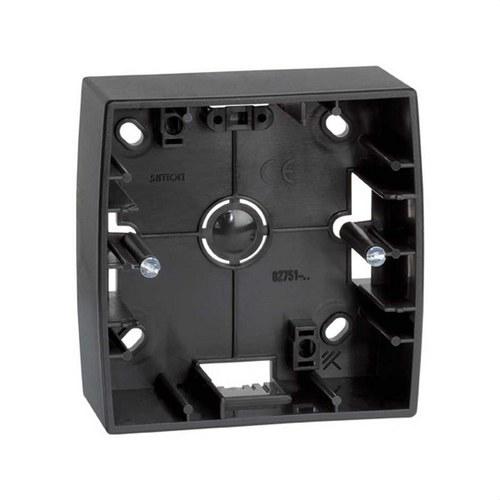

Low Surface Box for 1 Graphite Element Simon 82

The low-profile surface box for 1 element Simon 82 in graphite finish is a practical and stylish solution for surface electrical installations where a flush-mounted box is not available. Specifically designed to integrate with the renowned Simon 82 series, it offers the perfect balance between functionality, contemporary design, and ease of installation.

Its graphite color finish adds a modern and sophisticated touch, especially recommended for pairing with switches and covers of the same finish, achieving a uniform and refined look throughout the mechanism. Thanks to its clean and minimalist design, it easily adapts to both residential environments and commercial or professional spaces.

Made from high-quality thermoplastic material, this box ensures excellent resistance to daily use and long-lasting durability. It is designed for surface installations and can be mounted both horizontally and vertically, offering greater flexibility during assembly.

• Compatible with Simon 75, Simon 77, and Simon 82 mechanisms
• Version for 1 element
• Surface installation
• Horizontal and vertical installation orientation
• Low-profile design for discreet integration

Its compact dimensions of 89 x 89 x 27 mm allow for a neat and unobtrusive installation on the wall. However, if installing power outlets, the manufacturer recommends using a high-profile box to ensure safety and proper accommodation of the mechanism.

• Dimensions: 89 x 89 x 27 mm
• Depth: 27 mm
• Material: Thermoplastic plastic
• Finish: Graphite
• Protection rating: IP20
• Operating temperature: 5 to 40 ºC
• Storage range: -25 to 50 ºC

Maintenance is simple: just clean the surface with a soft, dry cloth or one slightly dampened with water and neutral soap, always avoiding abrasive products or those containing chlorine to preserve the finish.

The Simon 82 series stands out for its simplicity and balanced design, offering a wide range of finishes and textures that allow you to customize any electrical installation with endless combinations.

A reliable, elegant, and well-finished solution for those seeking professional quality and refined aesthetics in their surface electrical installations.
