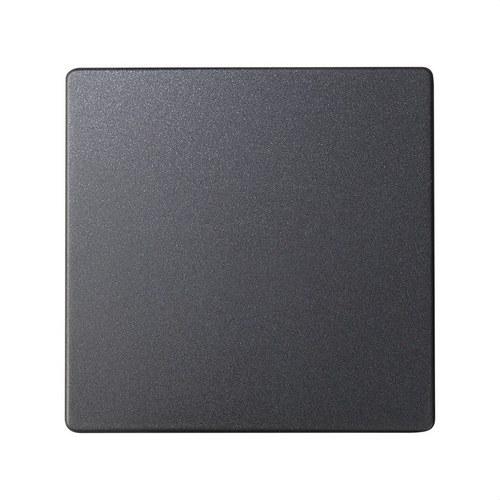

Individual Key for Control Mechanisms Graphite Simon 82

The single key for control mechanisms from the Simon 82 series in graphite finish is an operating element designed to offer the perfect balance between functionality, aesthetics, and durability. Its design follows current interior design trends, bringing a modern and elegant style to any type of installation.

Part of the Simon 82 series, this key is characterized by its minimalist and balanced design, available in multiple finishes to suit different decorative styles. The graphite finish adds a sophisticated and contemporary touch, ideal for spaces seeking a refined and up-to-date look.

It is designed to be compatible with Simon 75 and Simon 77 mechanisms, allowing integration into both existing and new installations, ensuring correct operation and easy replacement or upgrading of components.

Manufactured from thermoplastic material, this key offers high resistance to daily use, maintaining its aesthetic and functional properties over time. This material complies with current regulations, guaranteeing safety and reliability in use.

It features standard dimensions of 55 x 55 mm, making it easy to integrate into multiple installation configurations. Additionally, its design allows for both flush-mounted and surface installation, offering versatility for different types of projects.

The key is suitable for operation within a temperature range of 5 to 40 ºC, and can be stored between -25 and 50 ºC, ensuring optimal performance in various environmental conditions.

Maintenance is simple, requiring only cleaning with a soft, dry cloth. If necessary, a cloth slightly dampened with soapy water can be used, always avoiding abrasive or chlorine-based products, as these could damage the finish.

Main technical features:

• Series: Simon 82
• Type: Single key
• Color: Graphite
• Compatibility: Simon 75 and 77 mechanisms
• Material: Thermoplastic
• Dimensions: 55 x 55 mm
• Number of elements: 1
• Version: Single
• Protection rating: IP21
• Installation: Flush-mounted and surface
• Installation orientation: Horizontal and vertical
• Operating temperature: 5 – 40 ºC
• Storage temperature: -25 – 50 ºC
• Available market: CE

Package contents:

• Single key
• Mounting support

Notes:

• Available in various finishes
• Recommended to combine with a frame of the same color
• Modern and functional design
• High durability and resistance

Maintenance:

• Clean with a soft, dry cloth
• Use mild soapy water if necessary
• Do not use chlorine-based or abrasive products

A simple yet elegant solution that fits perfectly into any installation, providing a clean and professional finish with no complications.
