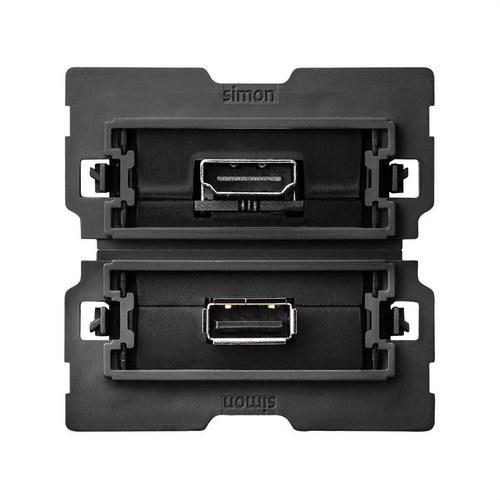

HDMI Connector V1.4 + USB 2.0 Type A Connector Simon 100

The HDMI V1.4 Connector + USB 2.0 Type A Connector Simon 100 (ref. 10000563-039) is a practical and stylish multimedia solution for integrating audio, video, and data connections in any room. Designed as part of the innovative Simon 100 range, it combines technology, minimalist aesthetics, and easy installation.

This mechanism features a HDMI version 1.4 port and a USB 2.0 Type A connector for data transfer, offering a dual solution in a single unit. It is ideal for living rooms, offices, meeting rooms, or any space where a direct and organized connection of multimedia devices is required.

Installation is done using an insertion screw and female-to-female connection, allowing for simple and secure mounting. Additionally, it is suitable for flush mounting in a universal box, ensuring a clean wall integration and reducing installation time thanks to the series' signature one-click system.

Made with metal components with halogen-free thermoplastic insulation, it guarantees safety, durability, and resistance under normal usage conditions. Its design is based on clean lines and a refined aesthetic, making each mechanism both a functional and decorative element.

Main technical features:

• Series: Simon 100
• Mechanism type: multimedia socket
• Connector type: HDMI + USB
• HDMI version: 1.4
• USB version: 2.0 (data transfer)
• Format: HDMI and USB
• Connection: female-to-female
• Number of elements: 1
• Version: double
• Protection rating: IP20
• Operating temperature: 5 – 40 ºC
• Storage temperature: -25 – 50 ºC
• Certification: CE

Installation:

• Installable in universal flush mounting box
• Installation type: suitable for flush mounting
• Installation orientation: horizontal or vertical
• Mounting with insertion screw
• Quick installation with one-click system

The Simon 100 range is known for its focus on usability and aesthetic integration, offering mechanisms that not only fulfill a technical function but also enhance the design of any space. This dual connector allows you to centralize multimedia connections in an organized and professional manner.

A practical and elegant solution to keep your connections always accessible and perfectly integrated into the wall.
