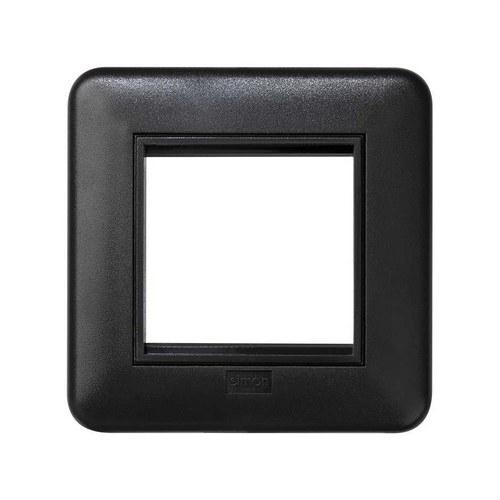

Frame and mount for surface and flush wall box for 1 graphite element Simon K45

The Simon K45 frame with mounting bracket in graphite finish (RAL 7021) is a versatile and secure solution designed for both surface and flush electrical installations. Designed to hold one element, this set offers a clean and professional integration in all types of environments.

Manufactured from halogen-free thermoplastic material, it ensures a high level of safety by preventing flame propagation in case of fire and minimizing the emission of toxic fumes. This makes it an ideal choice for installations where safety is a priority, such as offices, commercial premises, or homes.

The product includes a mounting bracket with slots that allows direct attachment to universal flush-mount boxes, enabling quick and hassle-free installation. Its clip-on system eliminates the need for tools when mounting the frame, optimizing installation time.

Thanks to its compact design and dimensions of 80 x 80 x 9 mm, it provides a discreet and aesthetic solution while maintaining excellent functionality and durability.

Main technical features:

• Series: Simon K45
• Type: Frame with mounting bracket
• Capacity: 1 element
• Finish: Graphite (RAL 7021)
• Material: Halogen-free thermoplastic
• Dimensions: 80 x 80 x 9 mm
• Opening size: 75 x 70 mm
• Protection rating: IP4X
• Heat resistance: up to +70 ºC (IEC 60670-1)
• Maximum working temperature: +90 ºC
• Installation temperature range: -5 to +60 ºC
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Insulation resistance: >5 MΩ at 500 V

Compatibility:

• Simon K45 functions and mechanisms
• Installable in universal flush-mount boxes

Installation:

• Suitable for surface and flush mounting
• Direct clip-on attachment to the bracket
• Installation in horizontal or vertical position
• Removal and disassembly with a tool

Safety:

• Self-extinguishing material (GWFI +650 ºC / 30 s)
• Halogen-free

Box contents:

• Frame
• Mounting bracket with slots

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive or chlorine-based products

A practical and reliable solution to complete your installation with a professional finish, designed to make the installer’s job easier and ensure a long-lasting result.
