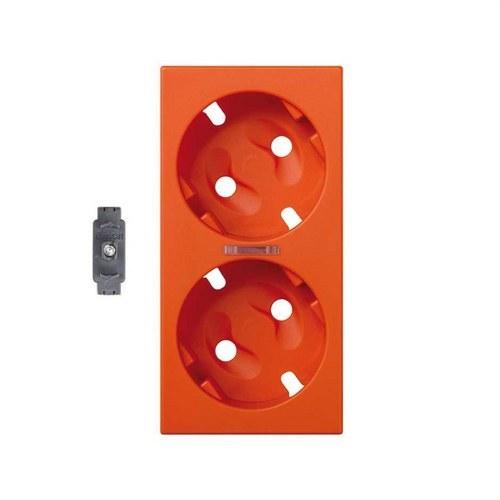

Cover for double schuko socket base mechanism with viewer and orange indicator LED Simon 500 Cima

The cover for double Schuko socket mechanism with indicator window and LED Simon 500 Cima, reference 50011041-072, is a component designed to complete the installation of double socket outlets within the modular system of the Simon 500 Cima series. Its functional design incorporates a double indicator window and an LED indicator, allowing for clear visual identification of the connection point.

This cover is specially designed to be used together with a double Schuko socket base from the same series, forming a safe, robust, and perfectly integrated set for professional electrical installations. Its orange RAL 2009 finish makes it easy to identify the connection point, which is especially useful in technical installations, workspaces, or environments where it is necessary to differentiate circuits or specific uses.

The product is made of halogen-free thermoplastic, a material that significantly enhances safety in electrical installations. This type of material prevents the spread of flames in case of fire and reduces the toxicity of generated smoke, contributing to greater protection in enclosed spaces.

Thanks to its modular design of 2 elements and 2 modules, this cover easily integrates into the installation solutions of the Simon 500 Cima range, a series widely used in electrical installations in offices, public buildings, commercial premises, and residential environments.

The direct clip-on system to the double socket base allows for quick and easy installation without the need for tools, making assembly and subsequent maintenance simpler.

Main features:

• Cover for double Schuko socket base.
• Designed for the Simon 500 Cima series.
• Incorporates double indicator window and LED indicator.
• Orange color for easy identification of the connection point.
• Tool-free direct clip-on installation.
• Made of halogen-free thermoplastic.
• Suitable for flush or surface mounting.

Compatibility:

• Simon 500 Cima double Schuko socket bases.

Package contents:

• Cover for double Schuko socket mechanism.
• Integrated indicator window.
• LED indicator.
• Installation manual.

Dimensions and format:

• Dimensions: 100 x 50 x 9 mm.
• Number of modules: 2.
• Version: 2 elements.
• Format: Schuko.
• Depth: 9 mm.

Technical data:

• Protection rating: IP20.
• LED consumption indicator: 0.55 mA.
• Certification: CE.
• Standards: UNE 20.315 / EN 60.998-2-3.
• Maximum operating temperature: +60 ºC for surface mounting and +90 ºC for flush mounting.
• Installation temperature range: from -5 ºC to +60 ºC.

Installation:

• Type of installation: suitable for flush or surface mounting.
• Installation orientation: vertical.
• Direct clip-on fixation to the double socket base.
• No tools required for assembly.

Maintenance:

To keep the cover in perfect condition, it is recommended to clean it with a soft, dry cloth. Do not use abrasive cleaners or products containing chlorine, as they may damage the material or finish.

This socket cover from the Simon 500 Cima series is a functional and safe solution for completing double Schuko socket installations, providing visibility, identification, and a professional finish in any electrical environment.

It is one of those small details that make a difference in a well-done installation: easy to assemble, durable, and designed for everyday use.
