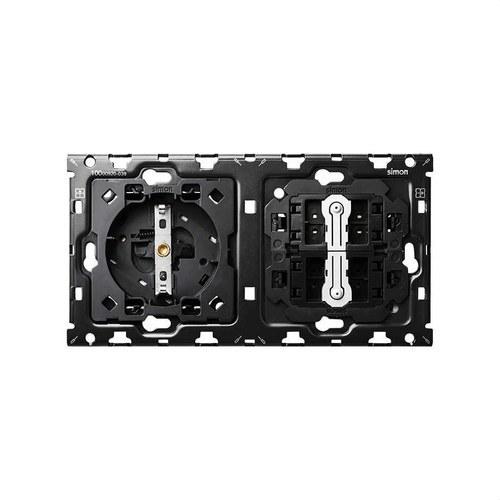

Back kit for 2 elements with 1 schuko socket base and 2 push-button switches Simon 100

The Simon 100 Back Kit for 2 Elements combines functionality, safety, and speed in a single set, making it ideal for modern installations in homes and offices. It includes a Schuko socket and two push-button switches, all designed with 1Click® quick connection terminals that allow you to install the wires with a single click, simplifying assembly and saving time.

Thanks to its innovative design, wiring can be done from the same side of the mechanism, allowing for individual or simultaneous connection of each wire, optimizing installation efficiency. The separation of input and output wires into different holes ensures safe and reliable operation.

The large levers make handling easy, fitting comfortably to your finger and ensuring precise installation. The contact incorporates a blade that removes the cable’s insulation layer until it reaches the active part, ensuring optimal electrical performance.

Main technical features:

• Compatibility: Simon 100 Front Kit
• Schuko socket without screws 1Click®
• Push-button switches with key return
• Current: 10 AX
• Voltage: 250 V~
• Supported cable section: 2.5 mm²
• Number of elements: 2
• Operating temperature: 5 - 40 ºC
• Storage temperature range: -25 - 50 ºC
• Mechanism type: Push | Pivoting | Insertion
• Installation: suitable for flush mounting, horizontal orientation
• Terminal connection: by cutting (1Click®)

Package contents:

• Mechanisms with frame for 2 elements (Schuko socket + 2 switches)

Maintenance:

• Clean with a soft, dry cloth
• Do not use abrasive cleaners or those containing chlorine

With the Simon 100 kit, you’ll have a quick, safe, and professional installation, combining socket and switches in one efficient and elegant set.
