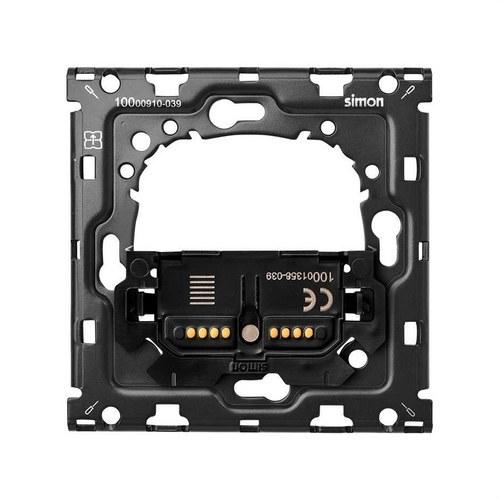

Back kit for 1 element with 1 shutter switch Simon 100

The back kit for 1 element with shutter switch from the Simon 100 series allows you to control your shutters easily and safely with a simple gesture. Designed for installation in flush-mounted boxes, this mechanism offers intuitive operation through a gentle press or finger slide, ensuring maximum comfort at home or in the office.

This back kit is compatible with Simon 100 front kits and allows for full integration within the series, maintaining aesthetic and functional uniformity in your installation. Its modular design makes installation and maintenance easy, adapting to different configurations and electrical installation needs.

Main features:

• Version: Modular
• Number of possible elements: 1 element
• Type of mechanism: Push | Pivoting
• Voltage: 250 V~
• Supported cable section: 2.5 mm²
• Operating temperature: 5 - 40 ºC
• Storage temperature range: -25 - 50 ºC
• Installable in flush-mounted box: Universal
• Installation orientation: Horizontal
• Terminal connection type: Screw
• Compatibility: Simon 100 front kit

Package contents:

• Mechanism
• Installation instructions

With this back kit, you will enjoy a simple, quick, and safe installation, backed by the quality guarantee of Simon 100. Keep control of your shutters efficiently and effortlessly.
