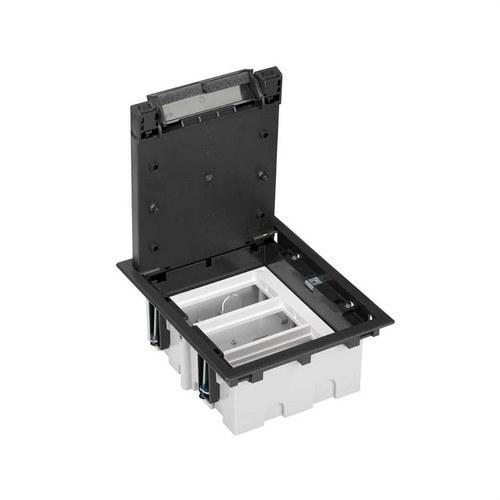

Adjustable Floor Box for 6 Elements in Raised Floor Installation Graphite Simon 500 Cima

The Simon 500 Cima Adjustable Floor Box for 6 modules in graphite finish is designed for raised floors, offering a safe, functional, and aesthetically discreet solution for installing electrical mechanisms. Made with metal components and halogen-free thermoplastic insulation, it ensures flame retardancy and low toxicity in case of fire, complying with current regulations.

With dimensions of 226 x 187 x 92 mm and an adjustable depth range of 92 to 120 mm, this box allows optimal access to wiring and adapts to different raised floor configurations. It is compatible with Simon 500 CIMA mechanisms and Simon 27 Play/Simon K45 via adapter.

Technical Features:

• Finish: graphite
• Version: 6 modules
• IK rating: 8
• IP: IP4X
• Box dimensions: 226 x 187 x 92 mm
• Adjustable depth: 92 - 120 mm
• Opening size: 170 x 210 mm
• Frame elevation: 3.2 mm
• Maximum load capacity: 1700 kg
• Operating temperature: up to +90 ºC
• Heat resistance: +125 ºC (IEC 60695-10-2)
• Glow wire test: +850 ºC / 30 s (GWFI IEC 60695-2-11)
• Lateral entries: 12, with foam protection against dust and small objects
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Electromagnetic immunity ensured by metal partition
• Installation: horizontal or vertical, using supplied claws
• Removal and disassembly: only with tools
• Package contents: floor box, metal partition, grounding cable, screws, and installation manual
• Maintenance: clean with a soft, dry cloth, avoiding abrasive products containing chlorine

After installation, this box can be combined with the flush-mount decorative cover if the same floor covering is not used, achieving perfect and elegant integration in any technical or professional environment.
