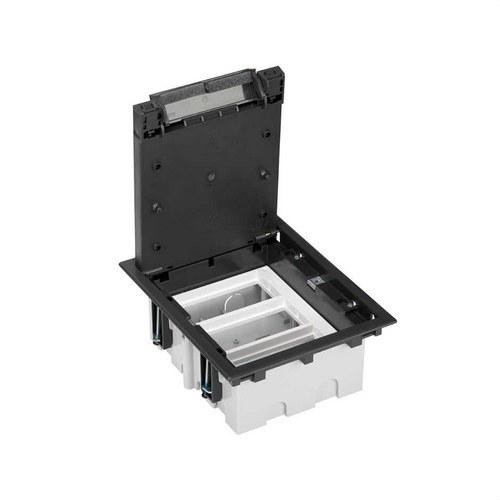

Adjustable Floor Box for 6 Elements in Graphite Pavement Floor Installation Simon 500 Cima

The Simon 500 Cima adjustable floor box for 6 modules in graphite finish is the ideal solution for installations in raised floors and technical flooring, combining versatility, safety, and modern design. Its innovative system allows you to adapt and customize the electrical distribution quickly and efficiently, without the need for specialized knowledge, integrating seamlessly into any environment.

Made from halogen-free thermoplastic materials, it ensures no flame propagation and low toxicity in case of fire. The box withstands installation temperatures from -5 ºC to +60 ºC and maximum operating temperatures up to +90 ºC. To complete the installation, it must be combined with the plastic tray (ref. 52052103-035), and optionally, the flush decorative cover (ref. 52053103-038) can be added if the floor covering does not match.

Key technical features:

• Compatible with Simon 500 CIMA and Simon 27 Play / Simon K45 mechanisms via adapter
• IK rating: 8
• Number of modules: 6
• Dimensions: 226 x 187 x 76 mm
• Adjustable depth: 76 mm – 100 mm
• Maximum load capacity: 1700 kg
• Protection against dust and small objects: with protective foam
• IP4X: resistance to solid object ingress
• Heat resistance: +125 ºC (IEC 60695-10-2)
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown
• Electromagnetic immunity: ensured by integrated metal partition
• Number of side entries: 12
• Flip cover dimensions: 199 x 160 x 15 mm
• Internal space with maximum/minimum adjustment: 38 mm / 13 mm
• Flush mounting dimensions: 168 x 206 mm (metal tray) / 220 x 227 mm (plastic tray)
• Fire resistance: +850 ºC / 30 seconds (GWFI)
• Installation: horizontal or vertical in raised floor or technical flooring
• Fixing type: with supplied claws on the floor tray

The box includes a metal partition, earth cable, screws, and installation manual for quick and safe installation. Maintenance is simple: clean with a soft, dry cloth, avoiding abrasive or chlorine-based products.

This product is ideal for those seeking maximum safety, elegant design, and efficiency in electrical distribution for their flooring, with the trusted quality of Simon 500 Cima.
