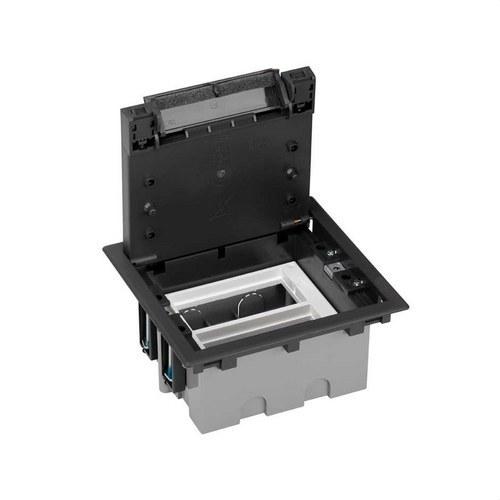

Adjustable Floor Box for 4 Elements in Graphite Pavement Floor Installation Simon 500 Cima

The adjustable floor box for 4 elements from the Simon 500 Cima series is a professional solution designed to integrate electrical, voice, data, and multimedia connections directly into the flooring. Its robust and functional design provides accessible connection points without compromising the aesthetics or safety of the installation.

This type of solution is especially useful in spaces where wiring distribution is carried out through the floor, such as offices, training rooms, libraries, museums, hotels, or workspaces. Thanks to its adjustable design and structural strength, it enables discreet and safe installations that make access to connections easy whenever needed.

The box belongs to the Simon 500 Cima range, a series renowned for its quality, reliability, and compatibility with structured cabling installations. It is designed to house up to 4 elements and is compatible with Simon 500 Cima mechanisms and, with specific adapters, with mechanisms from the Simon 27 Play and Simon K45 series.

Manufactured from high-resistance plastic with a graphite finish (RAL 7021), this box has undergone multiple tests to ensure compliance with the most demanding international standards. Its structure supports heavy loads of up to 1400 kg, making it suitable for high-traffic areas.

Additionally, it features protection against dust and small objects with protective foam, helping to keep the installation in good condition and prolonging the lifespan of the installed mechanisms.

Main features:

• Series: Simon 500 Cima
• Product type: Adjustable floor box
• Capacity: 4 elements
• Compatibility: Simon 500 Cima mechanisms and Simon 27 Play / Simon K45 mechanisms with adapters
• Finish: Graphite
• RAL color: 7021
• Material: High-resistance plastic
• Dimensions: 171 x 187 x 76 mm
• Depth: 76 mm
• Adjustable depth: from 76 mm to 100 mm
• Installation opening size: 170 x 155 mm
• Flip cover dimensions: 145 x 161 x 15 mm
• Recessed tray dimensions: 220 x 172.2 mm
• Frame elevation from floor level: 3.2 mm
• Maximum internal clearance: 38 mm
• Minimum internal clearance: 13 mm

Technical specifications:

• Impact rating: IK08
• Protection grade: IP4X
• Heat resistance: up to +125 ºC (IEC 60695-10-2)
• Maximum working temperature: +90 ºC
• Installation temperature range: -5 ºC to +60 ºC
• Insulation resistance: >5 MΩ at 500 V
• Dielectric strength: 2000 V at 50 Hz for 1 minute without breakdown or tracking
• Extinguishing: +850 ºC / 30 seconds (GWFI according to IEC 60695-2-11)
• Maximum supported load: 1400 kg

Configuration and cable entries:

• 8 side cable entries
• 4 holes for clamps
• 4 pre-punched holes Ø20 mm
• 4 pre-punched holes Ø26 mm
• Metal partition included to ensure electromagnetic immunity for VDM wiring

Package contents:

• Floor box
• Metal partition
• Grounding cable
• Screws
• Installation manual

Installation:

• Especially designed for installation in floor pavement
• Also suitable for installation in raised floors
• Fixing with claws on the pavement tray
• Claw reach: between 14 and 54 mm
• Installation orientation: horizontal or vertical
• Cover with 2 opening positions

Notes:

• To complete the installation, it must be combined with the plastic tray reference 52052102-035.
• Optionally, the flush decorative cover reference 52053102-038 can be used when the same floor covering is not installed.

Maintenance:

• Clean with a soft, dry cloth.
• Do not use abrasive products or cleaners containing chlorine.

The Simon 500 Cima series floor boxes are designed to provide discreet and efficient solutions in modern installations where connectivity is essential. Their robustness, load capacity, and versatility make them an ideal choice for professional projects.

A highly practical solution when you need to bring connections to the center of a room without visible conduits, keeping the space clean, organized, and fully functional.
