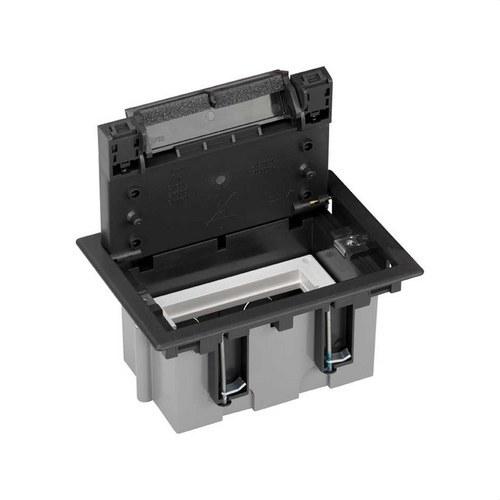

Adjustable Floor Box for 2 Elements in Raised Floor Installation Graphite Simon 500 Cima

The Simon 500 Cima adjustable floor box is designed for raised floor installations, offering a functional and aesthetic solution for two modules. Its graphite finish provides a modern and versatile design, suitable for any type of room.

Manufactured with metal components and halogen-free thermoplastic, it ensures safety against flame propagation and low toxicity in case of fire. It withstands temperatures from -5 ºC to +60 ºC during installation and up to +90 ºC as the maximum operating temperature.

The box can optionally be combined with the flush decorative cover for perfect integration with the floor covering. It is compatible with Simon 500 Cima mechanisms and Simon 27 Play/Simon K45 via a specific adapter.

Technical and functional features:

• Compatibility: Simon 500 CIMA and Simon 27 Play/Simon K45 with adapter
• Finish: Graphite (RAL 7021)
• Version: 2 modules
• Dimensions: 132 x 187 x 92 mm
• Adjustable depth: 92 - 120 mm
• Flip cover dimensions: 105 x 161 x 15 mm
• Frame elevation from floor: 3.2 mm
• Internal clearance: minimum 29 mm, maximum 57 mm
• Maximum load capacity: 800 kg
• Protection: IP4X, protective foam against dust and small objects
• IK rating: 8
• Heat resistance: +125 ºC (IEC 60695-10-2)
• Dielectric strength: 2000 V at 50 Hz for 1 minute
• Electromagnetic immunity: via included metal partition
• Number of side entries: 8
• Number of lid opening positions: 2
• Installation: horizontal or vertical, fixing with supplied claws
• Maintenance: clean with a soft, dry cloth, avoid chlorine-based abrasive products

This model combines safety, robustness, and elegant design, making it ideal for raised floors in professional and residential environments where resistance, functionality, and integrated aesthetics are required.
